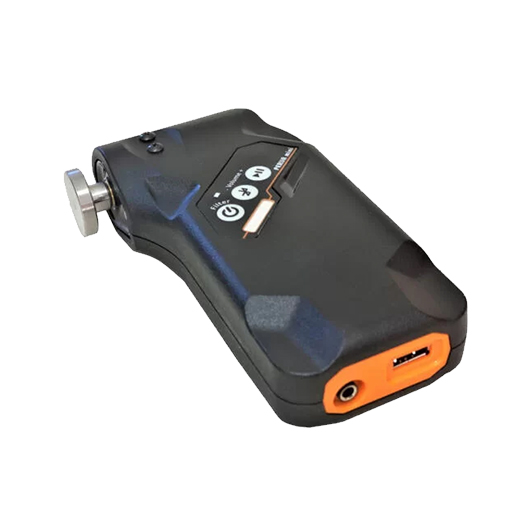

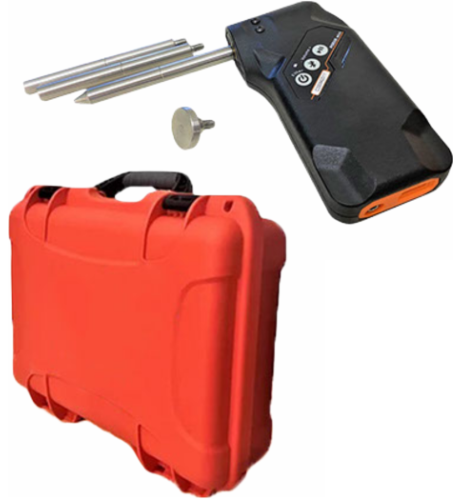

PERIJA Mini Vpro is an acoustic listening device for Water Leak Judgment & Electronic Listening Stick System based on an acoustic Digital Sound Detector with Automatic Water Leakage Judgment Mode, well-suited for water leak surveying on pipes for Service Lines between homes. It is a smart and sensitive sound detector that is equipped with an internal piezo electric sensor in an extremely small size.

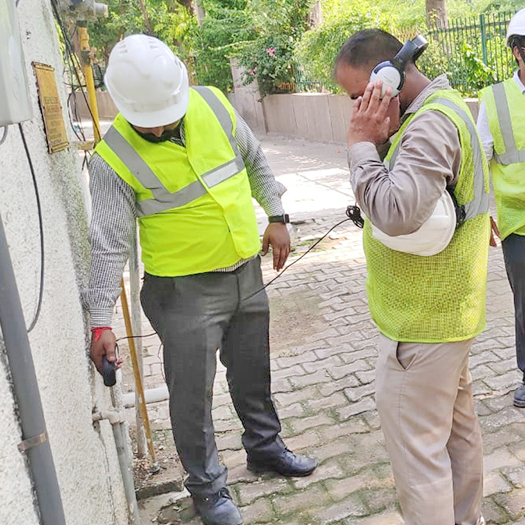

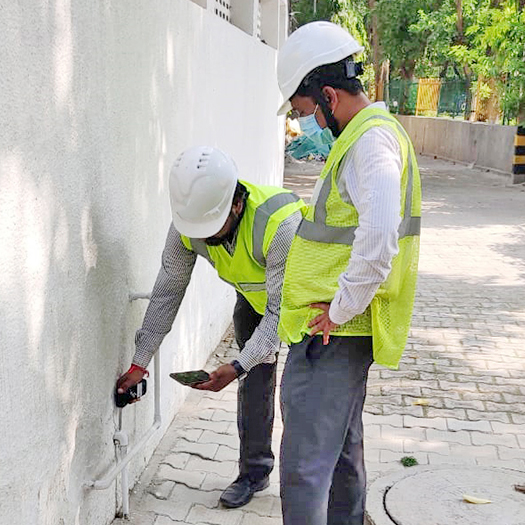

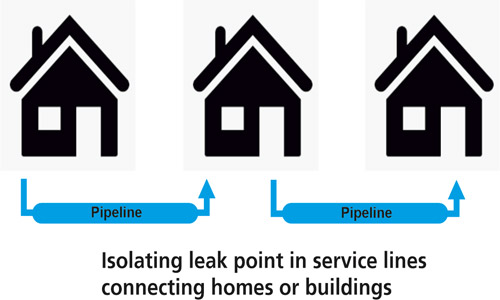

The primary use of the device is that of a water leak survey instrument and the purpose of Perija Mini VPro is to detect the possible locations of water leaks in service pipes between homes or buildings. The survey methodology utilised is to check for water leakage in service lines between home 1 and home 2, home 2 and home 3 and so on. In order to conduct such a survey, requires placement of  the sensor at the water meter or near a value, and wait for 10 seconds for the water leak estimator algorithm to calculate probability of water leak .  The instrument will display on the operators mobile if there is no leakage, small or high probability of water leakage. Accordingly it becomes possible to isolate section of the service pipe where there is water leakage.

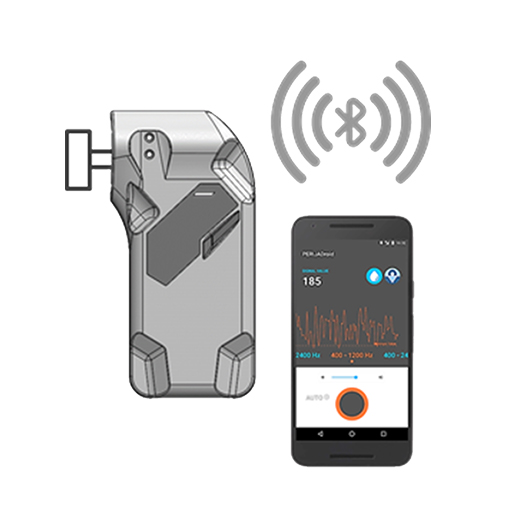

The water leak detector offers Bluetooth connectivity to Perija Mobile App (PERIJA Mini VPRO™) for direct viewing of results On-Site. The operator therefore utilises his or her mobile phone to view the results of the instruments.

When PERIJA Mini Vpro is connected to smartphones or tablets, the minimum and average noise levels of places would be displayed with GPS Data which provides ease to the operator for checking, pinpointing, analyzing, and reporting.

The NRW (Non-revenue water) reduction equipment offers a wide frequency range from 200 to 4000 Hz & 4 band pass filters.

How to connect the Perija Mini Vpro pipe leak detector to the water network :

• Switch on the Perija Mini Vpro and connect to Mobile App
• Choose frequency based on material type.

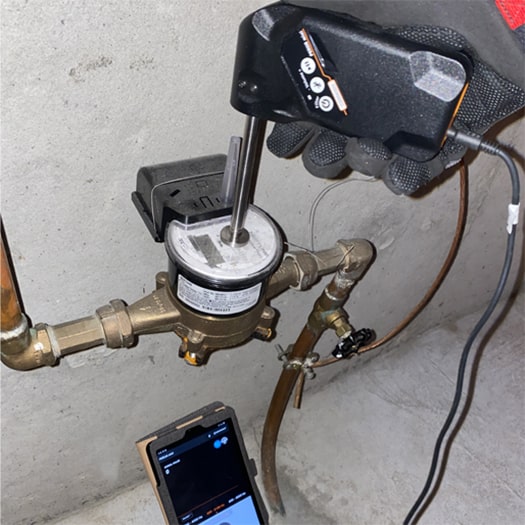

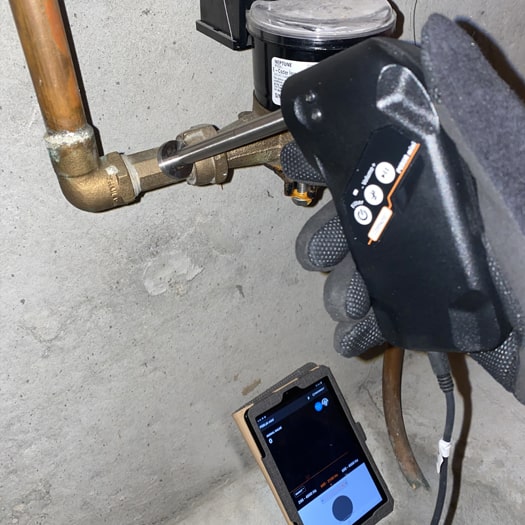

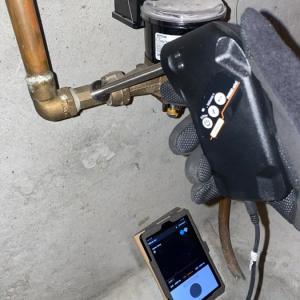

• Place the Perija Mini Vpro on pipe/valve near water meter
• Countdown will begin
• If the instrument shows Blue water drops, denotes leak possibility in the service line

No Drop: No leakage, invalid, very weak input signal

One Drop: Low possibility, weak input signal

Two Drops: Small leakage, intense leakage at distance

Three Drops: Confirmed leakage
