ST WVBS

  • Product Description
  • Specifications
  • Features

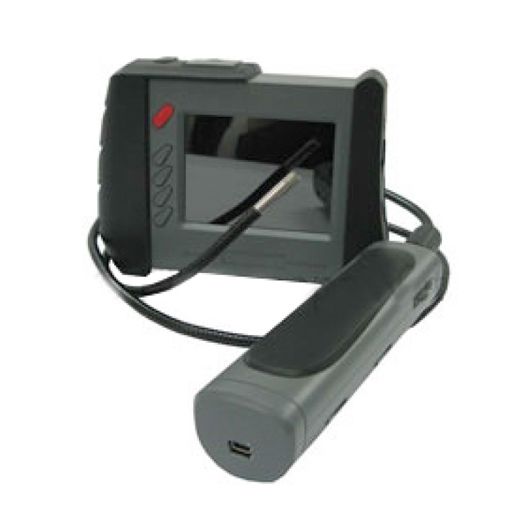

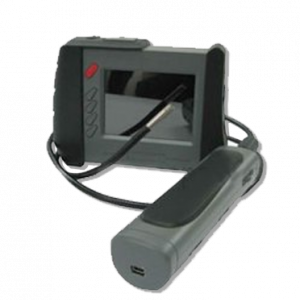

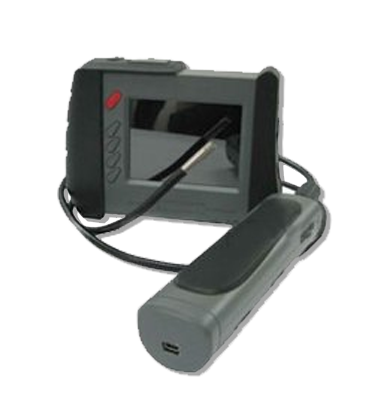

The Handheld Digital Wireless Borescope features an easy to use, convenient design, with the ability to separate the insertion tube system from the base unit for easy remote inspections.

Probes are of 5.5mm dia. allowing insertion into the smallest of spaces. The system allows both photo capture  and video recording  and  provides output to TV apart from USB output to allow review later.





Image Sensor CMOS Image Sensor
Resolution 640 x 480 pixels
Size 146.9 x 105 x 71mm
Tip(Insertion Tube) Diameter 5.5mm
Insertion Tube Length 1M~10M
Frame rate ~30 fps
S/N Ratio 42dB
Exposure Automatic
White Balance Fix
Field of View(FOV) Horizontal- 460 Vertical - 560
Depth of Field(DOF) 1cm~6cm
Light Source 4 White LED (0~275 Lux/4cm)
Power DC5.5V
Display 3.5"TFT LCD
Interface Mini USB 1.1/AV out/AV in
Battery Rechargeable Li-Polymer Battery (3.7V)
Video Out Format NTSC & PAL, AV-out
Recording medium SD card (1GB)
Compression Format MPEG4
Still Image Storage Format JPEG (640x480)
Video Recording Format ASF (320x240)
Language English
5.5mm diameter insertion prove with 2m length.
Color 1/10" CMOS Video Camera chip integrated in the tip of the insertion probe.
Wide view camera angle for 640x480 resolution images.
A 3.5" LCD Monitor, with a 1 GB SD memory card for Image/Video capture.
4 white LED lights to illuminate the image, with intensity control.
A rechargeable Li-Polymer battery with up to 4 hours of continuous use.
Wireless connection between the portable monitor and insertion probes, with no data cable.
1 meter probes feature a "Flex and Stay" semi rigid design.
