IDS RIS MF Hi-MOD GPR

  • Product Description
  • Specifications
  • Features
  • Video
  • Software

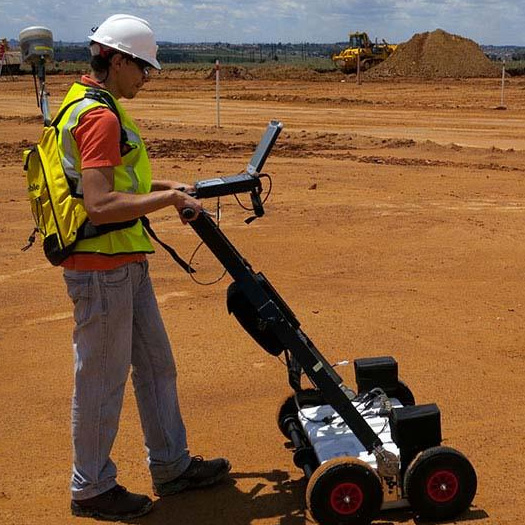

The RIS Hi-MOD represents the latest generation technology in Highly modular Multifrequency array based GPR for providing HIGHLY ACCURATE  MAPPING of utilities.

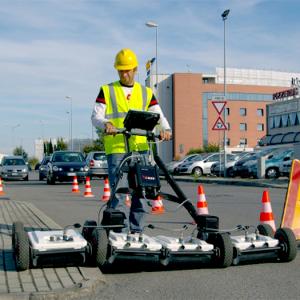

The RIS Hi-MOD utilises upto 4 Dual frequency antennas  (operating at 200 MHz and 600 MHz) antennas (i.e upto 8 channels) and is  based on a cart system that is 2.0m wide, providing max walking speed  upto 10km/hr.The RIS MF is unique in providing the field procedure of  making both longitudinal and transversal scans in one go.

The system is based on a central high powered processing  system controller connected to multiple antennas,connected in a chain architecture to carry out high resolution capture, collation and  processing of underground utility data over large areas which can be  exported to CAD for mapping in 2D/3D.

Radar Acquisition unit IDS DAD FAST WAVE, with RIS K2 acquisition software
Max Number of channels Up to 8
Antenna Frequencies 200-600MHz
Positioning Metric wheel and/or GPS interface
Collection Speed 3.77m/sec in full configuration (8 channels)
Max. Scan Rate 4760 Scan/Sec
Battery operation time >8h
Weight 58 kg full configuration (i.e 4 Antennas)
Size on ground 200 cm x 60 cm (full configuration)
Survey path width Up to radar scans, 52 cm each
Wireless connection Available
Environment IP65
Data Logger Tough book laptop
Item Code ST-RIS-HIMOD

Hardware Details

Fast Wave : The fastest digital radar control unit on the market, providing a high stacking factor and hence superior penetration depth.
Chain Architecture : Antennas are added to the system in a "chain" connection in"plug and play" mode.
Multifrequency : Each antenna houses dual frequency 200 and 600 MHz frequencies for better penetration and resolution detecting both deep and shallow pipes & cables.

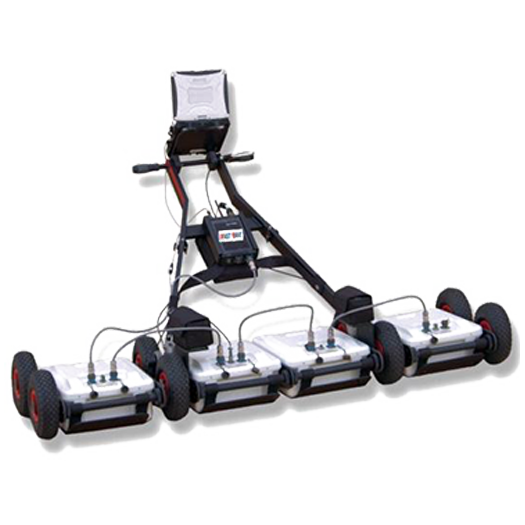

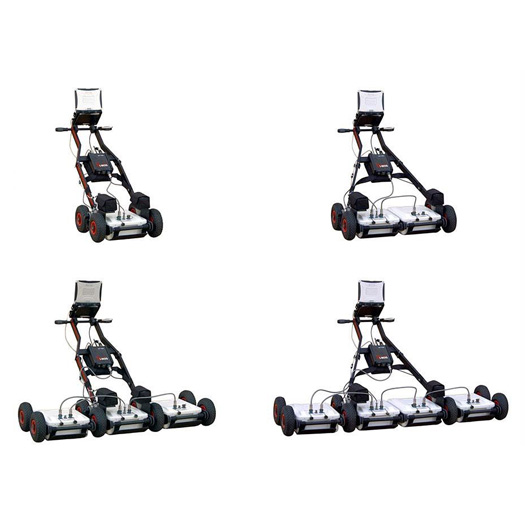

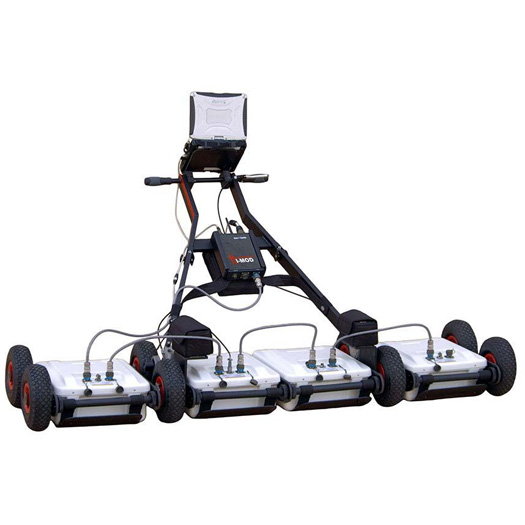

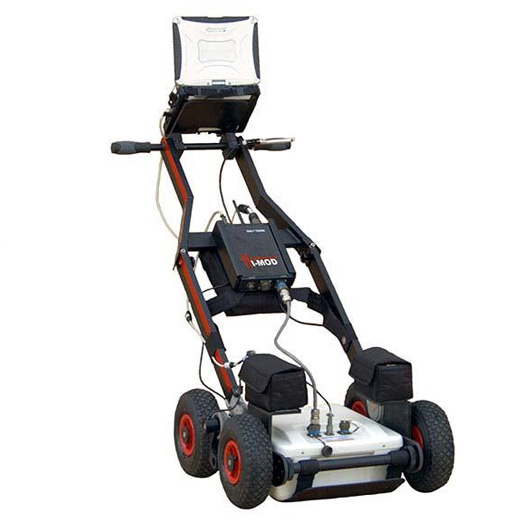

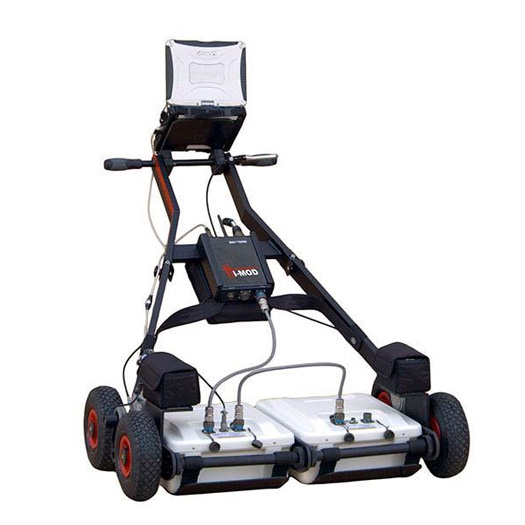

Modular design : Can be reconfigured in the field (no tools required ) for 1to 4 antennas.
Robust : Robust mechanical structure for intensive use.

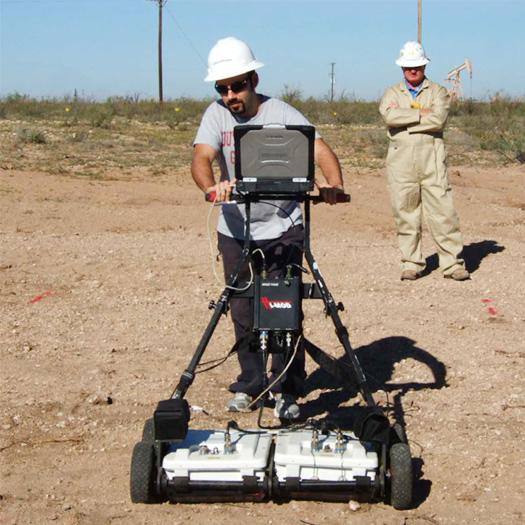

All Terrain : The trolley has been designed for both asphalt and rough terrain.
Provided with tough book laptop.

Software Details


Advanced GRED 3D Post processing software provided with system capable of
Automatic target identification for high productivity.
High penetration depth.
Database for rational storage of large volume of data.
CAD/GIS automatic rendering.
2D/3D mapping & data representation.
High resolution data fusion of longitudinal & transversal scans.
  • Deep and shallow antennas in one compact box:  Two antennas in the same box, with the option of choosing 200 MHz & 600MHz or 400 MHz & 900MHz, help the operator to locate pipes and cables by providing  the proper frequency for a specific search parameter.  It provides a real-time display of deep and shallow antennas on the same screen.
  • Modular: Antenna boxes can be quickly added in “chain connection” while in the field (no tools required) with up to 8 in operation simultaneously. As a result, the system is able to work in any available space.
  • 3D Radar Tomography: Multi-frequency data fusion and a consolidated procedure to collect the data enable accurate 3D images of the subsurface to be achieved, helping the operator to distinguish individual anomalies and buried targets.
  • Professional utility mapping capability: The result can be exported in several formats including GIS and CAD (AutoCAD or MicroStation) for a professional survey.
  • Flexible: Powered by the IDS Multi-channel Control unit, the system can be used to drive every IDS antenna.

K2 FastWave - Acquisition Software for use in the Field







K2 FASTWAVE
Software is the acquisition software designed to work with the IDS DAD FastWave control unit (single or multi-channel) and is included in the DAD package. The K2 FastWave is able to support the acquisition of up to 8 antennas connected in chain and is able to show two radargrams simultaneously on the screen in real time during the acquisition phase.

The software comes with comprehensive tools to customize the acquisition parameters and calibrate the signal of every acquisition channel.

From the initial interface the operator can estimate the propagation velocity as well as modify many other parameters.K2 FastWave is also able to continuously monitor the status of the system, providing an alarm for every possible malfunction that can happen in the field.K2 FastWave also has a dedicated tool to help the user collect data in grid mode in order to achieve the best results from the survey, mixing longitudinal and transversal scans in the post processing. The system can be connected to GPS and is able to record the path in real time and mark anomalies: the data is stored in a dedicated folder and is easy to access in the future post processing phase.


Post Processing Software

The GRED Post processing software family is modular. Every module includes the capability of the software listed above.

GRED Basic - Recommended for generic basic post processing analysis and road pavement evaluation








GRED is an easy to use post processing software able to post process the data acquired with the IDS K2 FastWave. The software offers general tools and features and can be used for several applications from geology and archaeology to underground utility detection. This software is equipped with basic features and is recommended for users that have to analyze data in the office and want to maximize their capability of interpretation. With this software the user will be able to process in 2D the radargram acquired in the field.

The software is able to show the B-Scan (radargram) acquired and to apply several types of filters (background removal, gain, mitigation time domain, etc.) to obtain an easier to interpret B-Scan. It is also possible to set filter macros for iterative filtering of the data. Anomalies as well as pipes can be marked directly on the interface. GRED Basic is also able to do semi-automatic layering reconstruction and insert core.

GRED 3D - An Advanced GPR Processing and Imaging Software Recommended for pipe and utility mapping and 3D analysis of the subsurface










GRED 3D
is an advanced post processing software for 3D and tomographic rendering of the acquired data. The software is able to present a 3-dimensional view of the subsurface, with a complete set of options for navigate within it, cutting it and marking anomalies. The software is also able to export 2D plan-view slices of the subsurface from which the operator can best interpret anomalies and pipes. The pipes and cables detected can be marked with a dedicated tool where the operator can specify a color for each pipe, the depth of it and an estimate of the dimensions. The marked pipes can then be visible in the 3D view, the 2D tomography slice and the traditional radargram. The software is also able to show multiple radargrams simultaneously to enhance the capability of the interpretation.



GRED 3D CAD






GRED 3D CAD for Windows XP is an industrial software dedicated to processing RIS data and generating cartographic output. The environment has been designed to provide highly interactive and efficient management of the large quantity of data acquired by the RIS Acquisition Unit. The 2 monitor configuration permits you to view radargrams as multiple sections (standard representation) together with the tomographic view. Results of the data analysis can be transferred to CAD either using an interactive link or at the end of the work session. In the latter case, GEO MAP automatically generates the final cartographic output.

The innovative functions allow a reduction in the human factor in the radar data interpretation with a drastic reduction in the data processing time.
The main benefits and features are:

  • Dramatic reduction of processing time, by more than 60%
  • Easiest and automated interpretation procedures thanks to
    • Automated target recognition
    • Optimized tomography with automatic propagation velocity estimation
    • Automatic fusion of 200 and 600 MHz data
    • Pipe and cable detection phase concentrated on the automated target recognition module and tomography and not on difficult to read radar maps
    • 3D data representation
    • Fusion of longitudinal and transversal scans in the same tomographic maps
    • Representation of irregular acquisitions useful for areas with "holes" inside (e.g. gasoline stations, industrial plants, etc...).


All the radar data and analysis results are stored in a relational data base in order to have both a historical archive and to be able to rapidly and efficiently search and select data. Data elaboration, including disturbance and noise reduction filters, gain equalization, tomographic elaboration and estimation of propagation parameters (penetration depth, propagation velocity, attenuation, etc.) is fully automatic, thus avoiding mistakes in inserting processing variables and guaranteeing working times.



GRED 3D UTILITIES



The GRED 3D UTILITIES module includes all the functions of the previously mentioned modules and in addition contains the automatic target detection management. This procedure is able to detect anomalies with a continuous pattern that can be associated with pipes. Once detected these pipes can be exported in 3D view or directly to CAD/GIS software.
