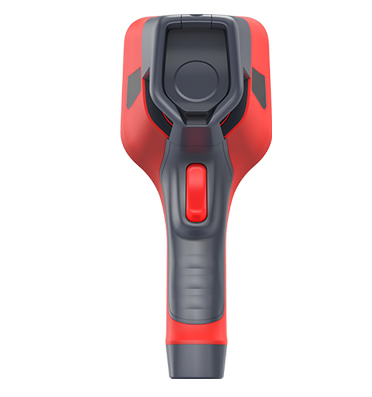

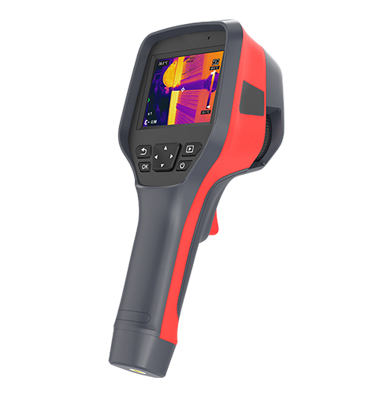

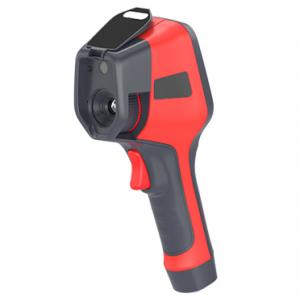

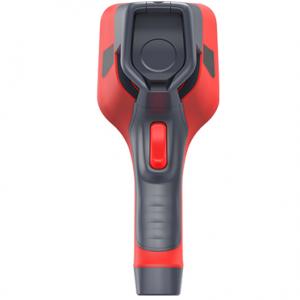

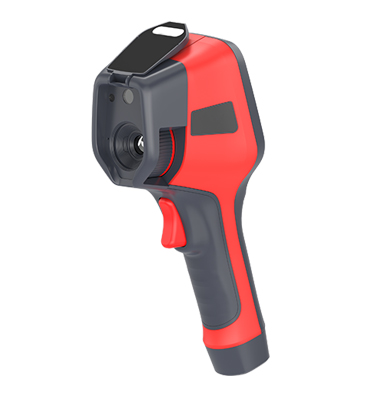

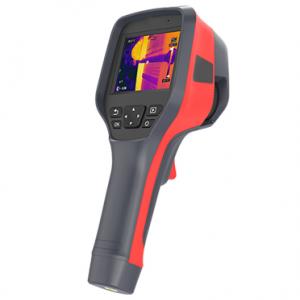

S500-M Manual Focus Thermal Imaging Camera

Model

S500-M

Detector Type

Uncooled VOx Infrared Focal Plane Detector

Detector Resolution

640x512

Spectral Band

8-14μm +/-0.5mm

Pixel Size

12μm

Thermal sensitivity (NETD)

<35mk

IFOV

0.63mrad

FOV

23°× 18°

Frame rate (In Hz)

30

Focal length (in mm)

19

Focusing Mode

Manual focus

Measurement Range

Range 1: -20°C to +150°C ; Range 2: +100°C to +650°C

Measurement Accuracy

±2% or ±2°C

Measurement Resolution

0.1°C

Measurement Mode

Center spot/hot and cold spot tracking and temperature display

Custom Measurement of Points,

Lines, and Areas

Movable spot/line/area temperature measurement, up to 10 spots, 10 areas, 10 lines. Temperature trend can be viewed via temperature measurement line.

Measurement Units

Celsius, Fahrenheit, Kelvin

Emissivity setting

0.01-1.00,step length 0.01

Distance setting

1-20m, (step length:1m)

Image mode

Thermal, dual-spectrum fusion, visible light, PIP

Palettes

10

Alarm Mode / Temperature Alarm

Image alarm/Support temperature alarm

Visible Light Camera / Laser Pointer

Yes

Visible Camera Resolution

5MP

Digital zoom

1×, 2×, 4×, Max 8×

Photo/Video Storage Function

Jpg images with temperature data in thermal and visible light modes;

H.264 videos without temperature data and IRV video with temperature data’’

Voice annotation

Yes

Image naming

Auto/manual input, QR code scanning

Display Screen Size (Inch), Resolution

3.5-inch touch screen (640 x 480)

Data Storage

Standard 32GB MicroSD card, expandable to 512 GB

Battery type

Rechargeable and detachable Lithium battery

Power Supply

USB Type-C

Connection Type

Type-C; WiFi

Battery operation time

About 4h

Charging time

About 3h

Power Management

Automatic shutdown: 5 min, 10 min, 20 min, non-automatic shutdown

Analysis software

PC (Infrared analysis software) or mobile (IOS/Android APP)

Operating Temperature | Storage | RH %

-10~+50°C | -20~+60°C | 10%~95% RH

Environmental | Drop Protection

IP54 (IEC 60529) | 2m

Impact and Vibration

Impact 25G (IEC 60068-2-27); vibration 2.5G (IEC60068-2-6)

Dimensions (LxWxH) | Weight

258×105×102mm | Approx 680 grams

Product Supply includes

Power adapter, Charging bay, Battery (1 mains +1 spare), Data cable, SD card, User manual
