Mini Concrete GPR GP8800

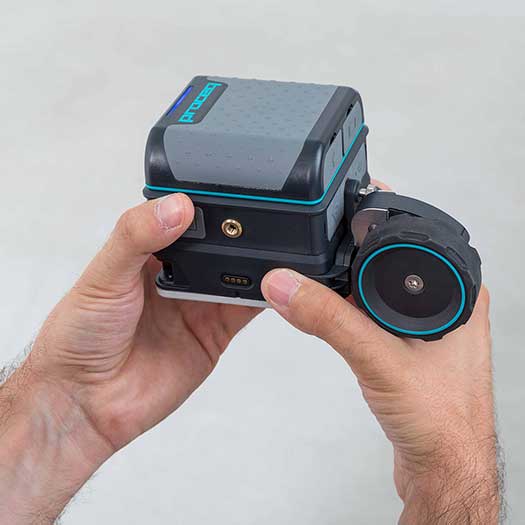

GP8800 GPR is an ultra-compact ground penetrating radar (GPR) system based on the Proceq SFCW radar technology that fits at the palm of your hand, for locating rebars, post-tension cables & other elements in concrete structures.

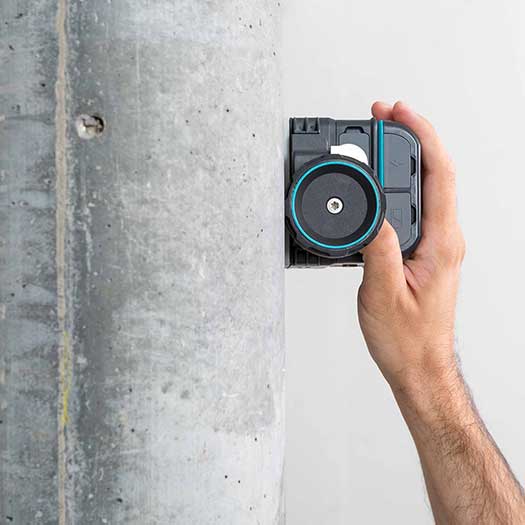

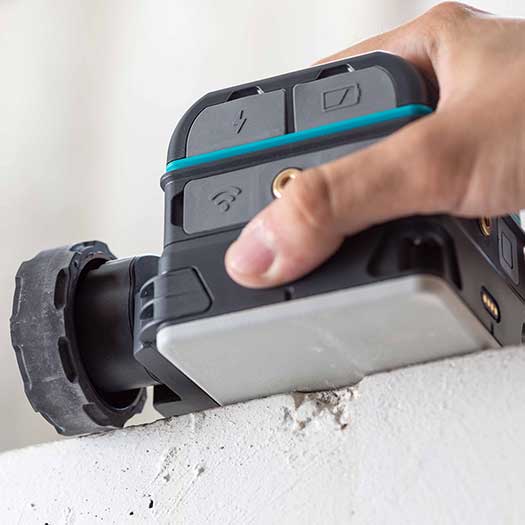

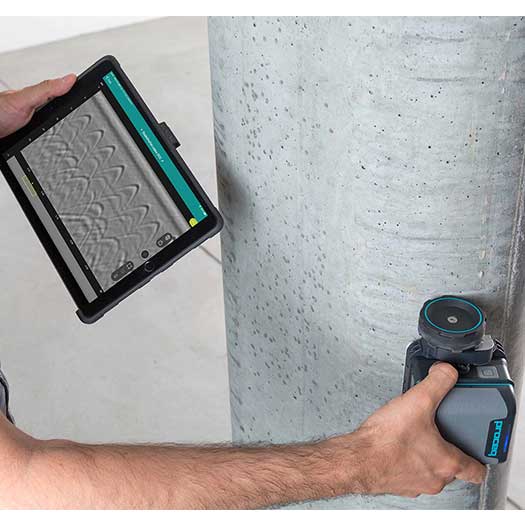

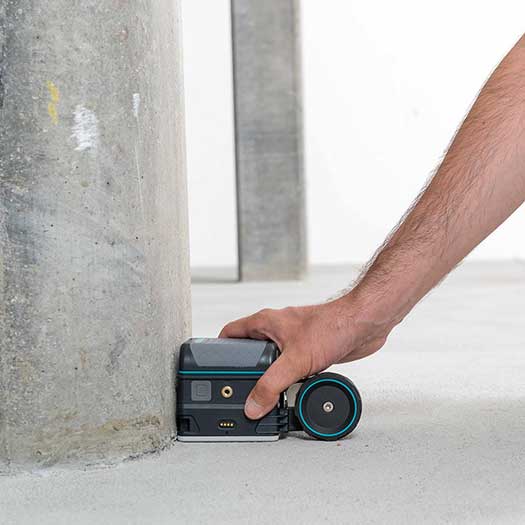

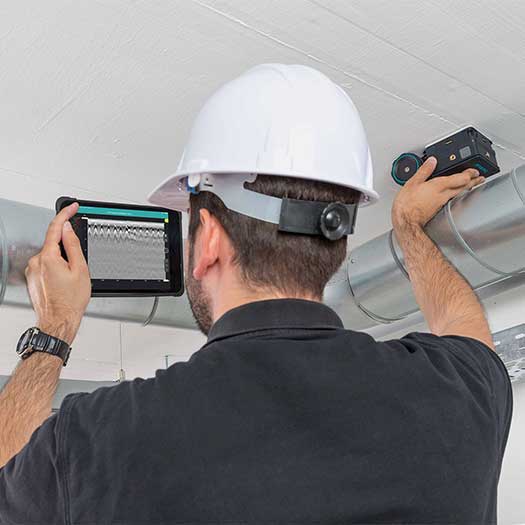

Due to its compact design, GP8800 Concrete GPR is a preferred choice for congested areas close to walls & underneath/ Irregular and curved surfaces, for locating rebars, pipes etc in concrete structures.

Based on stepped frequency continuous wave (SFCW) radar technology, The handheld GPR delivers an ultra-wide band range of modulated frequencies upto 6000 MHz & allows detection of objects from shallow to deeper depth in one scan.

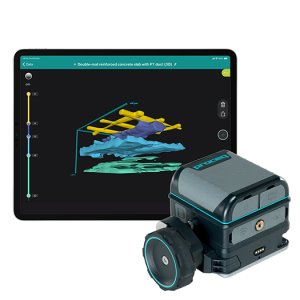

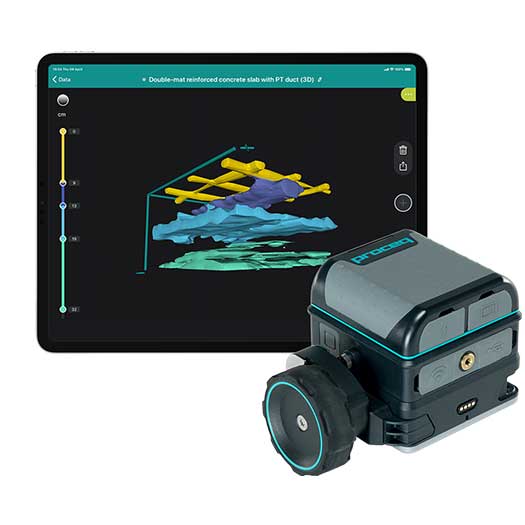

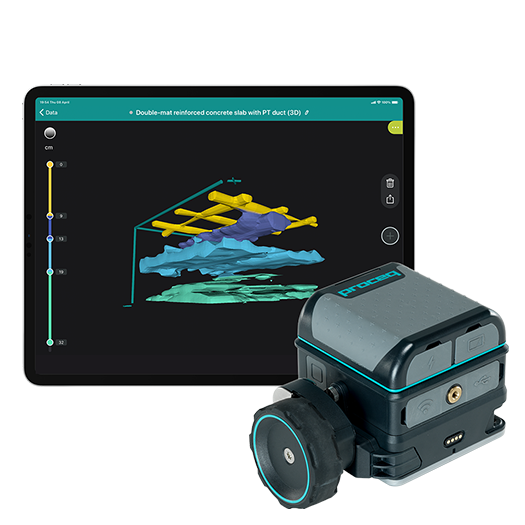

Penetration depth is upto 65 cm in dry concrete, The GP8800 Concrete Scanning GPR Offers an advanced visualization feature for Immediate insights with 3D and Augmented Reality.

The GP8800 Palm-Sized GPR is ideal for concrete inspection & structural imaging, providing continuous line scans up to 1000 meters requiring no image stitching at a price point, similar to high end rebar locators.

The ground penetrating radar has cloud storage for GPR measurements & post-processing of SEG-Y files exported data. Integrated with Mobile App that let a user annotate measurements with voice, photos and comments. The handheld SFCW GPR allows an operator to generate reports and share them instantly. Access your data from anywhere, anytime.

Request Quote

Features

Superior insights from unparalleled depth and clarity of data from the powerful probe
Easy to learn and to operate with a user-friendly, feature-rich, intelligent software
Unmatched productivity through user-centric inspection ergonomics and digital workflow

Specification

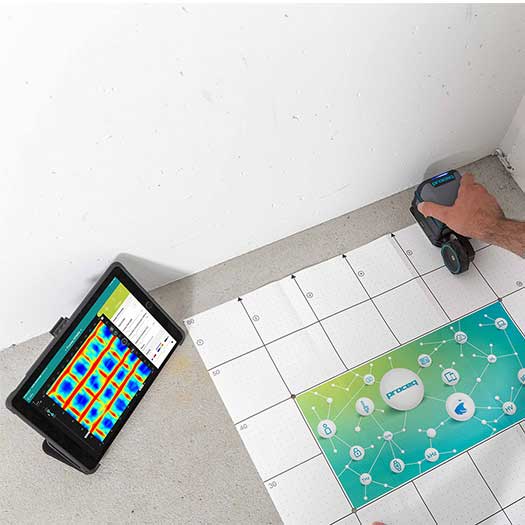

Measurement Modes	Superline Scan (1000m / 3281 ft) Area Scan (with Flexible Grid up to 100m2 / 1076 ft2)
Review modes	Superline scan¹ A-scan (incl. envelope) Migrated view Non-migrated view Split view¹ Time-Slice view² Basic 3D view AR
Advanced visualization	Time-Slice view Pro 3D view Augmented Reality (AR)
Reporting	Workspace integration Automatic Logbook SEG-Y export Instant report generation Share via URL
Export formats	JPG PNG CSV SEGY HTML
Display Unit Specs*:	Latest Apple® iPad recommended (iPad with iOS 11.0 and higher) Screen size: From 7.9" to 12.9" Resolution: Up to 2732-by-2048 Memory: Up to 2TB Weight: Down to 301 g / 10.6 oz Camera: Up to 12MP Wide and 10MP Ultra Wide Optional: USB-C, 5G, Face ID
Display Unit Sensors*:	LiDAR Scanner (optional) Three-axis gyro Accelerometer Ambient light sensor Barometer Built-in GPS/GNSS
Radar technology	Stepped-frequency continuous-wave (SFCW) GPR
Modulated frequency range	400 – 6000 MHz
Penetration depth	65 cm / 25.6 in
Battery	Flight-safe, removable pack, 8x AA (NiMH)

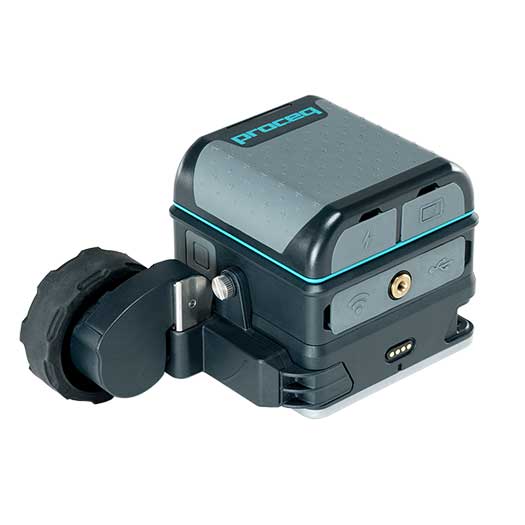

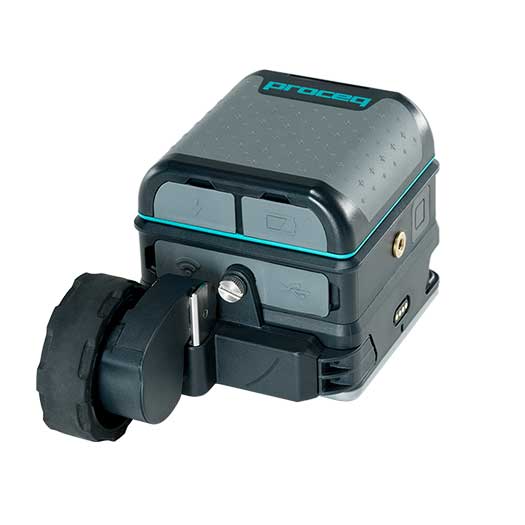

Dimensions	8.9 x 8.9 x 7.6 cm 3.5 x 3.5 x 3 in
Weight	487 g / 17.2 oz (excl. battery pack)
Ground clearance	0 cm
Antennas	1
Antenna distance to edge	4.5 cm / 1.77 in
Connections	Wi-Fi (802.11n) to display unit
Autonomy	2.5 h (up to 8 hours with off-the-shelf 10'000 mAh power bank, not included)
Special features	Wireless wheel, reconfigurable at any time without tools. Cross-polarization (trailing and side-car configurations) USB-C tethering to battery pack/power bank

FAQ

Do you have a question which we can answer for you? Click here if Yes

What is the Penetration Depth of GP8800 GPR

65 cm / 25.6 in
What is Stepped Frequency Continuous Wave?

Stepped frequency continuous wave (SFCW) has the advantage to broadcast an ultra wide-band range of modulated frequencies than Pulsed-GPR broadcasting a signal which allows detection of object at deeper depth.
Do I need to calibrate my GP8800?

No. GPR self-calibrates each time you turn it on. There is no need to send your unit back to a repair/calibration centre.
What is the output data format for GP8800 GPR?

GPR exports data in the SEG-Y format. This can be easily converted to other formats like .xls, .dxf or .kml if needed for further visualization of data

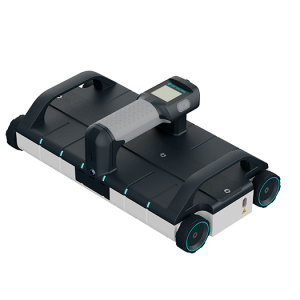

Can GP8100 detect the voids under concrete?

Air inside the concrete results in a partial reflection of the GPR signal, which allows you to detect larger voids
What is the cross-polarization data feature?

Cross polarization of data feature allows to see both metallic target & non-metallic targets cleaner as per the requirement.
What is the dimension of the equipment?

8.9 x 8.9 x 7.6 cm
