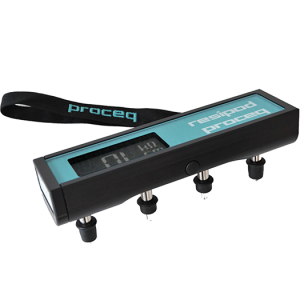

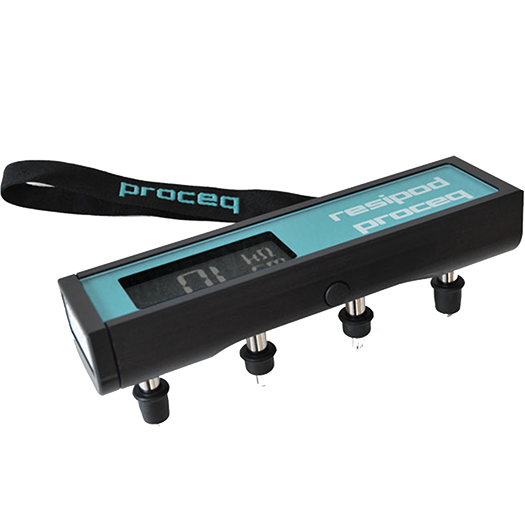

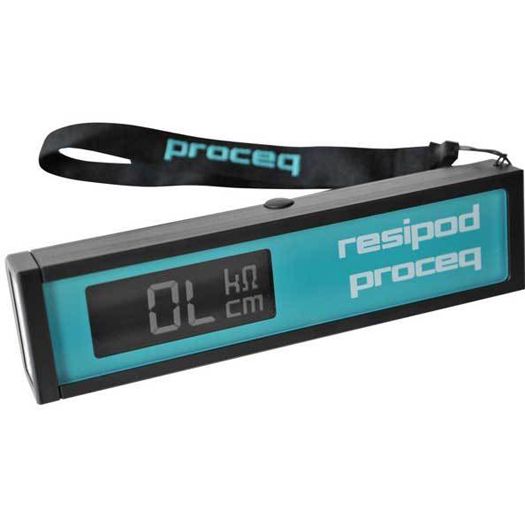

Proceq Resipod Concrete Resistivity Meter

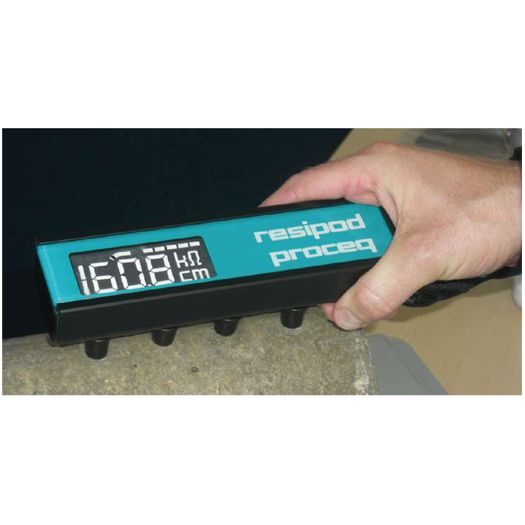

Resipod Concrete Resistivity Meter  is a fully integrated 4-point Wenner probe, designed to measure the electrical resistivity of concrete in a completely non destructive test. It is the most accurate instrument available, extremely fast and stable and packaged in a robust, waterproof housing.

Concrete surface resistivity meter provides information about the state of concrete structure. It is directly linked to the likelihood of corrosion and the corrosion rate .A direct correlation between resistivity and chloride diffusion rate has been indicated.

The applications include

  • Estimation of the likelihood of corrosion
  • Indication of corrosion rate
  • Correlation to chloride permeability
  • On site assessment of curing efficiency
  • Determination of zonal requirements for cathodic protection systems
  • Identification of wet and dry areas in concrete structure
  • Indication of variations in the water/cement ratios within a concrete structure
  • Identification of area within a structure most susceptible to chloride penetration
  • Correlation to water permeability of rock

Product Specification
Range 0 - ca. 100kΩcm (depending on probe spacing)
Resolution (Nominal current 200 µA) ± 0.2 kΩcm or ±1% (whichever is greater)
Resolution (Nominal current 50 µA) ± 0.3 kΩcm or ±2% (whichever is greater)
Resolution (Nominal current <50 µA) ± 0.2 kΩcm or ±5% (whichever is greater)
Frequency 40 Hz
Memory Non volatile, ca. 500 measured values
Power Supply >50 hours autonomy
Charger Connection USB type B, (5V, 100mA)
Dimensions 197 X 53 X 69.7 mm (7.8 X 2.1 X 2.7 inch)
Weight 318 g (11.2 oz)
Operating Temperature 0◦ to 50◦C (32◦ to 122◦ F)
Storage Temperature 10◦ to 70◦C (14◦ to 158◦ F)
  • Fully integrated surface resistivity instrument
  • Wide measuring range (0 to ca. 1000 KΩCM)
  • Fast and accurate delivery of measuring results
  • Highest resolution available for a surface resistivity instrument
  • Meets the AASHTO standard (38mm, 1.5” probe spacing (Standard under development)
  • Current flow indication and poor contact indication
  • Hold, save and delete function, with onboard memory
  • USB connection and dedicated PC software
  • Designed to float (waterproof according to IPX7)
  • Allows variable probe spacing to be set
  • Allows replacement of standard tips with accessories
Frequently Asked Questions (1 answered questions)
Measuring Range 0.1 – ca. 1000 kΩcm (depending on probe spacing)
