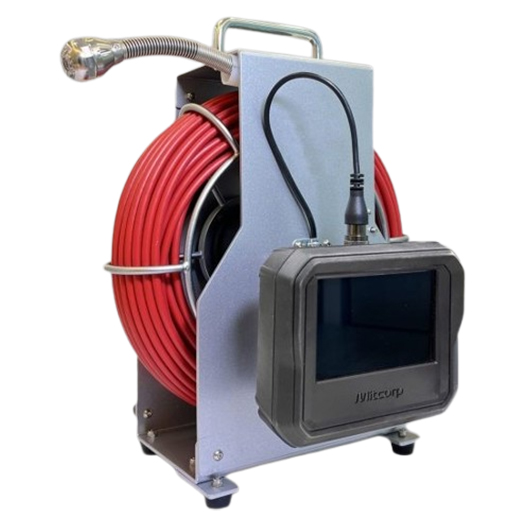

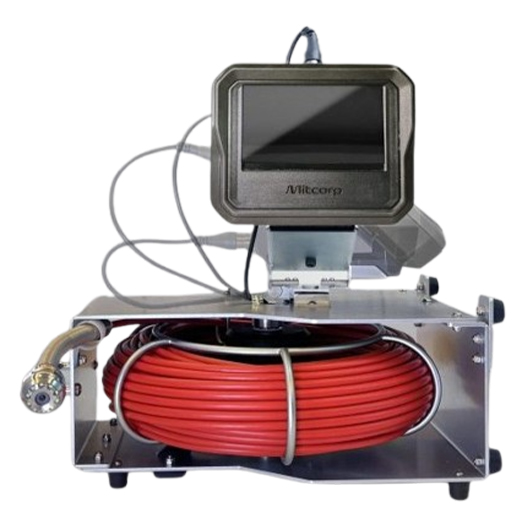

X600-PRM2830 Touch Screen Industrial Pipe Inspection Camera

The X600-PRM2830 Touch Screen Industrial Pipe Inspection Camera is a rugged and highly adaptable solution designed for thorough inspections across a wide range of industries. Featuring high-definition imaging on a 5-inch touchscreen display and built for durability, the X600 excels in both harsh industrial environments and plumbing applications. The 28mm camera is rated IP68 for waterproof performance.

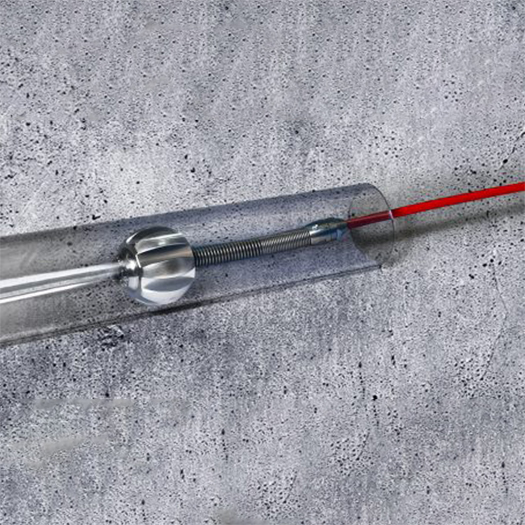

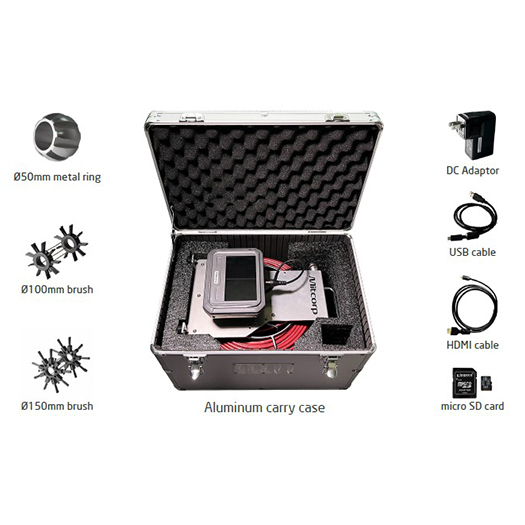

With a wide 150-degree field of view, and enhanced by included 100mm and 150mm cantering devices, the system enables detailed inspections of pipes and containers, capturing high-quality HD images and video.

Data can be easily transferred via the integrated USB port for efficient storage and sharing.

Request Quote
X600-PRM2830 Touch Screen Industrial Pipe Inspection Camera
Features

The key features of the X600-PRM2830 Industrial Pipe Inspection solution:

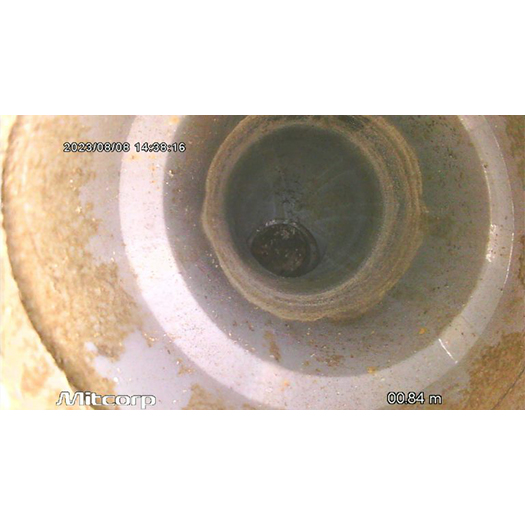

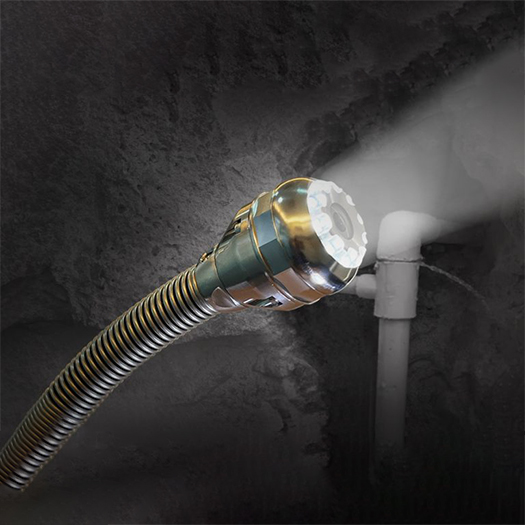

  • High-Definition Imaging: Equipped with a 28mm rugged camera head delivering 1400x1080 pixel resolution, ensuring clear and detailed visuals.
  • Wide Field of View: Offers a 150° viewing angle, allowing for extensive coverage during inspections.

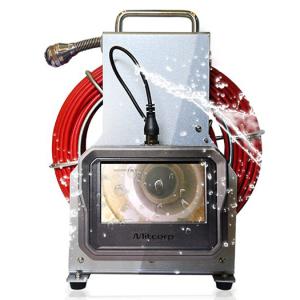

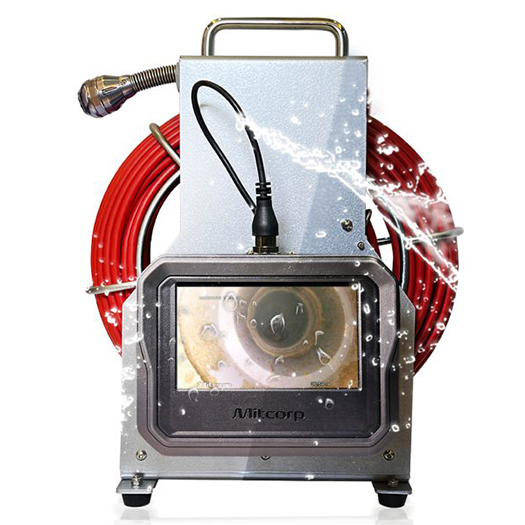

  • Durable and Waterproof: The camera boasts an IP67 rating, capable of withstanding submersion up to 20 meters for 30 minutes. The entire system holds an IP54 rating, ensuring protection against dust and water splashes.

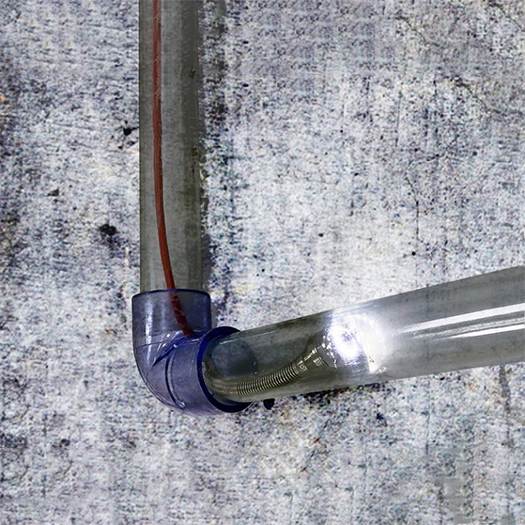

  • Flexible Probe: Features a 30-meter push rod that can navigate through 40mm pipes with multiple 90-degree bends, enhancing manoeuvrability in complex piping systems.
  • User-Friendly Monitor: Comes with a 5-inch full-touchscreen monitor (800x480 pixels), providing intuitive control and real-time viewing.
  • Efficient Data Management: Supports microSD storage up to 64GB, with image and video outputs in JPEG and MP4 formats at 1920x1080 resolution.
  • Digital Meter Counter: Displays the insertion length of the probe on-screen, aiding in precise location tracking during inspections.
Specification



TECHNICAL SPECIFICATIONS

Monitor

PRODUCT CODES

X600

Dimension

161.93 (mm) x 127.93 (mm) x 46 (mm)

Weight

705g

Display

5" Touchscreen 800x480 pixels

Power Supply

Rechargeable Li-battery

Video Output

Micro HDMI

Working Time

Approximately 3.5 hours of operation

Charging Time

Approximately 2.5 hours

Data Transfer/Charging

USB-C

DC Power Adapter

Input:100-240V~0.5A;

Output: 5V/3A(15W)

Phone Jack

Built-in microphone

Storage

Micro SD up to 64GB

Image Format

JPEG, 1920x1080

Video Format

MP4, 1920x1080

IP Rating

IP54

Drop Resistance

1 meter

Operating Temp.

-10˚C~50˚C

Storage Temp.

Generally, storage under 60˚C

Charging Temp.

0˚C~40˚C



Probe

Model

2830HD-F-30M-FRP

Diameter

28.0 mm

Length

30 m

Direct of view

Front view

Illumination

Front LEDs

FOV (Field of View)

150˚

DOF (Depth of Field)

20 mm~∞

Probe head material

Stainless steel

Buttons

Full touch screen. No physical button

Material

FRP

Liquid Resistance

Unleaded gasoline, diesel, machine oil, brake oil, transmission oil, water

IP Rating

IP68

Working Temp.

-10˚C~60˚C

Storage Temp

Generally, storage under 60˚C

Relative Humidity

Max 95% non-condensing
