Proceq PL200

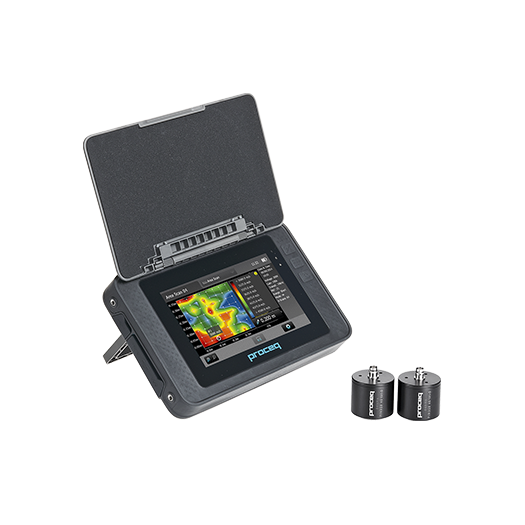

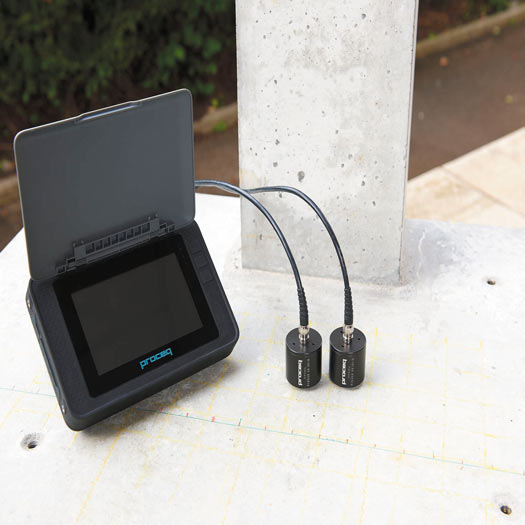

Proceq PL200 is best in class on site Ultrasonic Testing instrument for accessing the concrete uniformity via Line and area scans with measurement range up to 15m (depending on concrete) to ensure accurate path length measurement, perpendicular crack depth measurement and surface velocity measurement.

Proceq PL200's superior feature of on- board storage and upgradation to use with single shear wave transmitter or expandable with Pundit Pulse echo transmitter makes it a benchmark for ultrasonic pulse velocity testing.

Applications Overview:

Pundit PL-200

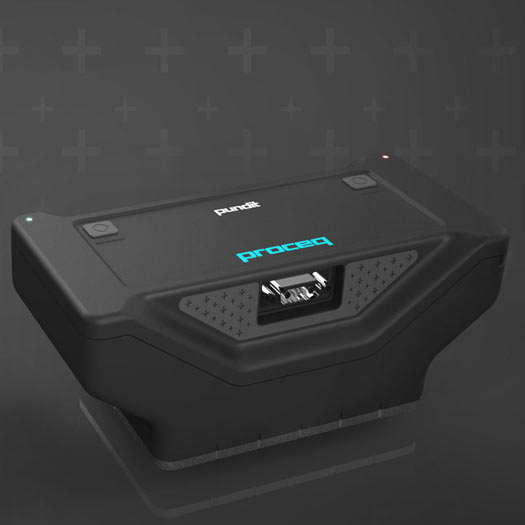

Pundit PL-200PE

Through Transmission: Access from two sides

Single Side Access



Assessment of concrete quality

Ultrasonic Pulse Velocity

Uniformity

Compressive strength and SONREB

Slab thickness from a single side

Determination of crack depth

Detection and localization of voids, pipes, cracks (parallel to surface), and honey combing

Modulus of elasticity

Scan Modes

A-Scans

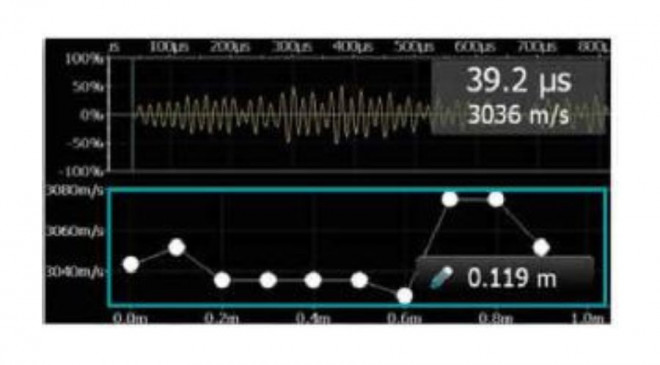

Line Scans
E-Modulus
Data Logging
Area Scan

A-Scans
B-Scans
Area Scan



 Comprehensive Measurement Modes:

Line Scans





Assesses the concrete uniformity and detects cracks as well as other defects. The measured pulse velocities are displayed as a line.

Pulse Velocity







 Calculates the pulse velocity of the material under test.

Compressive Strength:

Determines the com- pressive strength using Ultrasonic Pulse Velocity correlation, or by using SONREB

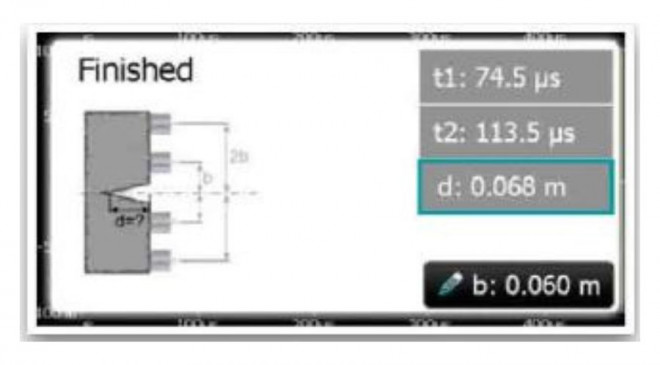

Crack Depth:

Determines the depth of perpendicular cracks according to BS 1881.

Surface Velocity





Determines surface velocity according to BS 1881.



Transmission Time:

Measures the transmission time.

Distance:

Calculates the distance between the transducers.

Standards and Norms:

EN12504-4 (Europe), ASTM C 597- 02 (North America), BS 1881 Part 203 (UK), 1S01920-7:2004 (International), 1513311 (India), CECS21 (China).





 PL200 Additional Measurement Modes

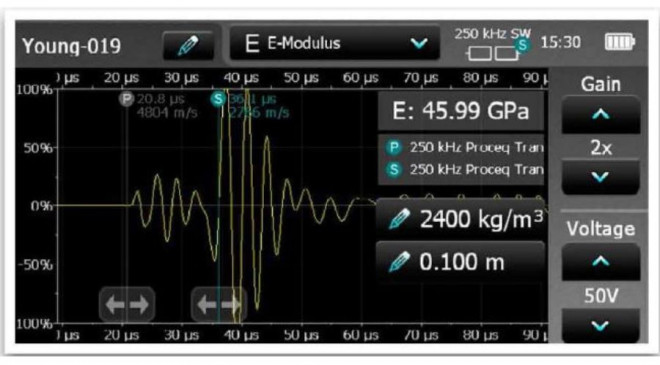

E-Modulus

Determine the dynamic E-Modulus of a material (e.g. concrete or rock) by measuring P- and S-wave pulse velocities.

  • Direct calculation of the E-Modulus on the instrument
  • Measure P- and S- Wave Velocities on the same screen (Dual Cursor)
  • Poisson`s Ratio also calculated on PL-Link Software

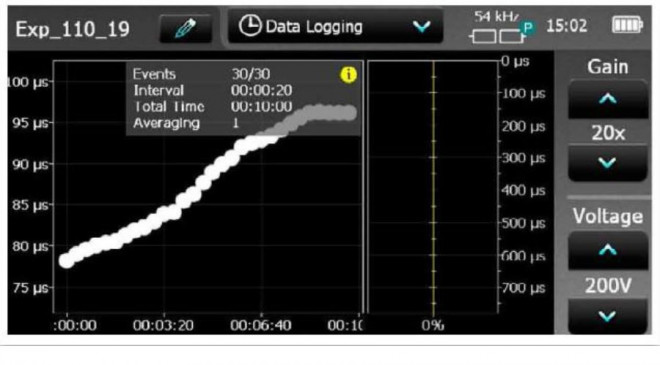

Data Logging:

Set up automated test sequences for long term measuring applications.

  • Countdown timer indicates time to next measurement
  • Pulse velocity development shown graphically on screen

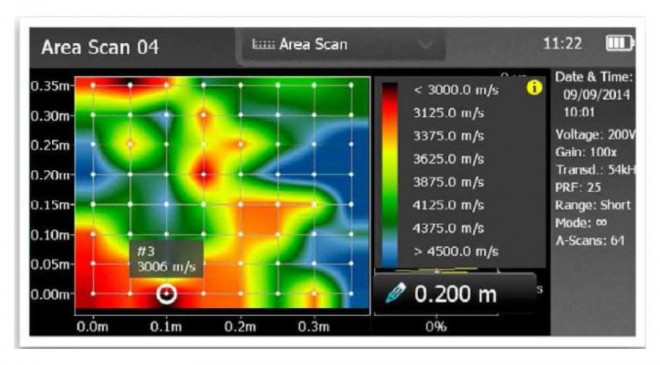

Area Scan

2D-visualization for uniformity testing on structural elements.

User definable colour classification based on pulse velocity or transmission time

User definable grid pattern for small to large scale measurements

All measurements can be edited (deleted, re-measured)

  • Direct calculation of the E-Modulus on the instrument
  • Measure P- and S- Wave Velocities on the same screen (Dual Cursor)
  • Poisson`s Ratio also calculated on PL-Link Software

Data Logging:

Set up automated test sequences for long term measuring applications.

  • Countdown timer indicates time to next measurement
  • Pulse velocity development shown graphically on screen



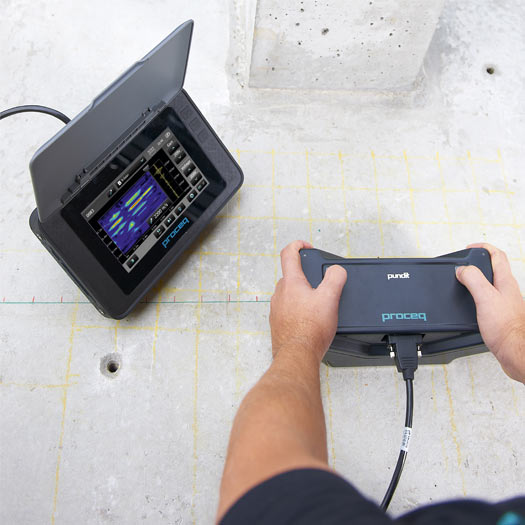

PL200-PE Measuring Modes:

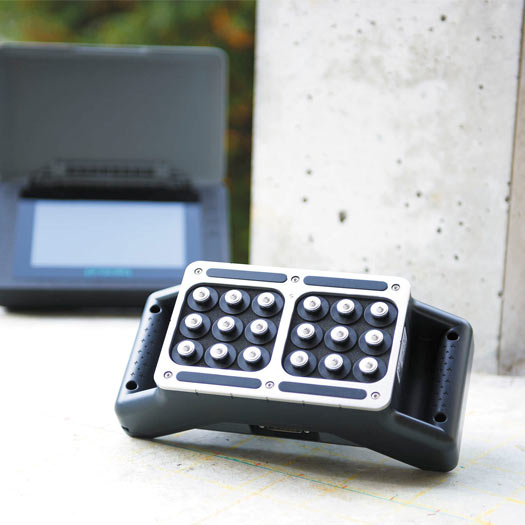

A-Scan

·   A-Scan allows direct analysis of the raw signal.

·   Digital Filters for better echo visibility and noise suppression.

·   Automatic readout of slab thickness (Echo Tracker).

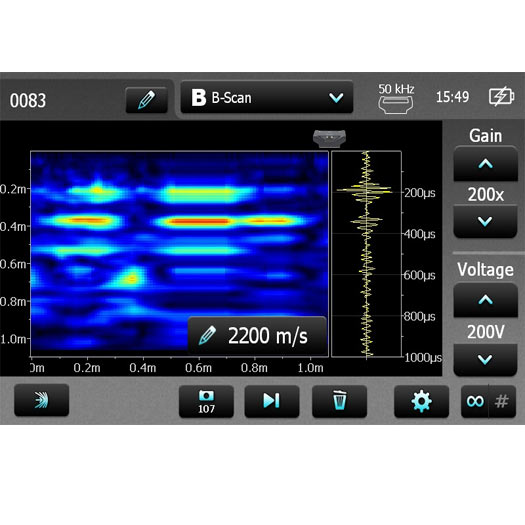

B-Scan

·    A cross-sectional view perpendicular to the scanning surface is provided. It facilitates the search of pipes, cracks, voids etc.

·    State-of-the-art image processing for improved image quality.

·   Cursor placement allows a direct readout of the slab thickness and the location of hidden objects or defects.





 PL200-PE additional measurement modes:

Area Scan:

2D-Visualization for uniformity testing of slab thickness on structural elements.

  • Direct calculation of the E-Modulus on the instrument
  • Measure P- and S- Wave Velocities on the same screen (Dual Cursor)
  • Poisson`s Ratio also calculated on PL-Link Software



Specifications
Product Specification

Range

0.1 – 7930 µs

Resolution

0.1 µs (<793  µs) ; 1 µs (>793  µs)

Display

Touch screen 7” color display 800x480 pixels

Pulse Voltage

UPV  100 – 450 Vpp

UPE   100 – 400 Vpp

Bandwidth

20 to 500 kHz

Receiver Gain

1x – 10000 x (0-80dB) [11steps]

Memory

Internal Flash memory 8GB

Regional Settings

Metric and imperial units and multi-language supported

Battery

Lithium Polymer, 3.6 V, 14.0 Ah

Battery Lifetime

>8h (in standard operating mode)

Operating Temperature

0 ̊C – 30 ̊ C (Charging, running instrument): 0 ̊ C – 40 ̊ C (charging, instrument is off): -10 ̊ C- 50 ̊C (Non- Charging)

Humidity

<95% RH, non-condensing

IP Classification

IP54

Features
Features
  • The equipment housing is designed to be used on-site in harsh environments.
  • Based on touch screen with high resolution for allowing best possible analysis of the measured waveforms.
    8GB flash memory
  • Dual core processor for supporting diverse communication and peripheral interfaces.
  • Modular and expandable with pulse velocity and pulse echo transducers.
  • Capable to determine compressive strength by using rebound indices.
  • capable for determination of crack depth.
  • calculates modulus of elasticity
  • Provides the following Scan modes:
    Line scans, E-modulus; Data Logging; Area Scan
  • Zoom and scroll function for precise A-Scan inspection
  • O board storage and review of waveforms.
  • Dual cursor manual A-scan evaluation
  • Separate cursor to measure signal amplitude.
  • Automatic and manual triggering and user adjustable trigger threshold.
  • Compatible for different frequency range transducers i.e. 24 kHz, 54 kHz (standard delivered with instrument) and 150 kHz.
