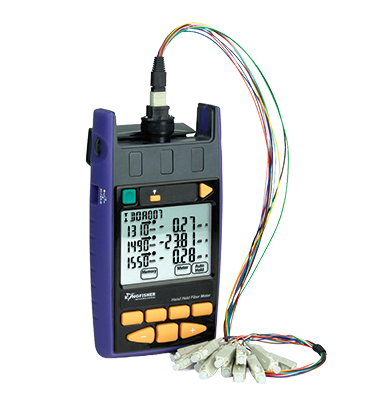

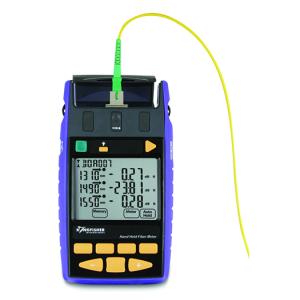

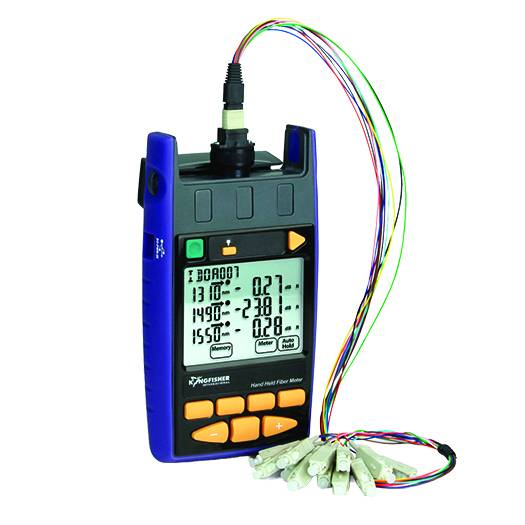

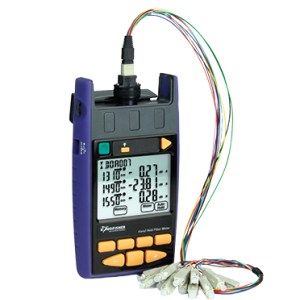

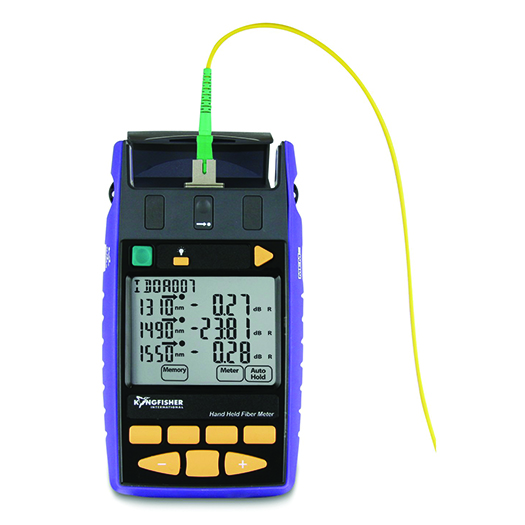

KI 2600 Handheld Optical Power Meter

The Kingfisher (Now a Tempo Company) KI 2600 Handheld Optical Power Meter is a full featured Handheld Optical Power Meter used for measuring absolute or relative light levels in fiber optic communications systems with a class leading calibration accuracy of 1%.

Autotest Technology provides fast, easy, and automatic multi λ (wavelength) loss testing up to 6 λ, with up to 3 λ displayed simultaneously, along with the respective source nominal power levels. The meter displays mW, μW, nW, dB, dBm to 0.01 dB resolution, with no range changing delays. A separate reference for each λ is stored and displayed.

Loss test results can be stored in the large memory, along with a user-input cable name and timestamp. Results can be copied onto a USB memory key with one button push. Alternatively, live readings can be put directly onto a customer report computer using KITS customizable Excel-based reporting software. Reports can be easily customized for any terminology, language, or format. KITS also provides a one-button file dump to a PC with Windows OS.

A variety of interchangeable connector adaptors from ST to LC are available SC being the default. Every instrument is provided with an ISO 17025 calibration certificate. The KI 2600 Handheld Optical Power Meter is offered in various model options including high powers upto damage levels of upto +33dBm.

Features

Reliable, rugged & versatile.
Simple to use.
Very long battery life.

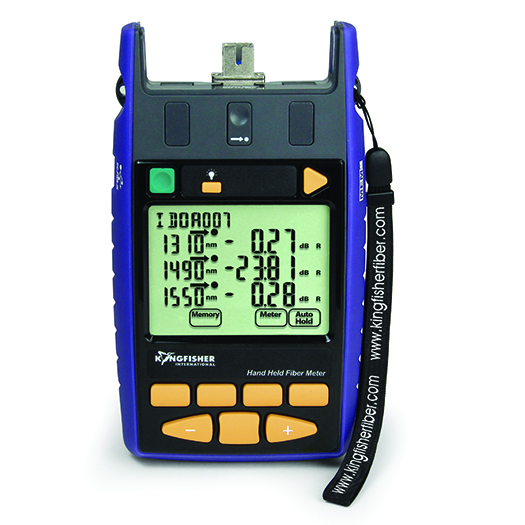

LCD is large, clear, sunlight readable & backlit.
Interchangeable connectors with dust cap/tilt bail.
Up to 25 genuine 1% traceable calibration wavelengths.
External power / charger via micro-USB port.

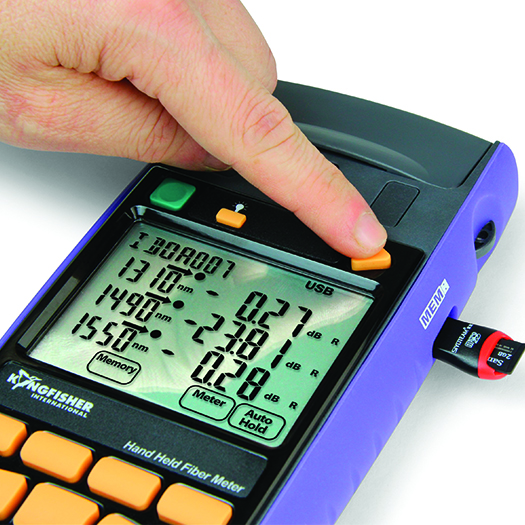

Memory with text, timestamp, and USB dump.

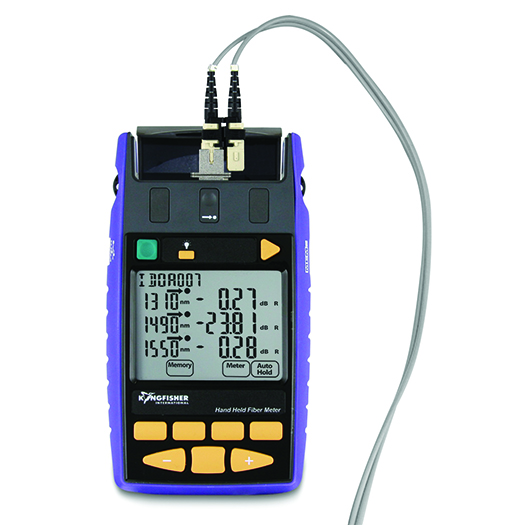

Simultaneous 3 λ loss display with Autotest source.
Flexible real-time PC reporting software.
Multi-Fiber ID tone for fiber identification.
Optional visual fault finder.
Power averaging mode for modulated signal.
Max / Min recording.
ISO 17025 traceable calibration certificate.
External power / charging via USB.

Specification

Technical Specifications:

Response nm	Damage level dBm	Calibration nm	Power range dBm	Tone & Autotest Min dBm	Midrange linearity dB	Calibration Accuracy %	Polarization Sensitivity dB	Total Uncertainty dB	Sensitivity ± 30 nm dB
InGaAs detector
600 ~ 1700	+15	780, 820, 850, 9801270, 1290, 1300, 1310,1330, 1350,1370, 1390, 1410, 1430,1450, 1470,1490, 1510, 1530, 1550, 1570, 1590,1610, 1625, 1650	+10 ~ -60 +10 ~ -70	-45 -50	0.04	1 % (0.06 dB)	< 0.05	0.3	0.2
H3B (InGaAs) detector
800 ~ 1700	+27	820, 850, 980 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650	+24 ~ -50 +24 ~ -60	-35 -40	0.04	1 % (0.06 dB)	< 0.05	0.35	0.2
H6 (InGaAs) detector (Corning SMF-28e fiber & PC or APC polish connector)
800 ~ 1700	+33	1310, 1480, 1550, 1610	+33 ~ -47	-20	0.04	5 % (0.21 dB)	< 0.05	0.35	0.2

General Specifications:

Parameters	Value
Operating / Storage Temperature	-15 to 55 °C / -25 to 70 °C
Relative humidity	0 ~ 95 %
Case	Polycarbonate / rubber edges & corners, moisture resistance, 1-meter drop tested
Dust cap	Captive, functions as tilt bail when slid open
Tone detection	150 ~ 9900 Hz ± 1 %
Memory	1000 4-λ tests with date & time in internal memory, unlimited on USB memory key
USB interfaces	USB-micro type connector for general USB & power; USB-A type connector for memory key only
Max / min	Recording feature for stability testing

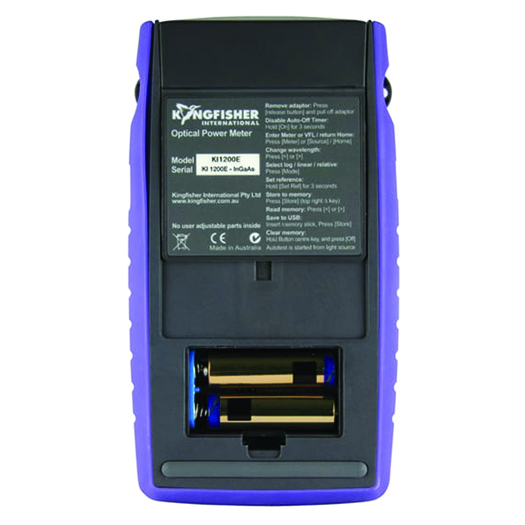

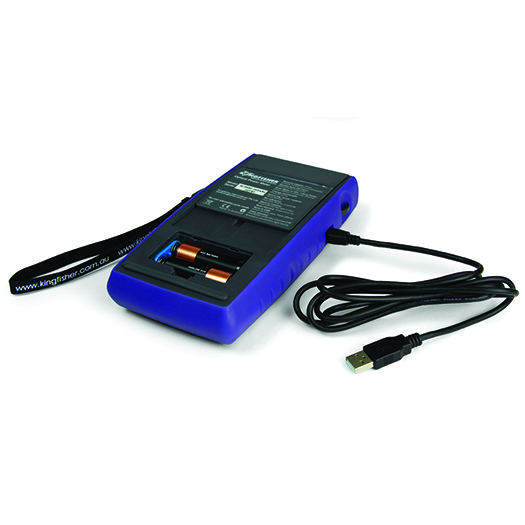

Power	2 x Alkaline / Lithium AA cells
Battery life	Up to 1000 hours laser & backlit off / 200 hours laser in blink mode
Size	190 x 105 x 35 mm
Weight	1.5 Kg
