The Digital Clamp meters featured on the following page represent professional grade electrical test & measurement instruments designed for electrical engineers, facility maintenance teams and telecom engineers.


From Mini AC clamp meters for current measurement of house wiring in congested electrical boxes to High current clamp meter with large jaw type for larger cables to the Digital Power clamp meter that allows measurement of the power factor to actual power loads, the suite featured is offered to meet any electrical testing application requirement.

Electrical Clamp Meter Selection Guide:

Type Mini Mid Flex Clamp High High Precision

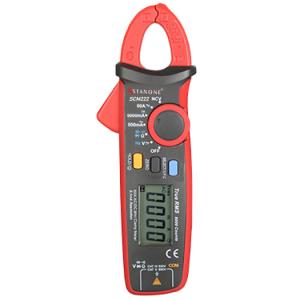

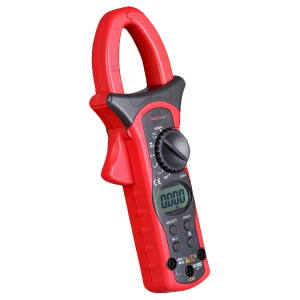

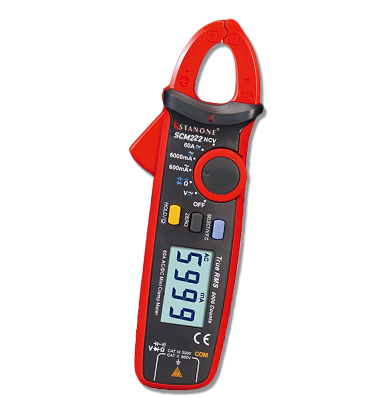

Features 201+ SCM204 205A 208B 221 SCM222
AC Current 400A 600A 1000A 1000A 2000A 60A
DC Current NA 600A NA 1000A 2000A 60A
Leakage Current NA NA NA NA NA NA
Display Count/ Mode 4000 6000 4000 6000 6600 6000
AC Frequency 50~60Hz 50~60Hz 50~60Hz 50~60Hz 50~60Hz 50~60Hz
Clamp Opening/Flex Coil Size 28mm 28mm 40mm 42mm/457mm 63mm 17mm
RS-232 NA NA NA NA NA NA
True RMS . . NA . . .
Inrush Current NA NA NA . . NA
Resolution 1mA 10mA 0.1A 10mA 0.1A 0.1mA
Auto Range . . . . . .
Measurement
AC Voltage 600V 600V 600V 1000V 750V 600V
DC Voltage 600V 600V 600V 1000V 1000V 600V
Resistance 40MΩ 60MΩ 40MΩ 60MΩ 66MΩ 60MΩ
Capacitance NA 60mF NA 60mF NA 62mF
Temperature NA 1000°C NA 1000°C NA NA
Frequency NA 10MHz 10MHz 1MHz 20MHz NA
Diode Test . . . . . .
Continuity Buzzer . . . . . .
Duty Cycle NA NA . . . NA
NCV . . NA . NA .
LOZ NA NA NA . NA NA
LPF NA NA NA . NA NA
VFC NA NA NA NA NA .
Data/ Transmission
MAX . . NA . . NA
MIN . . NA . . NA
Relative Mode NA . NA . . NA
Low Pass Filter NA NA NA . . NA
Data storage NA NA NA NA NA NA
VFC NA NA NA NA NA .
Zero Mode NA NA NA NA NA .
Current Output NA NA NA NA . NA
Display
Data Hold . . . . . .
Auto Power Off . . . . . .
LCD Backlight . . . . . .
Analog Bar NA NA NA . . NA
Other Features
Input Impedance 10MΩ 10MΩ 10MΩ ≥10MΩ ≥10MΩ ≥10MΩ
Category Safety Ratings CAT II 600V & CAT III 300V CAT II 600V & CAT III 300V CAT II 600V & CAT III 300V CAT III 1000V & CAT IV 600V CAT III 1000V & CAT IV 600V CAT II 600V & CAT III 300V
CE Certification . . . . . .
Optional 3000A Flexible CT Probe NA NA NA . NA NA
