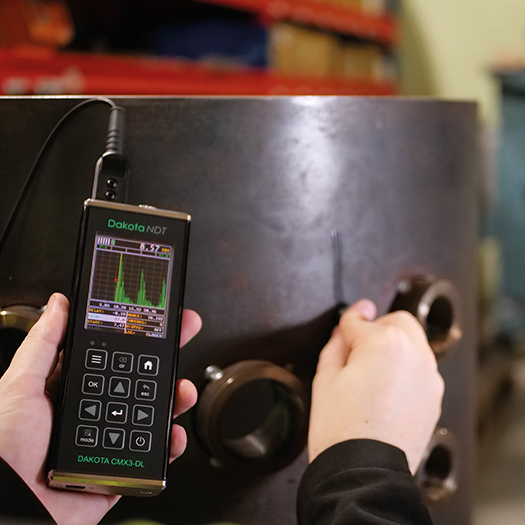

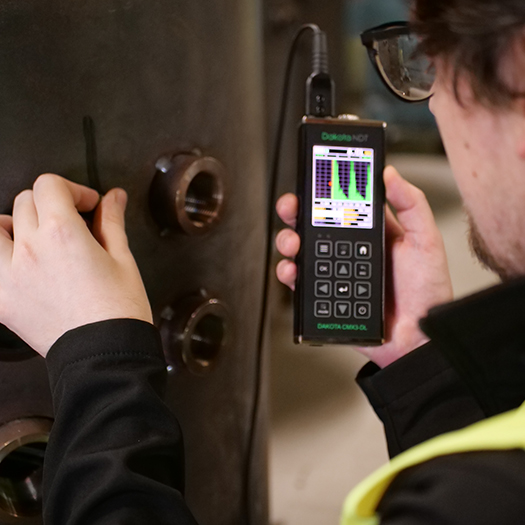

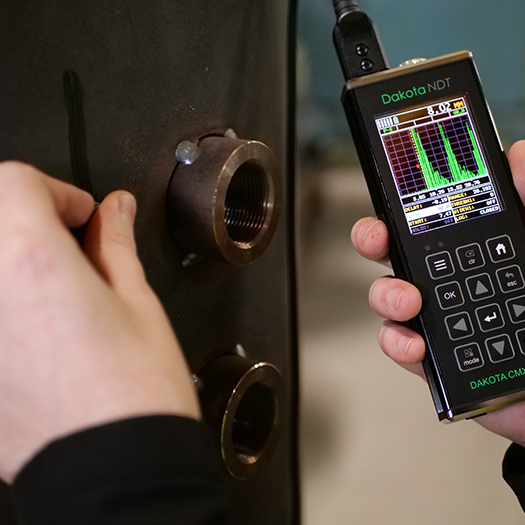

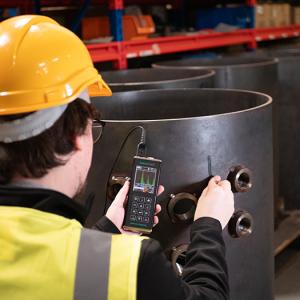

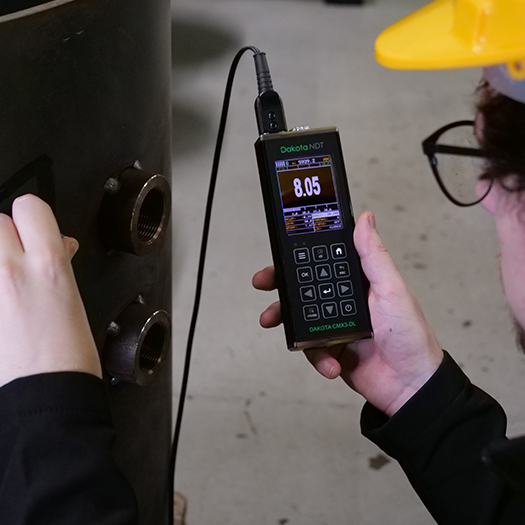

The Dakota CMX3-DL is a top-of-the-line ultrasonic thickness gauge engineered for advanced inspection of material and coating thickness in demanding industrial environments. Designed with cutting-edge A/B scan technology, it provides real-time waveform and cross-sectional visualization, enabling accurate detection of corrosion, pits, flaws, and internal defects.
Built on a powerful 100 MHz DSP platform with FPGA technology, the CMX3-DL ensures high-speed signal processing and precise measurement performance. Its dual pulser and receiver system enhances signal clarity, while features such as automatic gain control (AGC) and adjustable time-dependent gain (TDG) allow users to fine-tune measurements for complex materials.

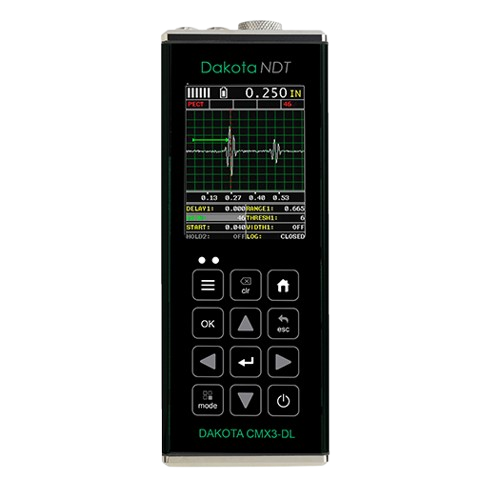

The standout feature of the CMX3-DL is its high-resolution AMOLED color display, offering superior clarity for A-Scan and B-Scan views. With a 60Hz refresh rate, it provides smooth, real-time imaging, making it easier to identify thickness variations and detect critical defects during inspection.
This enhanced visualization significantly improves decision-making, especially in safety-critical applications such as pipelines, pressure vessels, and structural components.
|
Features
|
CMX3-DL |  |
| Display Type | AMOLED Color | |
| Screen Resolution | 320 × 240 (1/4 VGA) | |
| Screen Refresh Rate | 60 Hz | |
| Visualization | Enhanced Color A/B Scan | |
| User Experience | Advanced, clearer waveform visibility | |
| Battery Life | Up to 12 hrs | |
| Platform | 100 MHz DSP | |
| Channels | Dual Pulser & Receiver | |
| Pulse Repetition Rate | Up to 250 Hz | |
| Measurement Modes | Same as CMX2-DL | |
| Gain Range | 110 dB with AGC | |
| Memory | 4 GB | |
| Transducer Support | Dual/Single (1–20 MHz) | |
| Connectivity | USB-C | |
| Build | Rugged Aluminum | |
| Best For | Advanced inspection requiring better visualization |
The CMX3-DL is a premium ultrasonic thickness gauge designed to measure coating thickness, material thickness, and corrosion levels simultaneously without removing paint or protective coatings. It is ideal for asset integrity management and advanced NDT inspections.
The CMX3-DL combines coating thickness measurement, material thickness measurement, A-Scan verification, B-Scan cross-sectional imaging, and advanced data logging in a single instrument, providing the highest level of inspection confidence.
Yes. The CMX3-DL simultaneously displays coating thickness and remaining metal thickness, eliminating the need for separate coating gauges and ultrasonic thickness gauges.
Yes. The instrument provides both A-Scan waveform display for signal verification and B-Scan cross-sectional imaging for visualizing corrosion profiles, pitting, and wall loss.
B-Scan creates a cross-sectional profile of the inspected asset, allowing inspectors to visualize corrosion patterns, pitting depth, and wall thinning over a larger area instead of relying on individual spot readings.
The CMX3-DL measures material thickness from approximately 0.63 mm to 500 mm (0.025" to 19.999"), depending on the material and probe selection.
Yes. Using Thru-Coat® and Echo-Echo technology, the CMX3-DL measures the remaining wall thickness beneath coatings without requiring coating removal.
Yes. The instrument features high-speed Scan Mode with up to 100 readings per second, automatically capturing the minimum thickness value to quickly identify corrosion hotspots.
The CMX3-DL includes extensive onboard data logging capable of storing thousands of readings, inspection grids, asset records, A-Scans, and B-Scans for long-term asset management.
The instrument features a large color TFT display that clearly presents thickness values, coating measurements, A-Scans, B-Scans, setup parameters, and inspection records.

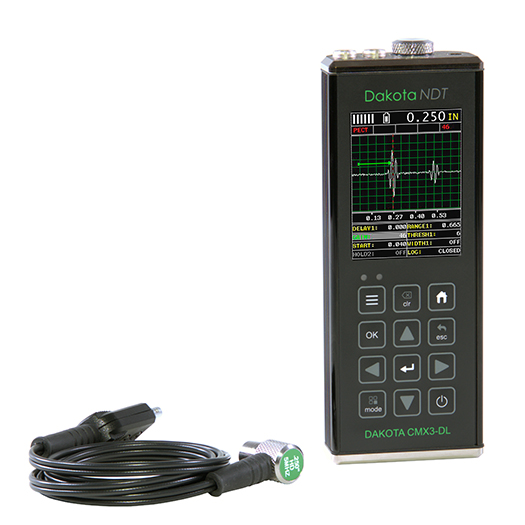

The CMX3-DL is typically supplied with a 5 MHz dual-element transducer, optimized for corrosion monitoring, through-coating inspection, and wall thickness measurements.
Yes. The combination of A-Scan, B-Scan, and high-speed Scan Mode makes it highly effective for identifying pitting corrosion, erosion damage, and localized wall loss.
Yes. The ability to measure through coatings and visualize wall loss makes it ideal for CUI inspections and long-term asset integrity programs.
Oil & Gas, Refineries, Petrochemical Plants, Offshore Platforms, Shipbuilding, Marine, Power Generation, Storage Tanks, Pipelines, and Industrial Asset Management sectors.
The CMX3-DL provides simultaneous coating and material thickness measurement, A-Scan verification, B-Scan imaging, through-coating inspection, high-speed scanning, extensive data logging, and advanced corrosion visualization, making it one of the most comprehensive ultrasonic thickness gauges available.
The CMX3-DL is a premium ultrasonic thickness gauge designed to measure coating thickness, material thickness, and corrosion levels simultaneously without removing paint or protective coatings. It is ideal for asset integrity management and advanced NDT inspections.
The CMX3-DL combines coating thickness measurement, material thickness measurement, A-Scan verification, B-Scan cross-sectional imaging, and advanced data logging in a single instrument, providing the highest level of inspection confidence.
Yes. The CMX3-DL simultaneously displays coating thickness and remaining metal thickness, eliminating the need for separate coating gauges and ultrasonic thickness gauges.
Yes. The instrument provides both A-Scan waveform display for signal verification and B-Scan cross-sectional imaging for visualizing corrosion profiles, pitting, and wall loss.
B-Scan creates a cross-sectional profile of the inspected asset, allowing inspectors to visualize corrosion patterns, pitting depth, and wall thinning over a larger area instead of relying on individual spot readings.
The CMX3-DL measures material thickness from approximately 0.63 mm to 500 mm (0.025" to 19.999"), depending on the material and probe selection.
Yes. Using Thru-Coat® and Echo-Echo technology, the CMX3-DL measures the remaining wall thickness beneath coatings without requiring coating removal.
Yes. The instrument features high-speed Scan Mode with up to 100 readings per second, automatically capturing the minimum thickness value to quickly identify corrosion hotspots.
The CMX3-DL includes extensive onboard data logging capable of storing thousands of readings, inspection grids, asset records, A-Scans, and B-Scans for long-term asset management.
The instrument features a large color TFT display that clearly presents thickness values, coating measurements, A-Scans, B-Scans, setup parameters, and inspection records.
The CMX3-DL is typically supplied with a 5 MHz dual-element transducer, optimized for corrosion monitoring, through-coating inspection, and wall thickness measurements.
Yes. The combination of A-Scan, B-Scan, and high-speed Scan Mode makes it highly effective for identifying pitting corrosion, erosion damage, and localized wall loss.
Yes. The ability to measure through coatings and visualize wall loss makes it ideal for CUI inspections and long-term asset integrity programs.
Oil & Gas, Refineries, Petrochemical Plants, Offshore Platforms, Shipbuilding, Marine, Power Generation, Storage Tanks, Pipelines, and Industrial Asset Management sectors.
The CMX3-DL provides simultaneous coating and material thickness measurement, A-Scan verification, B-Scan imaging, through-coating inspection, high-speed scanning, extensive data logging, and advanced corrosion visualization, making it one of the most comprehensive ultrasonic thickness gauges available.
