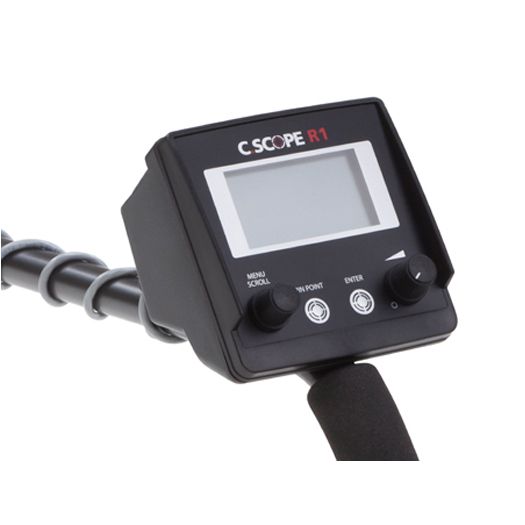

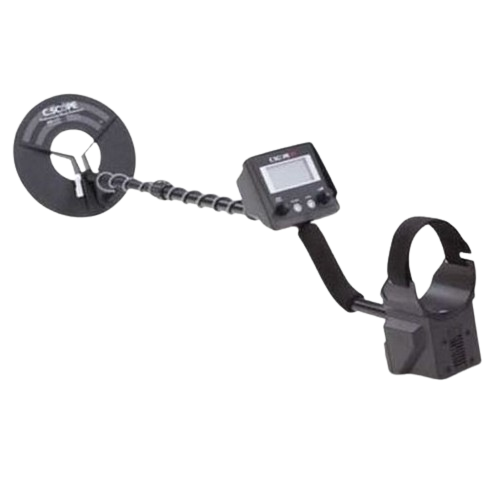

CSR1 Metal Detector

CSR1 Metal Detector is a computer aided search system. The New force R1 harnesses the power of the micro-computer to check ground conditions, optimize depth and provides target identification data all in a user-friendly lightweight design. Ideal for both novice who require adjustments and professionals who can select ‘menu options’ to tweak performance to match their personal preference.

A unique ‘Radar Simulation’ feature puts the raw signal onto the screen for visual analysis. The smart target analysis software inside the R1 can even sort targets into wanted and unwanted categories and advise the operator on whether to dig.

Two search-heads are supplied as standard, a deep seeking 25cm diameter head for general purpose detecting and a 15cm head for working around obstacles such as stubble or undergrowth. The controls can be set as required; to ‘automatic’ and the only thing you need to adjust is the volume. Change over to ‘manual’ and every aspect of R1 operation comes under your control in a menu system.

Specifications

Product Specification

Non Motion Detection YES
Motion Detection YES
Pulse Induction Detection -
Search Head Diameter cm 15-20
Shortest Usable Height cm 1.1
Maximum Usable Height cm 1.42
Polo Isocon Search Head YES
Adjustable Stem YES
Weight (incl. batteries) g 1860
Belt Mountable Control Box -
Headphone Socket Diamete 6.3
Internal Loudspeaker YES
Retune Button -
Automatic Retune YES
Discrimination YES
Meter Discrimination -
Audio Discrimination YES
Variable Discrimination YES
Beach - Inland Switch -
Operating Frequency kHz 7
Battery Type 8XAA
Typical Battery Life* hours 25-30
Guarantee** years 2+3
* Depends on usage pattern and type, Alkaline recommended
** 2 years Parts and Labour plus additional FREE 3 years parts cover
 Conditions apply. See Guarantee Form supplied with detector


Features

Features

  • Twin microprocessor control system
  • 3 operating frequencies
  • Liquid crystal display with backlight
  • Radar simulation feature
  • High speed target analyser
  • Target pin-point
  • Audio discrimination user defined programs
  • Adjustable stem
  • 8 x aa battery power
  • Socket for (optional) headphones
  • Lightweight 15cm & 25cm isocon waterproof polo search head



Product Info Downloads

Product Info Downloads

Product Information files contain the essential technical detail you need to make informed decisions on any particular product. Simply click on a title to download a PDF copy of that file. If you wish a hard copy of a brochure, technical advice on any product or a demonstration then please contact us. We're always happy to help!

Title
File Type
File Size
Last Uploaded
application/pdf
121.28 KB
September 12 2014 04:11:00
