MiM 120 Electronic Pipe and Cable Marker

MIM120 Electronic marker are passive pipe and cable marker for permanent marking and tracing of underground facilities.

MIM120 passive pipe and cable marker is an economical, compact marker that can be used in horizontal, vertical or at any angle. Built with high density PS cover and read range of 1.4 m (ideal) and 1.5m(max).

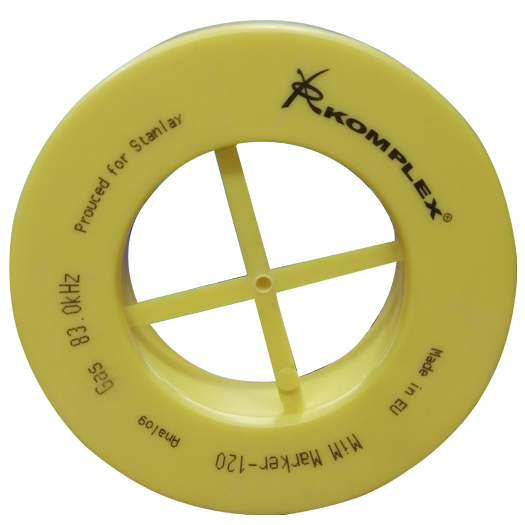

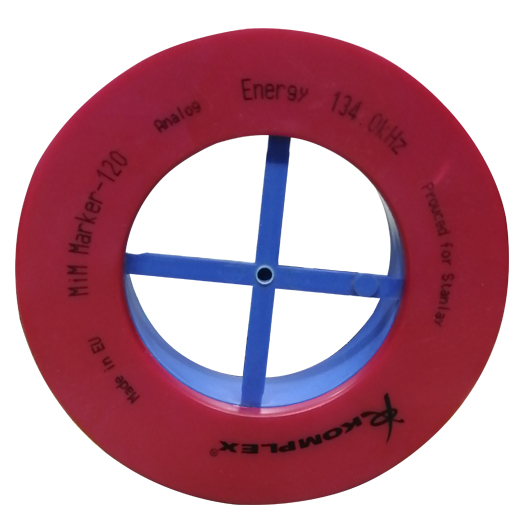

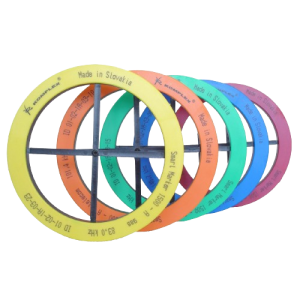

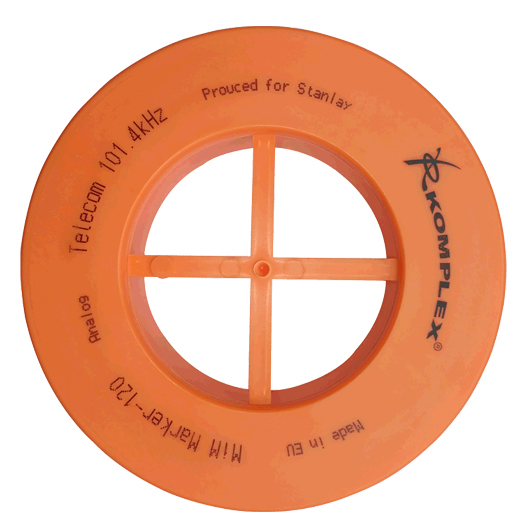

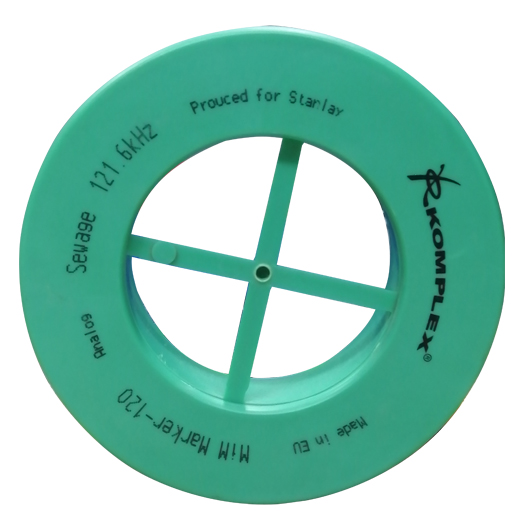

The color of marker varies with the operating frequency chosen by the user depending on the device used. The operating frequency of 101.4,145.7,121.6, 83,169.8 and 134kHz suitable for telephone cables, water pipelines, sewer pipelines, gas pipelines and power cables which corresponds to orange, blue, green, yellow and red respectively.

MIM120 Electronic marker is a sturdy marker with life of ≥ 50 years

Request Quote

Features

Compact Size
Use in any orientation: Horizontal, Vertical or at an angle
Economical

Specification

Operating Frequency (kHz)	101.4, 145.7, 121.6, 83, 169.8, 134
Material of cover	High Density PS
Dimensions	Dia: 120mm, Thickness: 34mm
Marker Read Range	1.4 m (Ideal); Thickness: 34mm
Life	≥ 40 Years

FAQ

Do you have a question which we can answer for you? Click here if Yes

What is the depth capability ?

1.4 mt (ideal) ,1.5 Mt (max)
What is the life of a Electronics marker?

more than 50 years.
Does it require battery to operate ?

these are passive marker does not require any power source.
Does soil pressure effect the life of MIM marker?

No. It has high tensile strength and soil height of 1.5 mt does not effect the marker.
Is it laek proof ?

Yes it is.
What is recommended placing of marker.

It is always adviced to keep over the untility , not under the utility.
Does colour of a marker changes over period of time?

No. colour doesn’t change over a period of time, it might fade a little.

Downloads

Title	File Type	File Size	Downloads	View	Last Uploaded
Product Datasheet	application/pdf	1.32 MB			December 17 2019 16:52:14

MiM 120 Electronic Pipe and Cable Marker

MiM 120 Electronic Pipe and Cable Marker

What is the depth capability ?

What is the life of a Electronics marker?

Does it require battery to operate ?

Does soil pressure effect the life of MIM marker?

Is it laek proof ?

What is recommended placing of marker.

Does colour of a marker changes over period of time?
