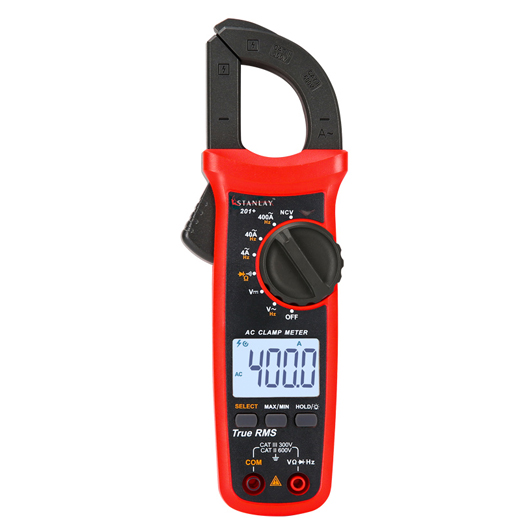

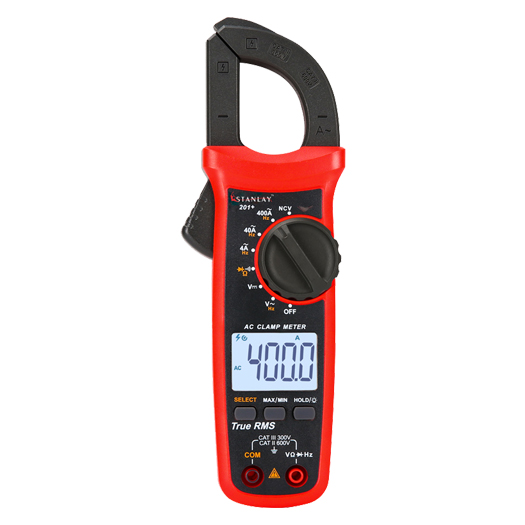

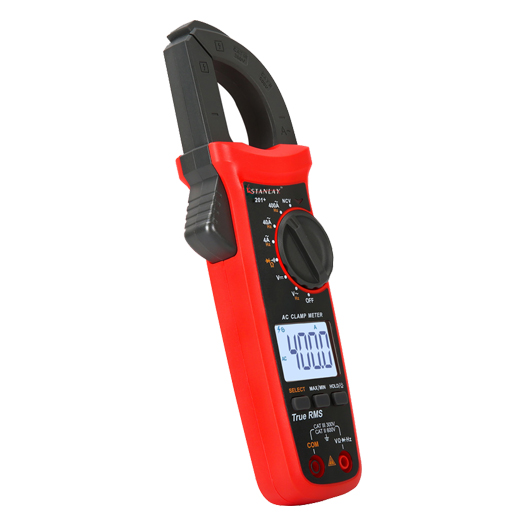

AC Digital Clamp Meter 201+

201+ true RMS AC clamp meter is a high range, high accuracy instrument for measuring current on closely spaced wires in electrical distribution boxes. The backlight digital display allows use in dark spaces. 201+ tong tester provides AC current & voltage measurement, AC frequency measurement, DC voltage & resistance measurement.


201+ mini AC clamp meter also provides non-contact voltage measurement ( NCV) that allows technician to check which MCB's, plug points or wires are energized by simply placing next to the electrical installation.
An indispensable tool for the electrician.

Specifications
Product Specification

Measurement Unit

Range

Accuracy

AC Current (A )

0.0 4~400

±( 2% + 10)

AC Current Frequency ( Hz)

50 ~100

± (1% +5)

AC Voltage ( V)

600

±( 0.8% +5)

AC Voltage Frequency (Hz)

10 ~10000

± (1% +5)

DC Voltage ( V)

600

±( 0.5% +2)

Resistance (MΩ )

40

±( 0.8% +2)

Features

Display Count

40 00

Jaw opening

28mm

Power

1.5V batter y (R03) x 2

Display

37mm x 25mm

Size / Weight

215mm x 63mm x 36mm / 248g

Standard accessories

2 batteries, test lead s, carry bag, manual

Features
Features
  • Data hold, auto power off, MAX mode
  • True RMS, Auto range
  • NCV enabled
  • Continuity Test, Diode
  • Low battery Indication
  • Large LCD backlit screen


Product Info Downloads
Product Info Downloads

Product Information files contain the essential technical detail you need to make informed decisions on any particular product. Simply click on a title to download a PDF copy of that file. If you wish a hard copy of a brochure, technical advice on any product or a demonstration then please contact us. We're always happy to help!

Title
File Type
File Size
Last Uploaded
application/pdf
1.22 MB
August 28 2020 15:51:45
