Removable Pressure Transducer

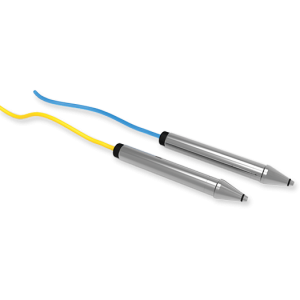

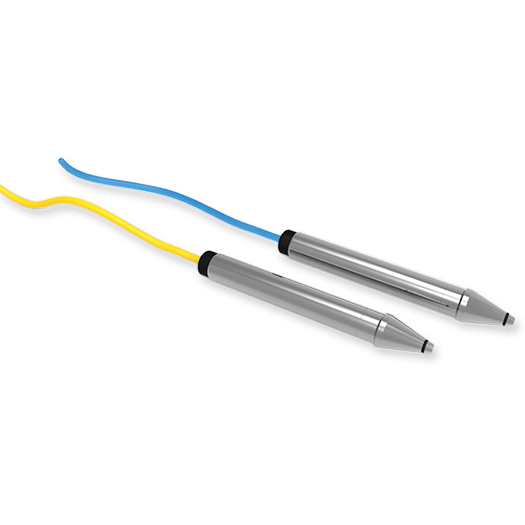

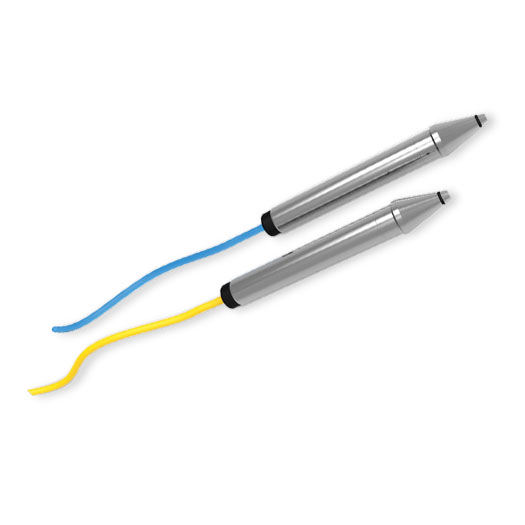

The Sisgeo Removable Pressure Transducer is designed for long-term pore-water pressure monitoring, particularly in geotechnical applications. It connects to a Casagrande filter tip, allowing easy removal for calibration checks.
The transducer is suitable for use in embankments, dams, landslides, and slope monitoring. It comes in two variants: vibrating wire and piezo-resistive technology. The unit features built-in surge protection, temperature sensors (for vibrating wire models), and high durability with stainless steel construction. It ensures reliable readings with minimal temperature drift and is resistant to environmental factors.
The Removable Pressure Transducer is ideal for use in areas prone to lightning, as it can be easily replaced for maintenance. The range of applications includes ground pore pressure measurements, landslide monitoring, and long-term environmental monitoring.

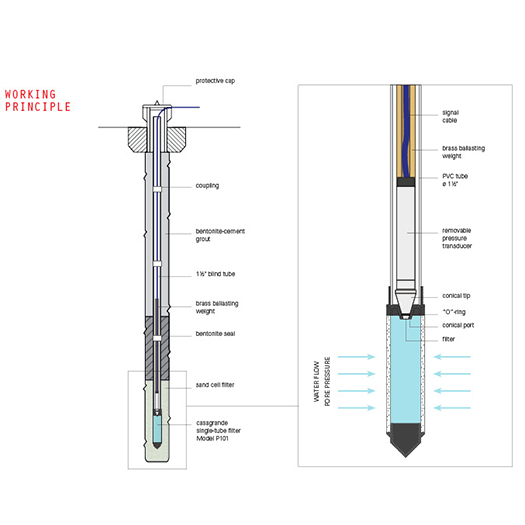

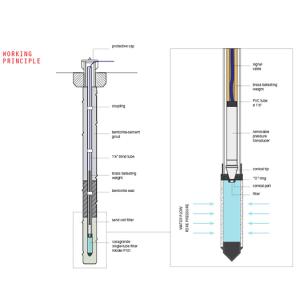

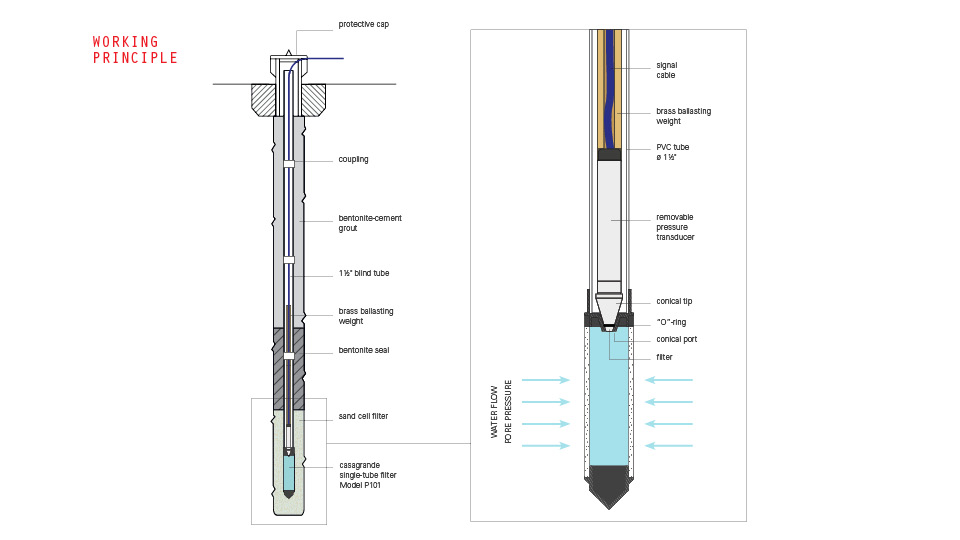

Working Principle:
The Sisgeo Removable Pressure Transducer works on the principle of measuring pore-water pressure in the ground. The device is connected to a Casagrande filter tip, which filters out solid particles and allows water to flow through. The transducer then measures the pressure exerted by the water, which is directly related to the ground's pore-water pressure.
- Piezo-resistive or Vibrating Wire Technology: The Removable Pressure Transducer is available with either piezo-resistive or vibrating wire technology. In piezo-resistive models, the pressure alters the resistance of a strain gauge, which is converted to an electrical signal. In vibrating wire models, the pressure causes a change in the frequency of vibration of a wire, and this change is measured to determine the pressure.
- Surge Protection: The transducer is equipped with built-in surge protection to safeguard against electrical interference.
- Temperature Compensation: The vibrating wire models include a built-in temperature sensor to compensate for temperature-related drift, ensuring accurate readings over time.
This design allows for accurate, long-term monitoring of ground conditions such as embankments, dams, and landslides, providing valuable data for geotechnical applications.
Typically, the user should select bill of materials based on deployment scenario:
- Pressure Transducer: Main sensor for measuring pore-water pressure. Available in vibrating wire or piezo-resistive technology for accurate readings.
- Casagrande Filter Tip: Filter tip used for water filtration, ensuring only water enters the sensor while blocking particles.
- Data Logging Interface: This is the interface that allows the piezometer to connect with compatible data loggers for data collection and monitoring.
- CRD-400 READOUT: CRD-400 is a new generation multipurpose readout designed to take readings of all instruments including vibrating wire.
- OMNIAlog Datalogger: Centralized data collection for remote monitoring and analysis.
- MIND Portable Readout: A compact, multichannel readout unit for local readings of Sisgeo instruments.
- WR-Log Wireless Node: Wireless data transmission and remote monitoring through the node.
- CDL Dataloggers: CDL is a family line of durable, water resistant easy-to-use portable readout which includes Galileo and New Leonardo dataloggers.
Applications of Removable Pressure Transducer
- Long-term monitoring of ground conditions.
- Suitable for areas prone to lightning due to its ability to be replaced.

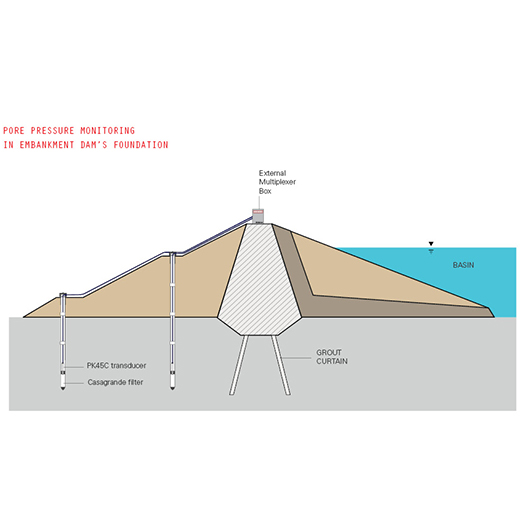

- Dams and embankments to monitor pore-water pressure.
- Ground pore pressure measurement in various soil and rock conditions.

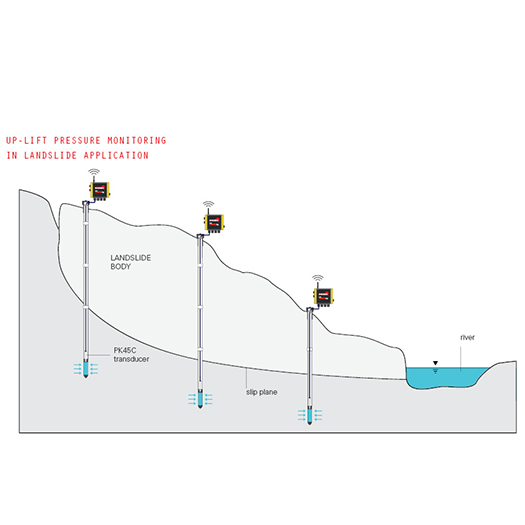

- Landslide monitoring to track pressure changes and prevent disaster.
- Natural or cut slope sites to assess stability.
