KI TK054 Plastic Optical Fiber Test Kit

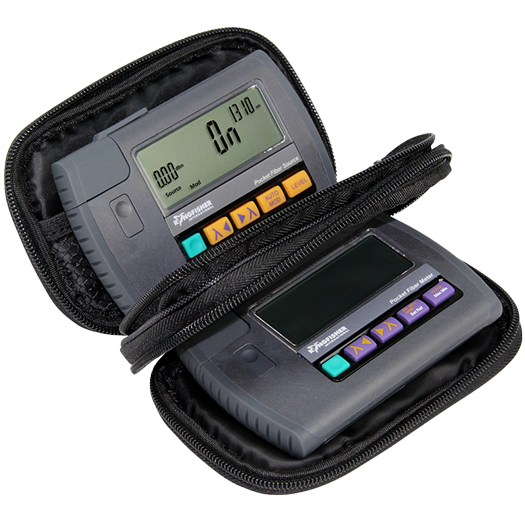

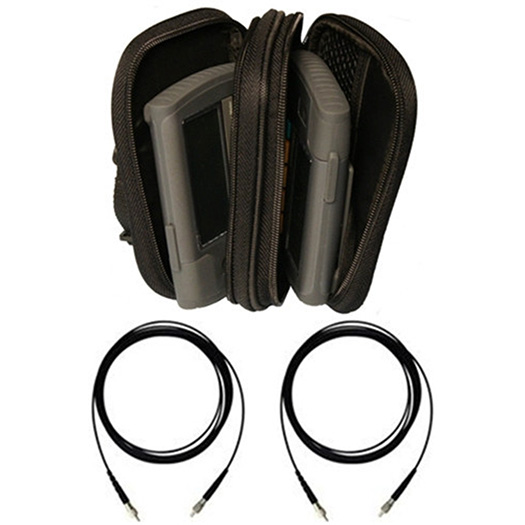

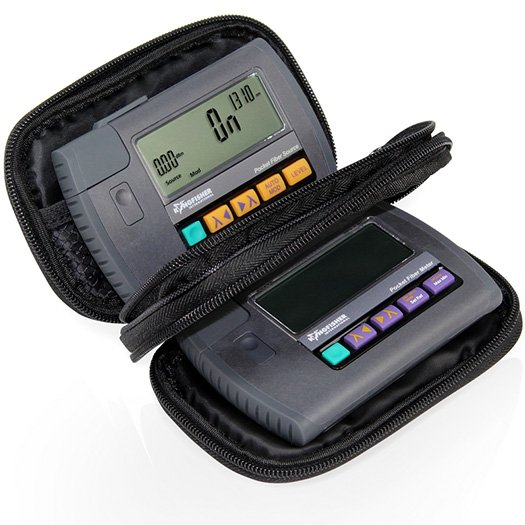

The Kingfisher (Now a Tempo Company) KI TK054 Plastic Optical Fiber Test Kit is a plastic optical fiber (POF) Pocket 9000 FiberTester that combines KI9809AM 660 nm LED light source, and KI9600XL-Si5 power meter with a 5.0 mm large area Si detector. The kit also includes OPT678 HFBR adaptor for light source & OPT231 HFBR adaptor for optical power meter. Calibrations are ISO 17025 traceable.

The interchangeable adaptor of the light source with wide spectrum of +/- 20nm allows the end user to connect the test kit to an optical link with a variety of POF connector types.

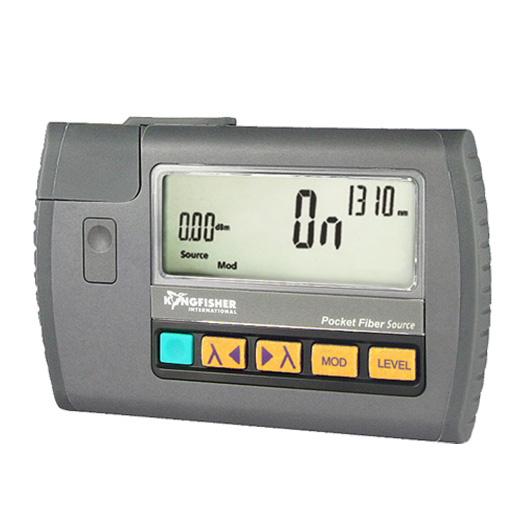

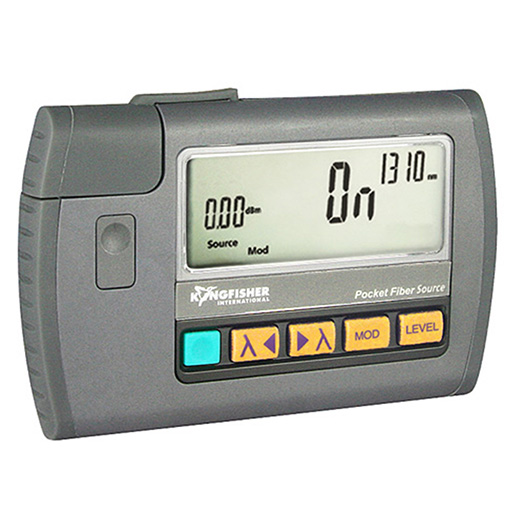

The light source test tone function can be used with a compatible optical power meter for fiber detection, continuity testing and fault finding. The long battery life eliminates the requirement for rechargeable batteries and time-consuming re-charging procedures.

Overall, The POF Pocket 9000 FiberTester Kit KI-TK054 is a high performance, cost-effective testing kit designed for plastic optical fiber (POF) up to 1 mm core diameter, large core 200/230 and 400/430 Plastic Clad Silica (PCS) fiber at 650/660 nm.

Request Quote
KI TK054 Plastic Optical Fiber Test Kit
Features Specifications FAQ Downloads



Features
  • Large 5 mm Si detector ideal for POF and PCS testing
  • Calibrations at 8 wavelengths
  • ISO 17025 traceable calibration certificate
  • Industry standard screw-on connector adaptors for meter
  • Interchangeable adaptor for light source
  • Optical Test Tone Detection
  • Long battery life
  • Compact, rugged & light weight
  • Max / min recording
  • Sunlight readable display
  • Made in Australia
Specifications

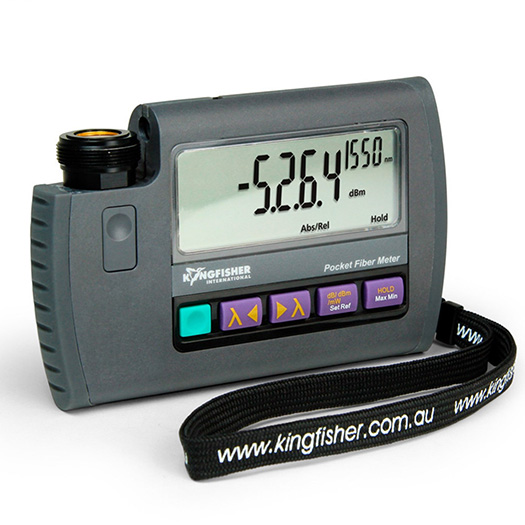

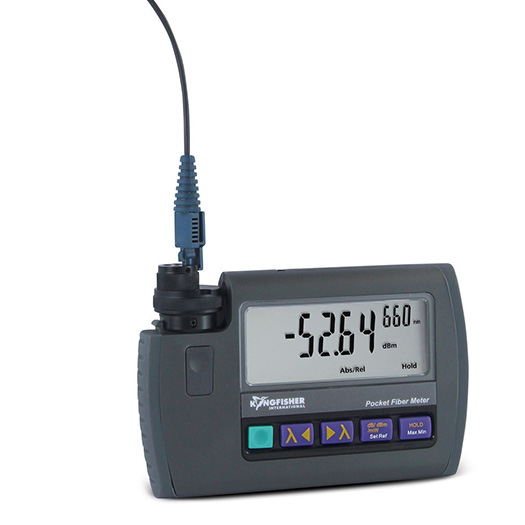

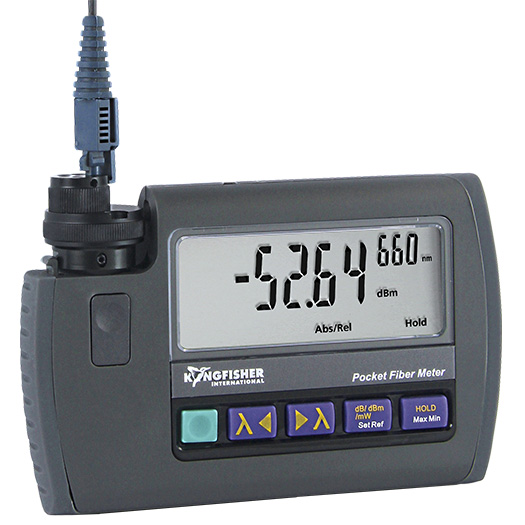

KI9600XL-SI5 Power Meter Specifications:

Detector

type

Response

nm

Damage

level

dBm

Calibration nm

Power range

dBm

Midrange

Linearity dB

Calibration

Accuracy

%

Sensitivity

 30 nm dB

Polarization

Sensitivity

dB

Total

Uncertainty

dB

5.0 mm Si

350 ~ 1100

+10



470, 520,

635, 650, 660, 780, 820,850, 980

+5 ~ -50



+5 ~ -60

0.04

2%

(0.09 dB)

0.03

< 0.005

0.3



KI9809AM Light Source Specifications:

Parameter

Value

660 nm LED

Output Power (Fiber Type)

-6 dBm (1 mm POF)

Short term stability, dB

0.01

Stability over temp, dB

0.35

initial tolerance, nm

15

width, nm

25

Modulation

270 Hz, 1 KHz, 2 KHz



General Specifications:

Parameter

Value

KI 9600XL-Si5 Power Meter

Battery life

300 hours

Tone detection

200 - 2500 Hz ±2 %

Max/min

Recording feature for stability testing

Connector Interface

Mounting screw thread 7/8” 28 TPI – UN - 2B

KI 9809AM Light Source

Battery life

35 hours in Autotest, typical

Connector interface

SC/Hybrid interchangeable adaptor

Common

Size

124 x 81 x 25 mm

Weight per unit

0.15 kg

Operating/Storage temperature

-15 to 55 °C / -25 to 70 °C

Case

Polycarbonate, 1-meter drop tested

Power

2 alkaline AAA cells. Selectable auto-off, low battery indicator
