The STLOC10 Pathfinder Pipe & Cable Tracer

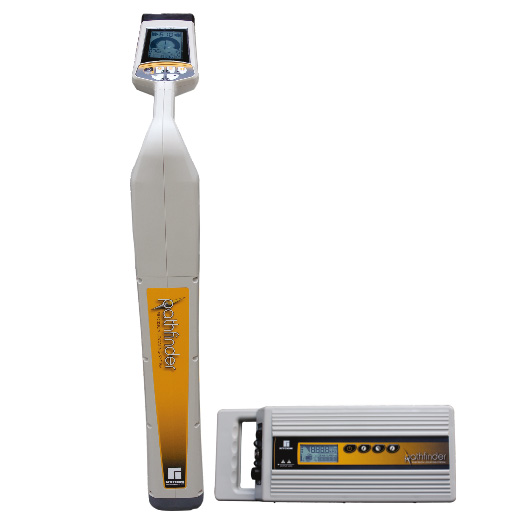

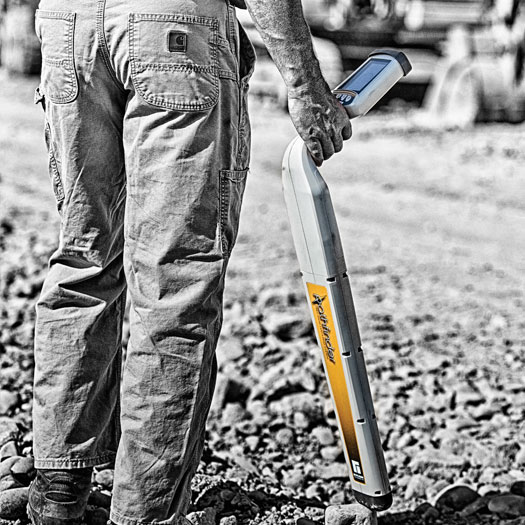

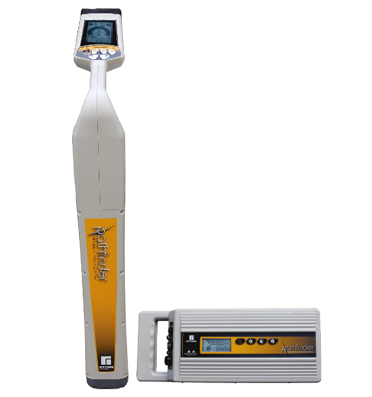

The STLOC10 Pathfinder Pipe & Cable Tracer based on SAF technology with a 3D array antenna is designed to provide the operators a cable route tracer that can be utilized for cable & pipe route locating in the most congested utility environment for long distance tracing of pipe or cables.

The high-power precision cable pipe locating system is ideally suited for precision route tracing of buried armored telecom, OFC, power cables & pipes installed at high depth and HDD installations of telecom fiber optical cable & power cables.

STLOC10 Pathfinder Pipe & Cable Tracer is a multi – frequency locator that provides the operators the option to add or delete frequency options based on field requirements ranging from 200Hz to 476.2kHz & higher to allow the operator choose low to high frequency most ideal for injecting into a specific utility locating environment. The user can configure up to 36 available frequencies.

The Pathfinder Transmitter provides up to 12 watts of output power when used with the Pathfinder Receiver provides the operator with the capability to perform medium to long distance tracing ranging up to 20 kms or even higher depending on cable type (attenuation) and transmitter option chosen and measure depth of utility. The 12 watt of power allows utilities even at higher depth of ≥ 5 meters to be located.

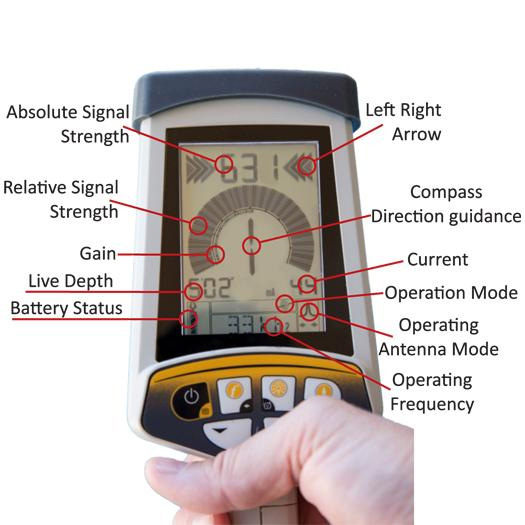

The Pathfinder STLOC10 with its large LCD display provides the operator compass based orientation, left-right arrow for guidance, live current measurement & cable depth with respect to buried cable being traced allowing the operator to trace a specific buried cable at walking speed with efficiency & accuracy.

The Pathfinder cable route locator is ideal for telecom companies, railways, oil/gas companies or industries with existing buried pipes & cables that require the route to be located for maintenance & operation activities.

Features

Multi-frequency locator that provides the operators the option to add or delete over 36 frequency options based on field requirements ranging from 200Hz to 476.2 kHz, to allow the operator choose low to high frequency most ideal for that specific utility locating environment.
Route tracing of Medium to Long Distance Cable or Pipe Routes, with High Accuracy
Route tracing & measure depth of cables or pipes at relatively high depth, typical of HDD installations.
Perform route tracing of armoured optical fiber cables – Fast!
Detect buried energised power cables.
Detect a variety of buried metallic pipes & energized power cables, prior excavation.
Built in signal current measurement for identifying specific utility from utilities running parallel/ alongside. Optionally signal current direction frequencies can be configured.

Specification

Pathfinder Technical Specifications:

Parameters	Pathfinder STLOC10
Transmitter Mode Available Operating Frequencies (Active)	>36 User configurable frequencies: 200Hz, 256Hz, 273Hz, 340Hz, 400Hz, 460Hz, 512Hz, 560Hz, 570Hz, 577Hz, 640Hz, 760Hz, 797Hz, 815Hz, 870Hz,920Hz, 940Hz, 1.01kHz, 1.02kHz, 1.10kHz, 1.45kHz, 4kHz, 8.192kHz, 8.4kHz, 8.9kHz, 9.8kHz, 29kHz, 33kHz,51kHz, 65kHz, 82kHz, 83kHz, 93kHz, 116kHz, 118kHz, 131kHz, 145kHz, 200kHz, 262kHz, 478kHz
Passive Modes	Power Mode : 50Hz & 60Hz Live Sound , Radio Mode (RF) , Rectified CP
Power Filters	Built in
Power Harmonics	50Hz, 60Hz, 150Hz,180Hz, 250Hz, 300Hz, 350Hz, 420Hz, 450Hz, 540Hz
Current Direction	Up/ Down Current Direction with built in CD frequency
Antenna	3D Antenna Array
Antenna Mode	Simultaneous peak/null (dual horizontal antennas & vertical antenna), pin-point peak (dual horizontal antennas), directional guidance, peak (single horizontal antenna) & null (single vertical antenna)

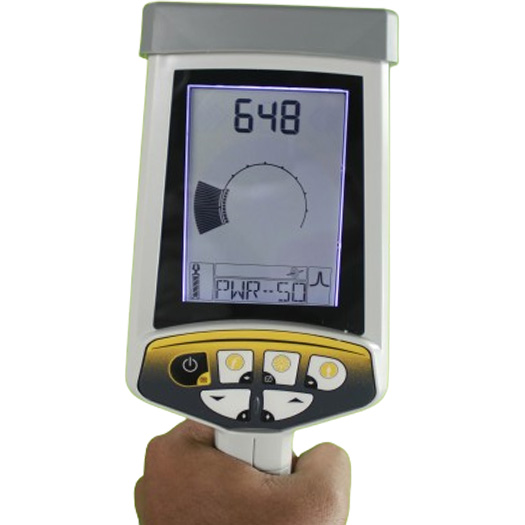

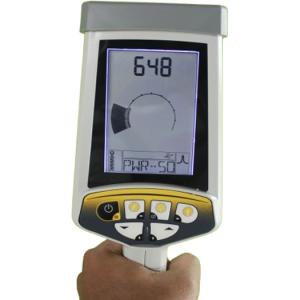

Display Indicators	Backlit segmented LCD bar graph, battery condition, continuous mode signal strength, depth measurement, line orientation, left /right line guidance, operating mode, volume level & function indicators
Navigation features	Left Right Arrow, Compass Mode for Orientation, for Cable Route & Identification
Push Button Selection	6 Buttons for Power, Frequency, Mode selection, Shift/Log/Depth/P-Link, Gain or Up & Down. Shift button allows for selection of “Optional**” functions such as Remote transmitter control connectivity, GPS On/Off
Audio Indication	Variable pitch & Tone change (solid / pulsed) on either side of target utility, 4 volume selections including mute
Vibration	Vibrating handle
Current Measurement	Display indicates relative current
Display	Large LCD Display, Backlit, (4” Diagonal, 2.5” x 3.1”)
Power Source	Lithium-Ion Rechargeable battery
Battery Life	Continuous: 30 hours Intermittent: 82 hours
Signal Strength	LCD bar graph, absolute signal strength 0-999
Gain Control	Manual gain adjustment & automatic centering
Dynamic Range	126 dB
Interference protection from high tension lines	Automatic Overload Protection
Depth Measurement	DIGITAL: 3-digit LCD readout .02m-10.6m \| Optional: 20m \| Accuracy: ± 3% (Depending on Frequency & depth)
Units	Metric / Imperial, based on user selection
Live Measurement	Depth & Current, simultaneous at user option
Operating Temperature	-20º C to +55º C
Dimensions \| Weight	77cm x 24cm \| 1.79kg ± 0.1kg
Environmental	IP65 water & dust proof
Optional features*
Data logging	>=10000 data logs (2GB SD Card) or higher

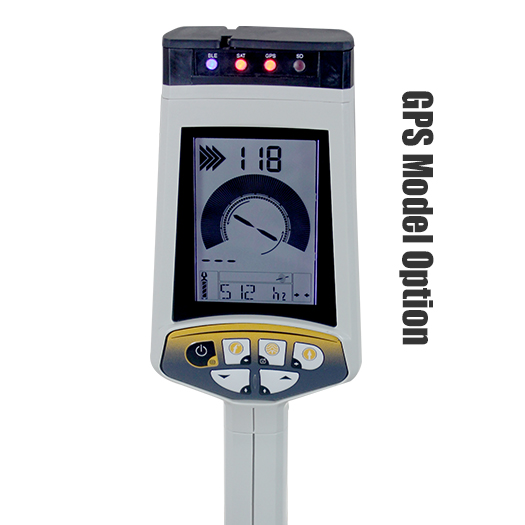

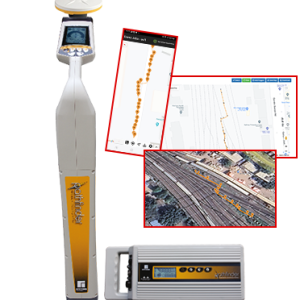

Built-in GPS	Breadcrumb data + Specific locations logs.
Communication	2GB Or higher SD Card, Mini USB Port*
Wireless Communication	Bluetooth*
Optional feature**	Pathlink: enables the user to remotely control the transmitter using the receiver. The frequency and power output of the transmitted signal can be controlled up to 800 meters.

Optional features:

* will result in model change to STLOC10 GPS (or STLOC5 GPS).

** Pathlink: is a non-standard optional feature which should be specified as custom requirement.

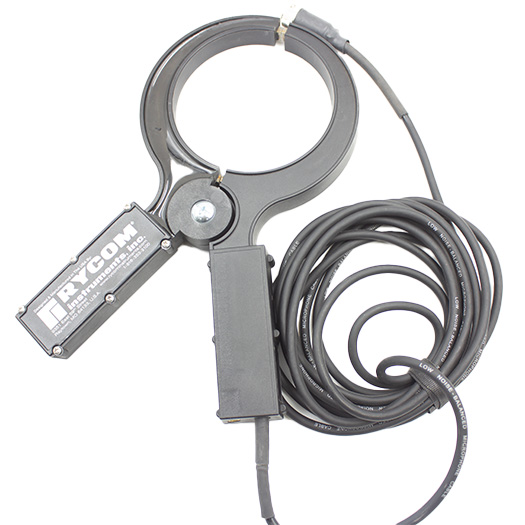

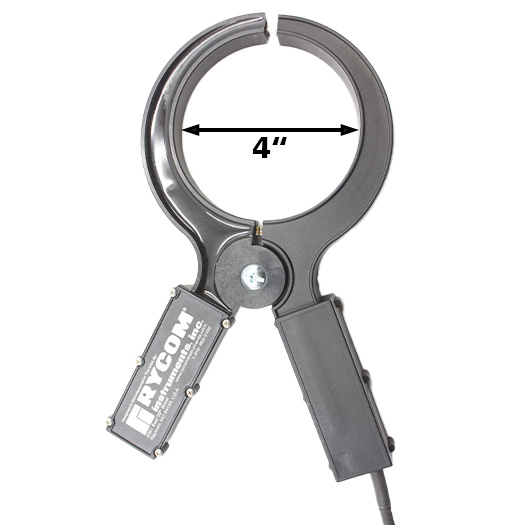

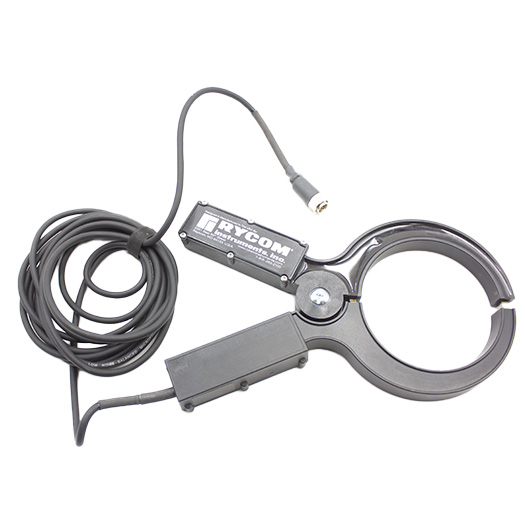

Transmitter Technical Specifications:

Model Options	Pathfinder Transmitter
Max Output power	12W
Active line frequencies	Upto 36 user configurable frequencies: 200 Hz, 256 Hz, 273 Hz,400 Hz, 512 Hz, 560 Hz, 570 Hz, 577 Hz, 640 Hz, 760 Hz, 797 Hz,815 Hz, 870 Hz, 920 Hz, 940 Hz, 1.01 kHz, 1.02 kHz, 1.1 kHz,1.45 kHz, 4 kHz, 8.192 kHz, 8.4 kHz, 8.9 kHz, 9.2 kHz, 32.768 kHz,65.53 kHz, 82.70 kHz, 83.00 kHz, 93 kHz, 116 kHz, 117.850 kHz,1131 kHz, 145 kHz, 200 kHz, 262 kHz, 476.2 kHz + 3 Dual frequencies: 815Hz /82kHz, 82kHz/33kHz, 8Hz/82kHz
Load matching	Automatic 5 to 25000 ohms
Display	LCD
Indicators	AC load assistance measurement, relative ohms, voltage, live voltage output, current output, frequency, mode, battery indication alert, low battery indicator audio/visual with modulated low battery warning transmitted to the receiver
Output power setting	10 power settings Low & Medium Frequency Range: 0.2 to 12 Watt (<8kHz); 10 Watt (8 to 44kHz)
High Power Output Mode	Yes, Voltage Boost upto 130 Volts

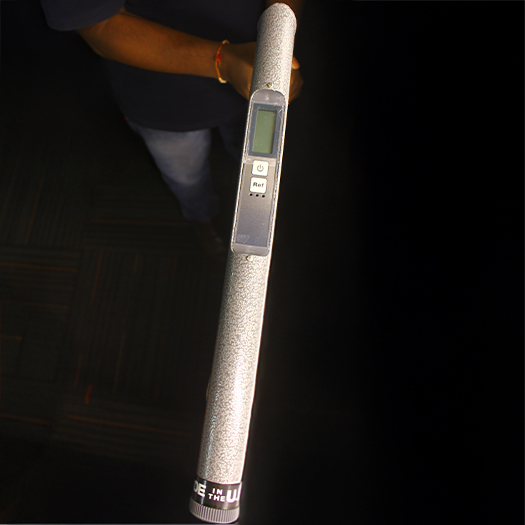

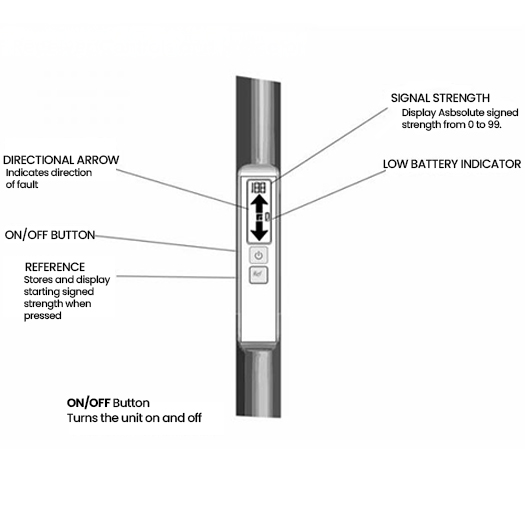

DFF mode	Yes, DFF Mode can be used for sheath fault locating if earth return probe (A frame is purchased separately)
Power source	Rechargeable Li-ion Batteries, 10.8V Li-ion battery charger included
Operating time	Continuous: 8 ~20 hours depending on load, frequency, power setting. Intermittent: 40 ~60 hours
Weight	2.49kg
Size	41 cm x 16 cm x 12 cm
Operating Temperature	-20°C to 55°C
Environmental rating	IP65
