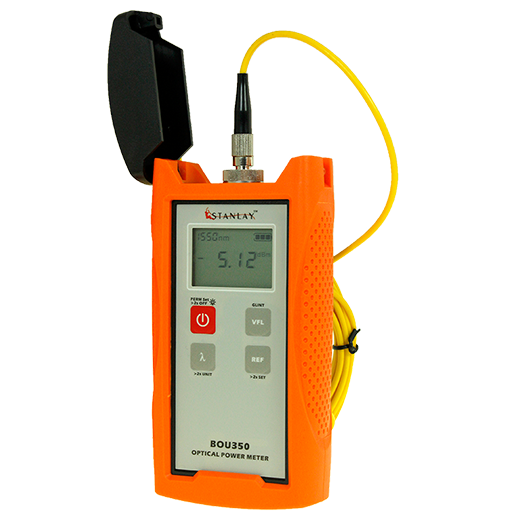

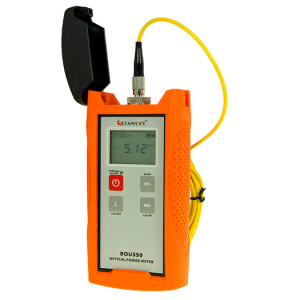

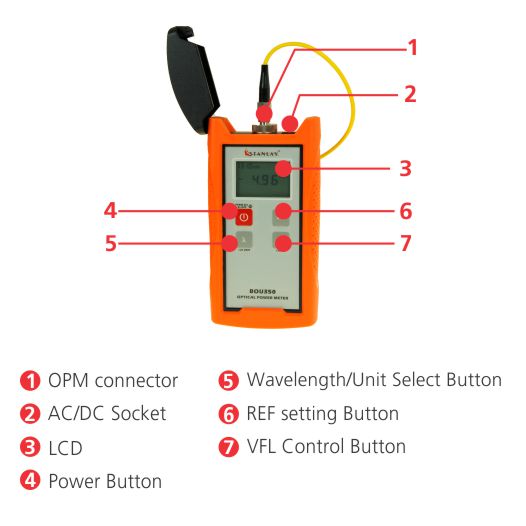

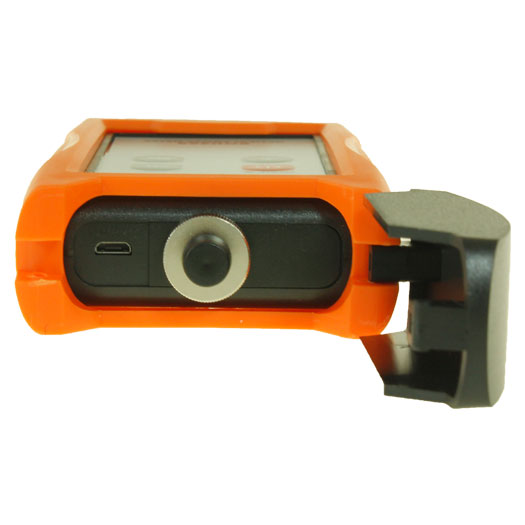

BOU350 Optical Power Meter

Multi-Wavelength Optical Power Meter

BOU350 Optical Power Meter is an economy highly stabilized multi- wavelength Optical Power Meter available in Telecom and CATV model options for measuring received optical power in an optical fiber cable network. BOU350 has 850 / 1300 / 1310 / 1490 / 1550 / 1625 nm operating wavelengths

Equipped with a energry saving mode, >100hr operation and reference value storage the BOU350 is an ideal instrument for long field operations.

BOU350 Optical Power Meter is compatible with (FC & SC) adaptor 2.5mm UPP connectors. 10mW VFL available optional. BOU350 is a professional optical power meter at a value price.





Specifications
Product Specification

Module Options

BOU350+

T

C

Display Range

1310/1490/1550/1625: +10~-70dBm

850/1300: +10~-60dBm

1310/1490/1550/1625: +26~-50dBm

850/1300: +26~-40dBm

Accuracy

± 0.2 dB

Wavelength (nm)

850/ 1300/ 1310/ 1490/ 1550/ 1625

Resolution

0.01dB

Connector Adaptor *

FC & 2.5mm UPP (Optional: SC,ST) *

REF

Yes

Display

LCD display, Backlit

Automatic Power Off

Yes (settable 1 to 10 minutes)

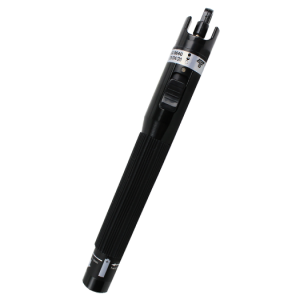

Visual Fault Locator (Optional)*

Output power: 10mW (8-10km)

Battery Charge

Yes

Battery Life

Above 100 hrs

Size (mm)

160 x 75 x 32

Weight (g)

About 180

Storage/ Operating Temperature/

Relative Humidity

-20°C to +60°C/ -10°C to +50°C/ < 90%RH

Power supply

AA*2 batteries or AC/DC power supply (*Additional cost)

Standard Accessories

Carrying bag, calibration certificate, Manual, FC/UPC or SC/UPC connector

(connector to be specified at time of ordering)

Optional Accessories

Connector Adaptor: SC,ST and AC/ DC Adaptor

* To be specified at time of ordering

Features
Features
  • FC, SC, ST adaptor options* and 2.5mm UPP
  • Energy save mode
  • 10mW VFL (optional*, to be specified at time of ordering)
  • Reference value storage
  • Upto 100 hours operation on a set of batteries
  • 850 / 1300 / 1310 / 1490 / 1550 / 1625 nm operating wavelengths
  • Three-year recommended calibration interval
