Electronic Markers and Locators

Electronic Markers and Locators

Compare up to 3 Products

Electronic marker system makes the job of permanently marking and unique identification and locating of your underground utility assets easier. With no batteries required to power up.

Electronic route markers featured have a minimum lifetime of 50 Years and if buried with utility assets at time of installation will ensure that utilities buried in ground such as Telecom cables or Manholes, Gas Pipes, Water Pipes or valves, Connection points or other important buried services remain traceable for decades. Choose between Passive electronic markers and RFID electronic markers.

Find our wide range electronic marker system detail below.

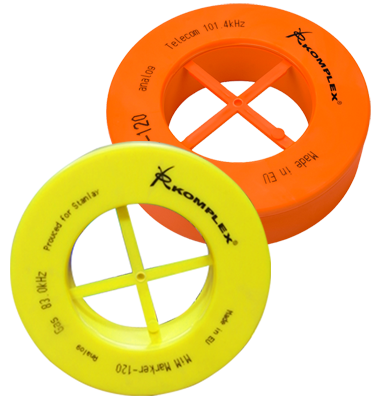

1. MiM 120 passive electronic pipe and cable marker for permanent marking and tracing of your underground facilities come in different color and these different color markers used for different industry/applications with different operating frequency detail below:



Electronic Marker Color

Type of Device

Operating Frequency

Orange

Telephone Cables

101.4 kHz

Blue

Water Pipelines

145.7 kHz

Green

Sewer Pipelines

121.6 kHz

Green Yellow

Gas Pipelines

83.0 kHz

Red

Red

134.0 kHz, 169.8 kHz

For more information and technical specification about MiM 120 electronic marker…Read More

2. Smart RFID Electronic Cable Marker & Marker Locator for smart system for permanent marking and tracing of your underground pipe & cable facilities.
This complete system consists of:
a. Smart RFID Marker SM1500


Types of operating frequency SML1500:

Operating Frequency

Type of Device

Color of marker

Type of marker locator

83,0 kHz

Gas pipelines

Yellow

SML G

101,4 kHz

Optical cables

Orange

SML T

121,6 kHz

Sewage pipelines

Green

SML S

145,7 kHz

Water pipelines

Blue

SML W

134,0 kHz, 169,8 kHz

Energetics cables

Red

SML E


b. Smart Marker locator SML (with Built in GPS)
c. Marker Database Software.

d. Smart Phone App

For more information and technical specification about Smart RFID Electronic marker…Read More

3. Marker 2500 are analog markers for permanent marking of buried utility services such are electrical cables, telecommunication cables, optical cables, water pipelines, gas pipelines, sewage pipelines, with depth detection range of 1.8m

For more information and technical specification about 2500 Electronic marker…Read More

4. Omni Marker electronically marks buried facilities. Unique design produces a uniform, spherical RF field in every direction; Easily located up to 5 ft away.

Types of operating frequency Omni Marker:

Application

Color

Frequency

Power

Red

169.8 KHz

Water

Blue

145.7 KHz

Sanitary

Green

121.6 KHz

Telephone

Orange

101.4 KHz

Gas

Yellow

83.0 KHz

Cable TV

Orange/Black

77.0 KHz

Non-Potable Water

Purple

66.35 KHz

For more information and technical specification about Omni Electronic marker…Read More

5. Marker-Mate Locator is designed to locate buried electronic markers, including the patented Tempo Omni Marker, and Uni Marker. In fact, Marker-Mate sets an industry standard with the capability of detecting seven electronic marker types simultaneously (power, water, sanitary, telephone, gas, cable, TV, non-potable water).

For more information and technical specification about Electronic marker locator…Read More

6. 8890 Marker Locator six frequency passive electronic utility marker locator to locate the all the six major utilities— power, water, sewer, gas, telco, and CATV — with one easy to operate unit.

For more information and technical specification about 8890 Electronic marker locator…Read More
