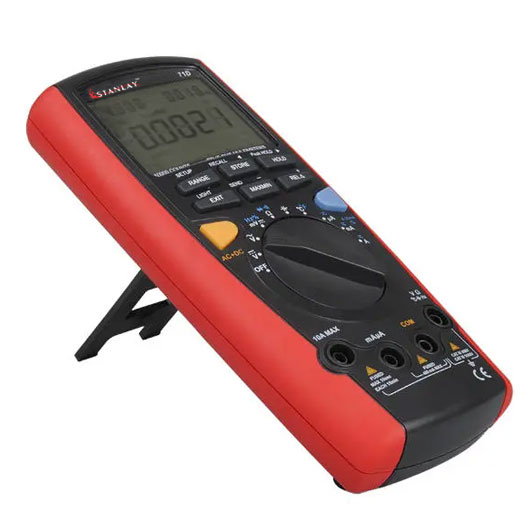

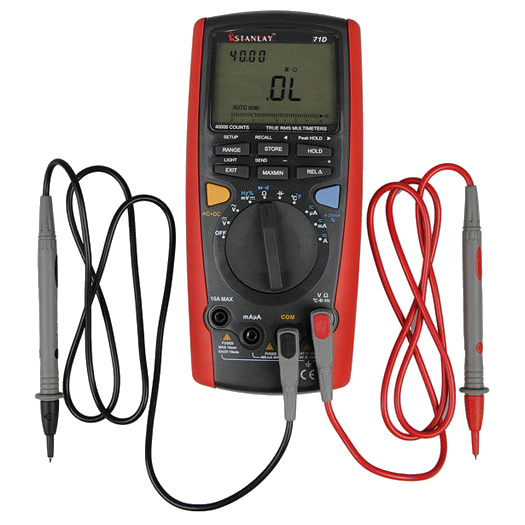

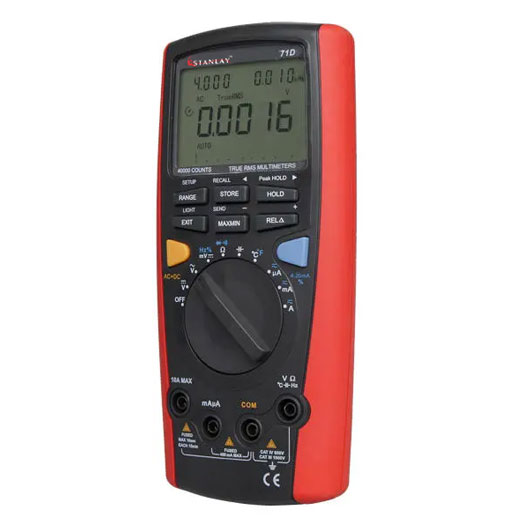

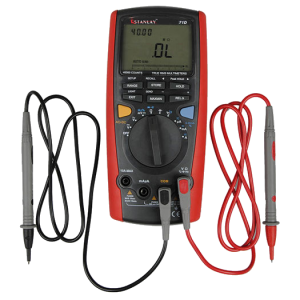

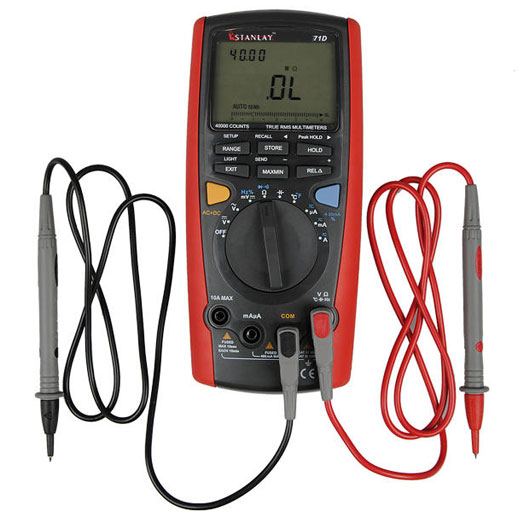

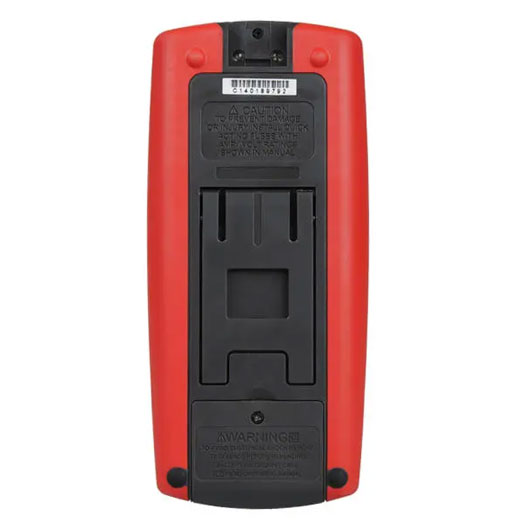

71D True RMS Intelligent Digital Multimeter

71D Digital CAT IV safety rated Multimeter is 40000 counts auto ranging multimeter instrument. 71D can quickly solve complex problems on electronics, factory automation, distribution process control, signaling/telecom and electronic engineering equipment. 71D multimeter provides datalogging & USB transfer as standard, Bluetooth as optional.

An important feature of the 71D multimeter is simultaneous AC + DC measurement, which is especially important if the signal has both AC & DC components.

Specifications
Product Specification

Auto/ Manual Range

√

True RMS

√

Display Count

40000

Bandwidth

100 kHz

Measurements

DC Voltage

400mV/4V/40V/400V/1000V

± (0.025%+5)

AC Voltage

4V/40V/400V/1000V

± (0.4%+30)

DC Current

400μA/4000μA/40mA/400mA/10A

± (0.1%+15)

AC Current

400μA/4000μA/40mA/400mA/10A

± (0.7%+15)

Resistance

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

± (0.3%+8)

Capacitance

40nF/400nF/4μF/40μF/400μF/4mF/40mF

± (1%+20)

Frequency

40Hz-400MHz

± (0.01%+8)

Duty Cycle

10% ~ 90% ± (1%+30)

± (1%+30)

Temperature 0C

-40 °C ~ 1000°C

± (1%+30)

Diode Test

√

Continuity Buzzer

√

4-20mA loop Current %

0~100% ± (1%+50)

Data/Transmission

Data Logging

9999 readings

USB Data Transfer

√

Bluetooth®

√

Display

MAX/MIN

√

Relative Mode

AC + DC (Simultaneous)

√

Analog Bar

40 segments

Data Hold

√

Auto Power off

Settable (10/20/30 mins or off)

LCD Backlight

√

Other Features

Input Alarm

√

Input Impedance for DGV



DC 400mV: around 2.5GΩ; Other Ranges: 10MΩ



Category Safety Ratings

CAT III 1000V, CAT IV 600V

General Characteristics

Size (WHD)

200mm X 93mm X 40mm

Weight

384g

Power

9V battery (6F22)

Display

73mm x 50mm

Standard Accessories

Battery, Test Lead, Alligator Clip, Test Clip, USB Interface Cable, PC Software CD, Carrying Bag, Point Contact Temperature Probe



Features
Features
  • 40000 display count, 0.025% accuracy
  • Can set the interval for auto data
  • recording
  • MAX/MIN/REL modes; peak hold; analog
  • bar graph
  • Measure AC and DC at the same time
  • (dual display)
  • 4-20mA loop test
  • 45Hz~100kHz frequency response
  • Auto and manual ranges selectable
  • USB interface; Bluetooth connection with
  • a cellphone for data monitoring
  • Auto power off, low battery indication.
  • CAT III 1000V, CAT IV 600V

 Optional: Bluetooth Adapter
