Fusion Splicer Lemon 3

Fusion Splicing Machine

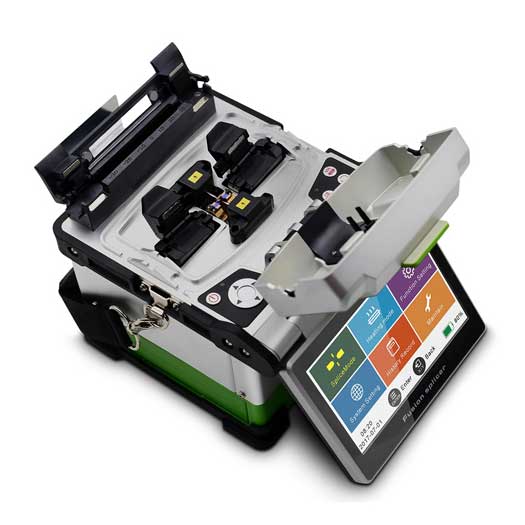

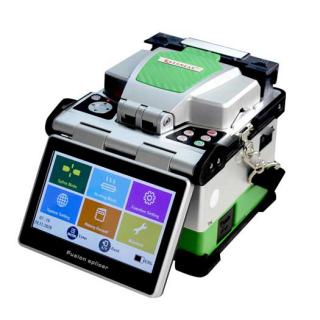

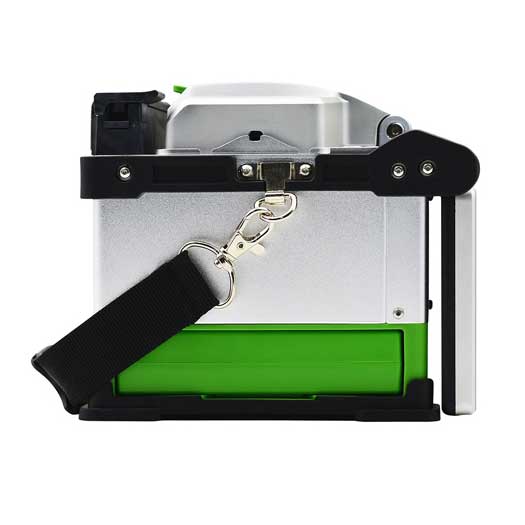

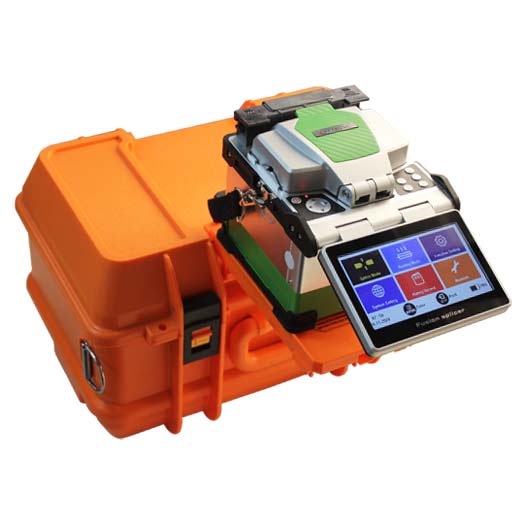

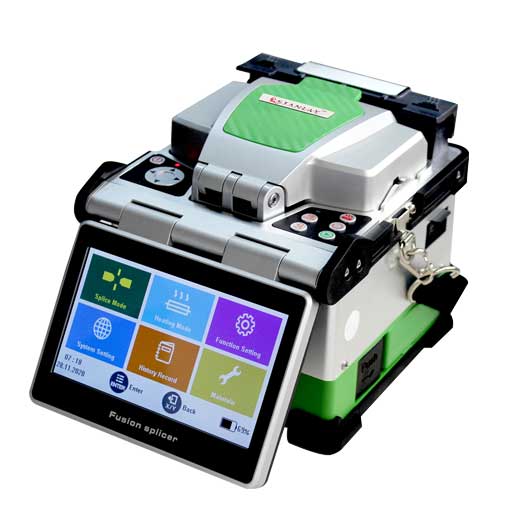

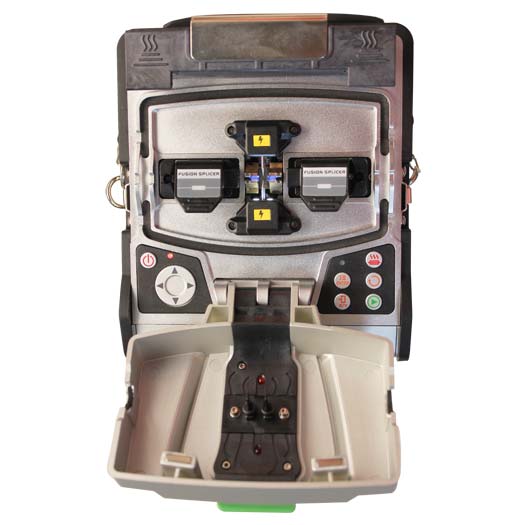

Fusion Splicer Lemon 3 is a rugged splicing machine with an auto heater and integrated cooling tray. Fusion Splicer lemon 3 provides a smart GUI interface, LCD display and X and Y views for efficient splicing.

With a 8s single mode fiber splicing, the Lemon 3 optical fiber splicer is an ideal instrument for those who want the best instrument for their fiber maintenance.

Ideal for use in Industrial plants, Campus networks, Telecom and Railway network project and maintenance

Product Specification

Applicable Fibers


Fiber Aligning Method

Core alignment

Average Splicing Loss

0.02dB (SM),0.01dB (MM),0.04dB (NZDS),0.04dB (EDF)

Splicing Mode

Auto, Manual & Half Auto

Splicing Setting

100 groups

Splicing Time

Typical 8s with standard SM fiber

Heating Time


Electrode Life

Typical 2500 Splices

Tension Test

2.0N (Standard)



Fiber Viewing Magnification

X/Y:180 times, X or Y:360times

Data Storage

10000 groups

Data Connectivity

USB 2.0

Protection sleeve length

40mm and 60mm


5” color LCD display Touchscreen

Power Supply

Li-ion battery or AC/DC input:13.5V

Battery Capacity

Typical 200 cycles (splicing and heating) per battery charge

Operating Temperature/

Relative Humidity

-10°C to ~+ 50°C / 0~95% RH

Size (mm)

164 x 141 x 138

Weight (kg)


  • 5-inch color LCD display
  • Typical 8s splicing with single mode fiber
  • Auto heater
  • Integrated cooling tray

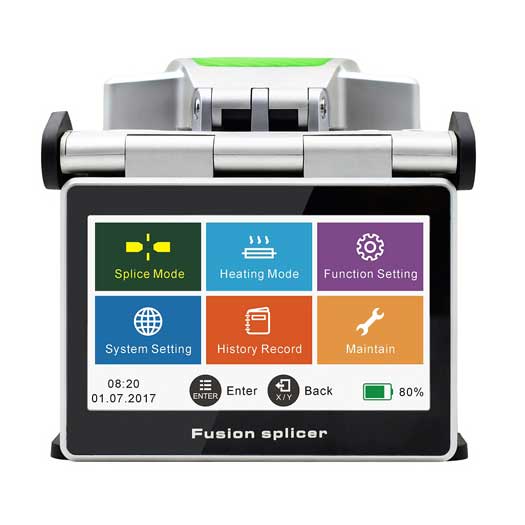

  • Graphical buttons and Smart GUI interface
  • Dual Axis Observation: Simultaneous X and Y views with 180 times magnification, X or view with 360 times magnification
