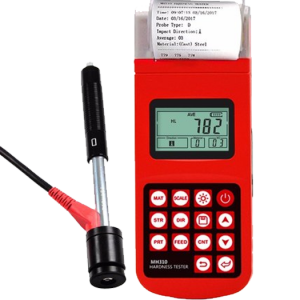

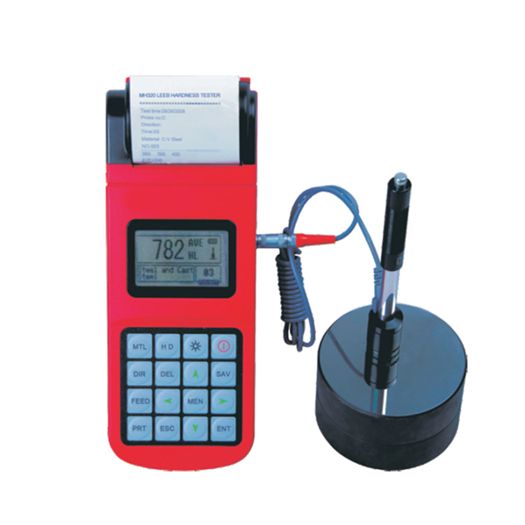

ST310 Hardness Tester

  • Product Description
  • Specifications
  • Features

Portable Leeb Hardness Tester for measuring hardness of all metallic materials, failure analysis, testing die, bearings, heavy work pieces etc.

Measuring Range HLD (170-960) ST310 Portable Hardness Tester
Measuring direction 3600
Hardness Scal HL, HB, HRB, HRC, HRA, HV, HS
Display 128x64 digital matrix LCD with backlight
Memory 100 group (32 every group)
Printing Paper Width is (57.5+/-0.5)mm, diameter is 30mm
Battery Pack 6V NI-MH Rechargeable
Battery Charger 9V/500mA
Continuous working perio 100 hours (with backlight off)
Communication Interfac USB 1.1
Size 212 x 80 x 32mm
Item Code ST-310
Select material under test from menu.
Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HRA, HV, HB, HS, HL and three types of strength values immediately.
Test at any angle, even upside down.
Seven impact devices are available for special application. Automatically identify the type of impact devices.
Large capacity memory can store 100 groups (Relative to average times 32~1) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.
Battery information shows charge status & remaining battery capacity during use.
Auto off function.
Built in printer.
 Product Info Downloads
