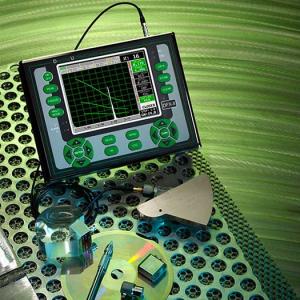

| General |
Connections |
Flaw Detector Features |
|
Size: 8.5W x 6.5H x 2.5D in (216 x 165 x 70mm).
Weight: 4.5 lbs (2.04 kgs), with batteries.
Case: Extruded aluminum body with nickel plated aluminum end caps (gasket sealed).
Display: Blanview sunlight readable QVGA TFT color display (320 x 240 pixels). Viewable area 4.54 x 3.40
in (115.2 x 86.4 mm), or 5.7 in (144.78 mm) diagonal. 16 color pallete, multiple color options and variable brightness.
Screen Refresh Rate: 60Hz.
Display Views: Flaw Detector: Full wave, +/- Rectified, or RF. Thickness Gauge: Digits, +/- Rectified, RF, or
B-Scan.
Timing: Precision TCXO timing with single shot 100 MHz 8 bit ultra low power digitizer.
Measurement Gates: Two independent gates (Flaw), and three gates (thickness). Start & width adjustable over full range. Amplitude 5-95%, 1% steps. Positive or negative triggering for each gate with audible and visual alarms.
Operating Temperature: 14 to 140F (-10C to 60C).
Environmental: Meets IP65 requirements.
|
USB: Direct USB 1.1 PC connectivity.
Power Connector: 12v @ 2amps, adapter 100-240 VAC,
.7 Amps, 50-60 Hz.
5 Pin Lemo (includes):
RS232Output: RS232 PC serial interface. DFX-8+ For use with B-Scan encoders (crawlers).
Alarm Outputs: Two independent alarm outputs trig- gered by the gates.
Analog Out: DFX-8+ Proportional outputs (amplitude or distance), 0-10 volts.
Transducer Connectors: Two LEMO 00 connectors.
|
TRIG: Trigonometric display of beam path, depth, surface distance, and curved surface correction. Used with angle beam transducers.
DAC: Up to 8 points may be entered and used to digi- tally draw a DAC curve. Reference -2, -6, -10, (-6/-12), (-6/-14), (-2/-6/-10) dB. Amplitude displayed in %DAC, dB, or %FSH.
AWS: Automatic defect sizing in accordance with AWS D1.1 structural welding code.
AVG/DGS: Automatic defect sizing using probe data. Stores up to 64 custom setups.
TCG: Time corrected gain. 50 dB dynamic range, 20 dB per microsecond, up to 8 points for curve definition.
Measurement Mode: Pulse-Echo (P-E) measures from
0.025 in to 100 ft. (0.63mm to 3048 cm).
Auto-Cal: Provides automatic calibration with two reference points.
Detection Modes: Zero Crossing, Flank and Peak.
Display Freeze: Holds current waveform on screen.
Peak Memory: Captures peak signal amplitude.
Auto Interface Gate - DFX-8+ Automatic adjustment of interface gate for immersion testing (water path).
|
|
Pulser
|
Calibration |
Thickness Gauge Features |
Pulser Type: DFX-8 Two adjustable square wave puls- ers. DFX-8+ Two tone burst pulsers.
P.R.F.: 8 to 2000Hz in selectable steps (8, 16, 32, 66, 125,
250, 333, 1000, 2000 Hz).
Pulser Voltage: DFX-8 100 - 200 volt peak amplitude, rise/fall time < 10ns into 50ohm. DFX-8+ 100 - 400v.
Pulse Width: 40 to 400 ns. Selectable step options 40, 80 & 400 ns (labeled spike, thin & wide). |
Automatic Calibration: Longitudinal (straight), or Shear (angle).
Probe Types: Single Contact, Dual, Delay, and Angle.
Units: English (in), Metric (mm), or Time (µs).
Velocity: 0.0100 to .6300 in/µs (256–16,000 m/s).
Test Range: 0 to 0.076in (1.93mm) minimum, to 1200in (30,480mm) maximum at steel velocity. Continuously variable.
Zero Offset (Probe Zero): 0–999.999 µs.
Material Velocity Table: Contains longitudinal and shear velocities for a variety of material types. |
Measurement Modes (Dual Element):
Pulse-Echo Mode (P-E) - (Pit & Flaw Detection) mea- sures from 0.025 in to 100 ft. (0.63mm to 3048 cm).
Pulse-Echo Coating Mode (PECT) - (Material, Coat- ing, Pit & Flaw Detection): Material: 0.025 in to 100 ft. (0.63mm to 3048 cm). Coating: 0.001 to 0.100 inches
(0.01 to 2.54 millimeters).
Pulse-Echo Temp Comp Mode (PETP) - (Pit & Flaw Detection) Auto temperature compensation -measures from 0.025 in to 100 ft. (0.63 mm to 3048 cm).
Echo-Echo Mode (E-E) - (Thru Paint & Coatings) mea- sures from 0.050 to 4.0 inches (1.27 to 102 millimeters). Will vary based on coating.
Echo-Echo Verify (E-EV) - (Thru Paint & Coatings) mea- sures from 0.050 to 1.0 inches (1.27 to 25.4 millimeters). Will vary based on coating.
Coating Only Mode (CT) - (Coating Thickness) Mea- sures from 0.0005 to 0.100 inches (0.0127 to 2.54 mil- limeters). Range will vary +/- depending on the coating.
One and two point calibration option for material & coating, or selection of basic material types.
Auto probe zero, recognition and temperature com- pensation.
High speed scan up to 50 readings per second. Audible alarm with hi/lo limits.
Built-in differential mode for QC inspections. 64 custom setup configurations. |
| Receivers |
Memory |
Gain: 0 to 110dB with 0.2dB resolution. Manual and AGC control.
Damping: 50, 75, 100, 300, 600, & 1500 ohms.
Frequency Bands: DFX-8 & DFX-8+ Broadband 1.8 - 19 MHz (-3dB). Four narrow bands at 1MHz, 2MHz, 5MHz, 10MHz. DFX-8+ Additional narrow bands at .5MHz, 15MHz.
Horizontal Linearity: +/- 0.4% FSW. Vertical Linearity: +/- 1% FSH. Amplifier Linearity: +/- 1 dB.
Amplitude Measurement: 0 to 100% FSH, with 1% resolution.
Delay: 0 - 999in (25,375mm) at steel velocity. |
Log Formats: Grid (Alpha Numeric), or Sequential (Auto Identifier).
Capacity: 4 Gb internal & up to 64 Gb External SD slot.
Screen Capture: bitmap graphic capture for quick documentation.
Custom Setups: 64 user configurations. |
| Power Source |
Video |
Transducers |
Lithium Ion Pack: 10.8v, 2 amp hrs, typical operation 18hrs.
Battery Backup: Emergency battery backup. Six 1.5V alkaline, 1.2V AA Nicad cells, 1.2V AA NI-MH, or other other equivalent power source. Battery life (continuous use): Alkaline (12 hrs), Nicad (5hrs), and NI-MH (12hrs), with default settings. |
Remote Commander: Java PC software allows remote display and control for training/presentation purposes, and custom system integration. |
Delay line: High Frequency single element delay line style for precision testing of thin materials.
Pencil: High Frequency single element delay line style for testing of materials in tight access areas and difficult geometries.
Contact: Single element contact style for general pur- pose longitudinal & Shear wave flaw detection.
Dual: Pitch/Catch dual element style for longitudinal & Shear wave corrosion inspections.. |
| Certification |
Warranty |
Thickness Gauge: Factory calibration traceable to NIST & MIL-STD-45662A.
Flaw Detector: EN12668-1 compliant. |
2 year limited |
