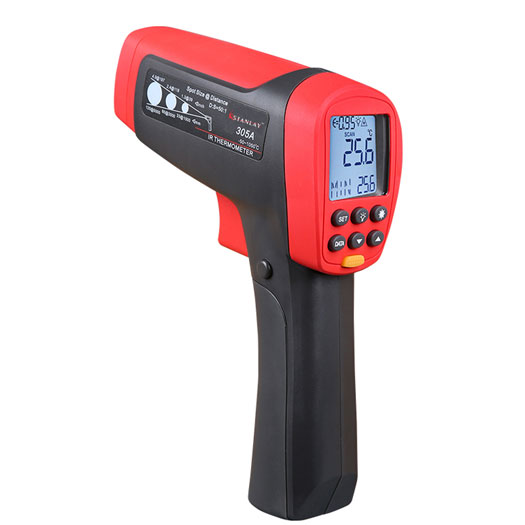

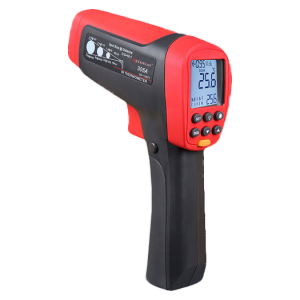

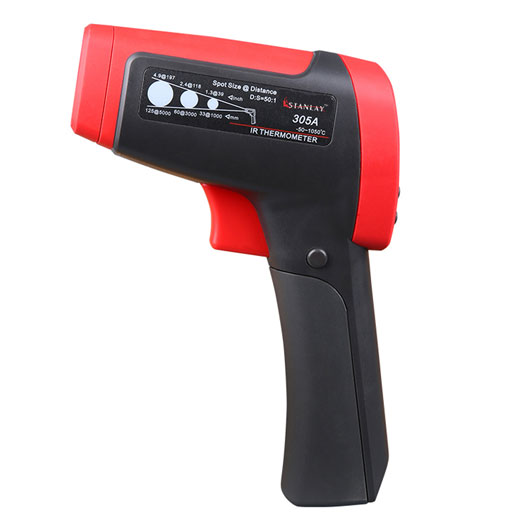

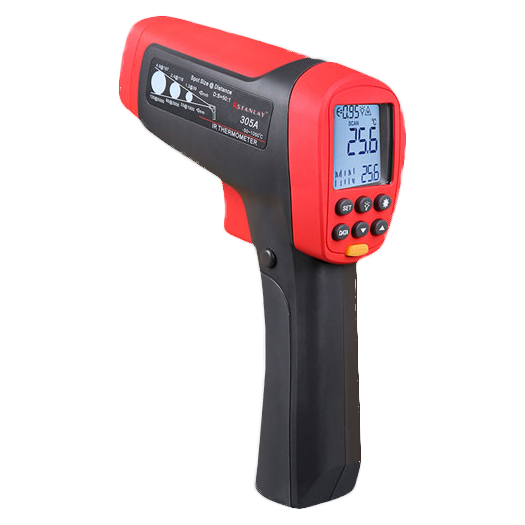

305A/C Digital Infrared Thermometer

305 series infrared thermometers can measure temperature by laser or contact with k-type temperature probe. 305 has a 50:1 D:S ratio, it can measure temperature points of interest from a longer distance with high accuracy along with features such as 99 sets of data storage and USB data transmission. 305A/C is an ideal tool for industrial quality inspection such as high temperature measurement in furnaces

Specifications
Product Specification

Model Selection

305A

305C

Temperature range

-50~1050°C

Accuracy

±1.8% or ±1.8°C

D:S ratio

50:1

Response time

≤250ms

Emissivity

0.1~1 Adjustable

Spectral response

8-14μm

Laser type

Class2

Laser Power

<1mW

Laser wavelength

630~670nm

Backlight Display

33mm x 38mm

Display Type

LCD

Features

Temperature Data Hold

√

Max/Min/Diff/Avg

√

High/Low LED & Audio Alarm

√

Data Storage

99 data sets

USB Interface

√

Scheduled measurement

-

Tripod mounting hole

√

General Characteristics

Power

USB or 9V battery (6F22) or power adaptor

Product weight

320g

Product Size

183mm x 147mm x 57mm
Features
Features
  • 50:1 D:S ratio
  • Adjustable emissivity 0.1~1.0
  • ±1.8 0C temperature measurement accuracy
  • User defined visual and audio alarm
  • LCD display
  • MAX/MIN/AVG/DIFF/Hold modes
  • Temperature recording up to 99 groups
  • Date/time display


Product Info Downloads
Product Info Downloads

Product Information files contain the essential technical detail you need to make informed decisions on any particular product. Simply click on a title to download a PDF copy of that file. If you wish a hard copy of a brochure, technical advice on any product or a demonstration then please contact us. We're always happy to help!

Title
File Type
File Size
Last Uploaded
Product Datasheet
application/pdf
481.61 KB
August 13 2019 10:52:19
