CTRAK Traceable Duct Rodder

  • Product Description
  • Specifications
  • Features
  • Video

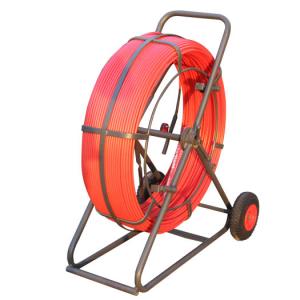

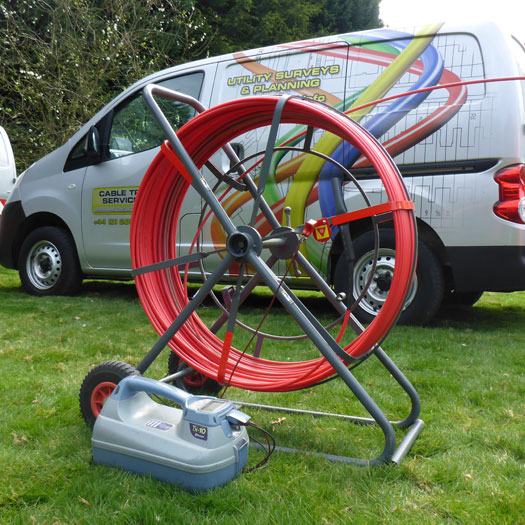

CTRAK Pipetraker Traceable Maxi Duct Rodder is an ideal accessory for utilisation with pipe & cable locators, to EXTEND the capability of the locating equipments to identify location & route of buried non metallic ducts or telecom pipes.

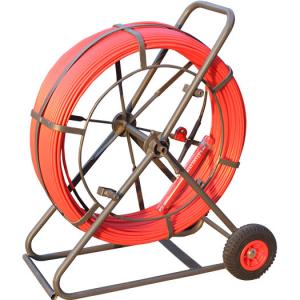

The PipeTraker Traceable Maxi Duct rodder is based on a sturdy composite fiberglass rod of 9mm dia with a built in 1mm copper wire that is rigid yet flexible enough to guide into non metallic HDPE ducts, plastic pipes and metal pipes upto lengths of 300 meters / 1000 feet.

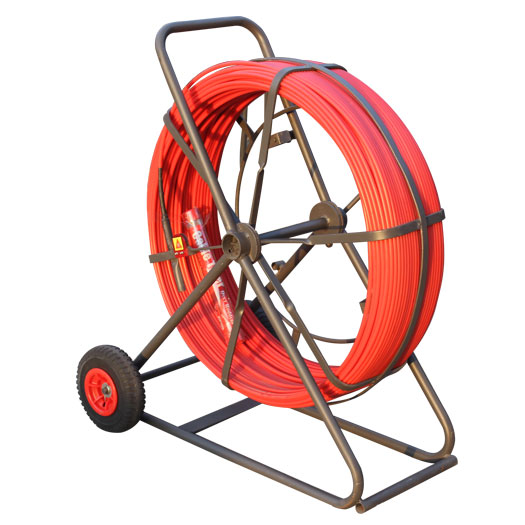

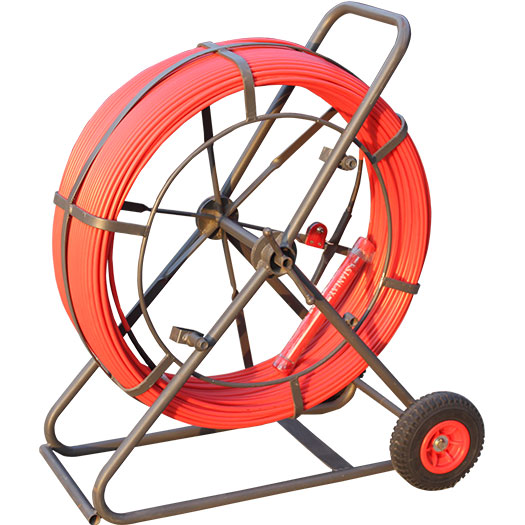

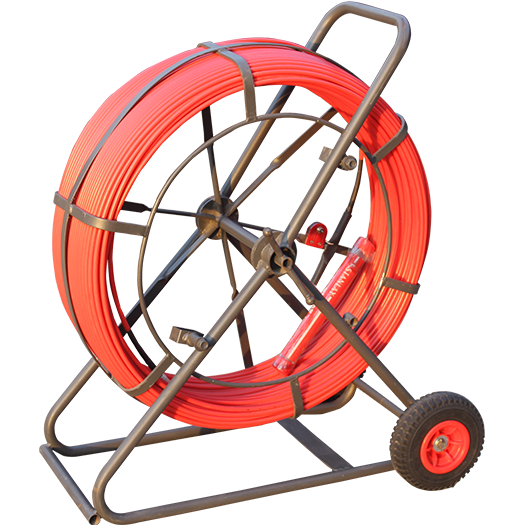

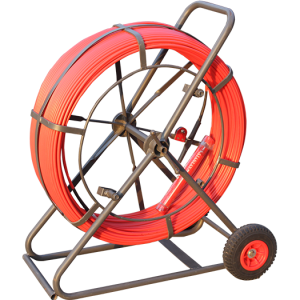

The CTRAK traceable duct rodder is provided in a galvanized metal tube frame with an integral brake and wheels. The base of the traceable rod contains a terminal that provides a connection to the inbuilt copper tracer wire of the duct rodder. The traceable rodder when energized with a frequency excites the full length of the rodder to enable trace the buried pipe.



Use any Digital Pipe & cable locating receiver to trace the route of the Pipe. Available in two length options : 200m/650feet and 300m/1000feet.



See the CTRAK Product video for an animated description of how to use the CTRAK traceable rodder to trace non metallic pipes.

Length Options 150m, 200m, or 300m
Dimension 33"x20"x37" Maxi Frame "B" Type for 120~200m
  43"x20"x44" Super Maxi Frame "A" Type for 300 m frame
Rod Dia 9.0mm (Nominal)
Size of Copper Wire 1mm Dia.
Item Code ST-CTRAK 150 for 150m, ST-CTRAK 200 for 200m &
  ST-CTRAK 300 for 300m.

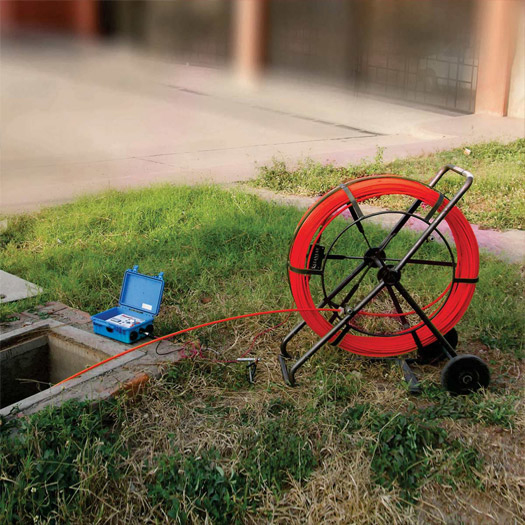

STEP 1 : Insert rod into manhole and push into metallic or non metallic pipe /duct which is to be route traced. Ctrack Illustration 1

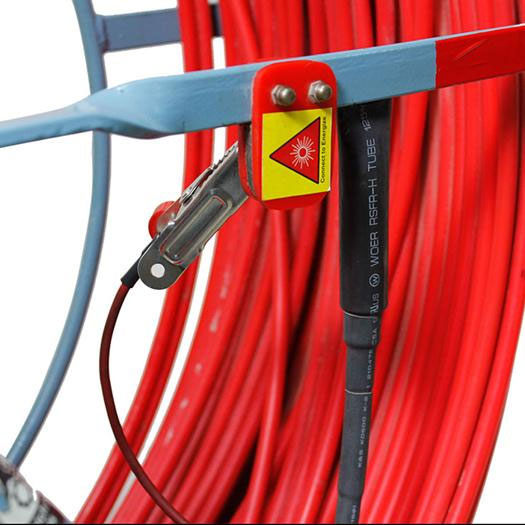

STEP 2 : The terminal box of the PipeTraker provides the connection to the inbuilt copper trace wire of the duct rodder. Ctrack Illustration 2
STEP 3 : Energise the traceable duct rodder with any frequency such as 8/ 16/33/64 /80 KHz etc using any signal excitor/ transmitter. Ctrack Illustration 3
STEP 4 : Trace route, depth or blockage points of underground conduit with precision using any digital or analog receiver. Ctrack Illustration 4
 Product Info Downloads
 Product Video & Training
 Related Article
Stop Before You Dig
The civic layout of India based on the growing need for housing and roads has changed beyond recognition. As a result As-built maps of underground utility assets, if existing , have been rendered redundant and cannot ...
