Proceq PL250

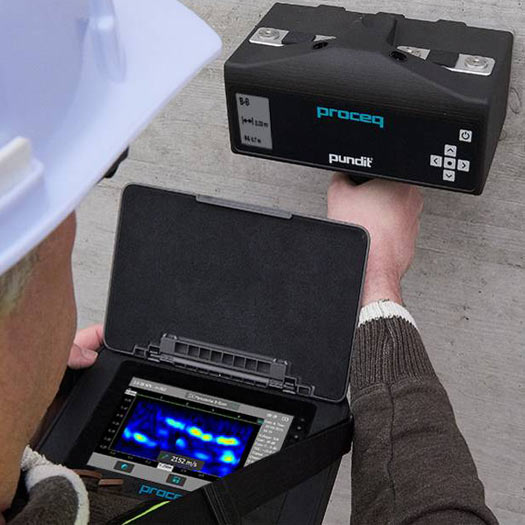

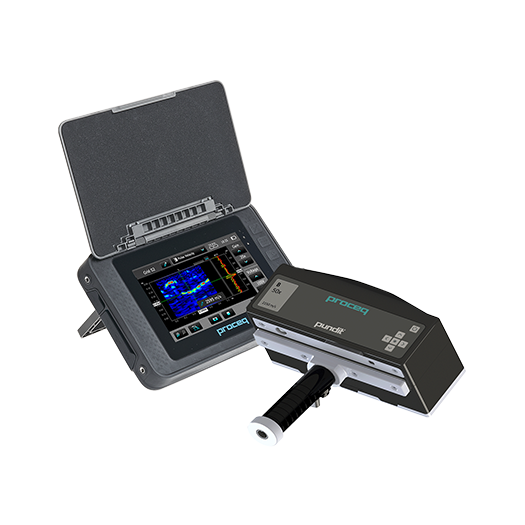

Proceq PL250 array is an ultrasonic imaging scanner utilized for location of pipes and tendon ducts beyond the rebar layer measuring thickness of concrete elements & tunnel linings. Based on Phased array ultrasonic pulse echo technology, the instrument offers ultrasonic tomography for conducting real time B scans and panorama scan capability for determining location of voids, honeycombing, delamination etc. Proceq PL250 array is supplied with shear wave horizontal polarized 8 channel transducer upgradable to 16 channels.

Applications

Quality assessment

Thickness measurement from a single side

Location of delamination’s, voids and honeycombing

Location of hollow pipes

Location of pipes and tendon ducts beyond the rebar layer

Assessment of fiber-reinforced concrete

Additional Applications:

Ultrasonic concrete thickness measurement

Honeycomb detection

Features

Instrument Firmware:

Raw data export
Settings directly accessible on measuring screen

PC Software: PL-Link for analysis and export of data to third party applications

Display: 7” color rugged touchscreen unit (800 x 480 pixels) with dual core processor

Memory: Internal 8 GB flash memory

Connections: USB host / device and Ethernet

Measurement Modes:

Real time B-Scan
Panorama B-Scan

Measuring Range: Ca. 1m depending on concrete quality

Transducers: Dry-contact Pundit Array transducer with auxiliary LCD display and control buttons on handles

Specification

Description	Requirement
Functions of Equipment	Designed to be used on-site in harsh environments
	High resolution screen for allowing best possible analysis of the measured waveforms.
	8 GB Flash memory.
	Dual core processor for supporting diverse communication and peripheral interfaces
	Consist of 8 channel array type antennas upgradeable up to 24 Nos of transducers.
	low frequency transverse (shear), wave transducers, Wave Type, Dry point type (no couplant required)
	Able to perform the thickness measurement in thick concrete elements and bridges.
	Capable for Determination of Voids, honeycombing and depth and extent of delamination’s
	Real-time B-scan visualization
	Panorama mode for extended scans over several meters
	Zoom and scroll function for precise A-Scan inspection
	Settings directly accessible on measuring screen of the equipment
	Dual cursor for manual A-Scan evaluation

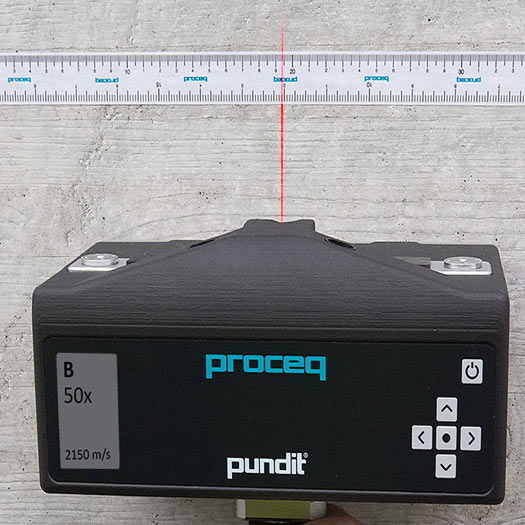

	Transducer array has Display for status information and immediate feedback
	Transducer array contains Buttons to control main scanning functions

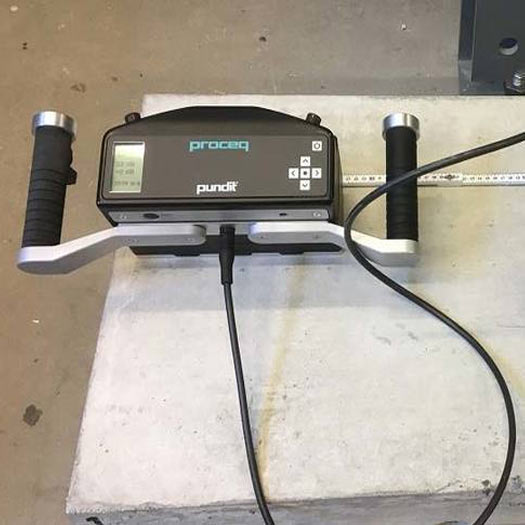

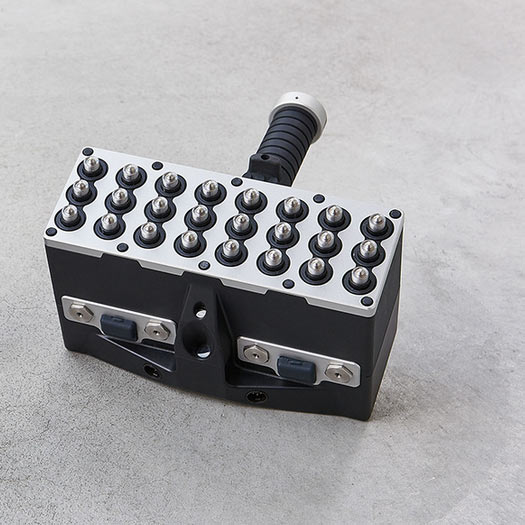

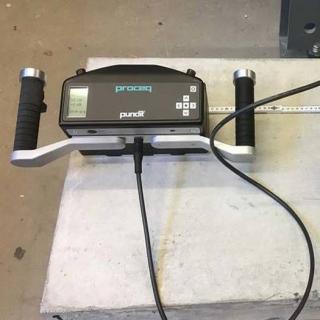

Specification of Array Transducer
Gain	0 to 80 dB
Analog Bandwidth	15 to 100 kHz
Nominal Transducer Frequency	50kHz shear wave
Measuring Range	Ca. 1m depending upon the concrete quality
Range Resolution	0 to 1000 µs/1µs
Pulse Shape	Square wave
Pulse Delay	8 to 200ms
Number of Channels	8 (with upgrade option to 16)
Battery Lifetime	>7 hours
Dimensions	240 x 273 x 153mm
Weight	~3KG

Specification of Control Unit
Display	Touchscreen Display 7” color 800 x 480 pixels
Memory	Internal 8 GB flash memory
Language	Regional setting Metric and imperial units and Multilanguage and time zone supported
Power	Input 12V +/-25 % 1.5A
Battery	3.6V, 14Ah
Battery Lifetime	>8 h (in standard operating mode)
Humidity	<95% RH, non -condensing
Operating Temperature	-10 to + 50 ⁰C
IP Rating	IP54
Dimension	250 x 162 x 62mm
Weight	~1.65 Kg (including Battery)
