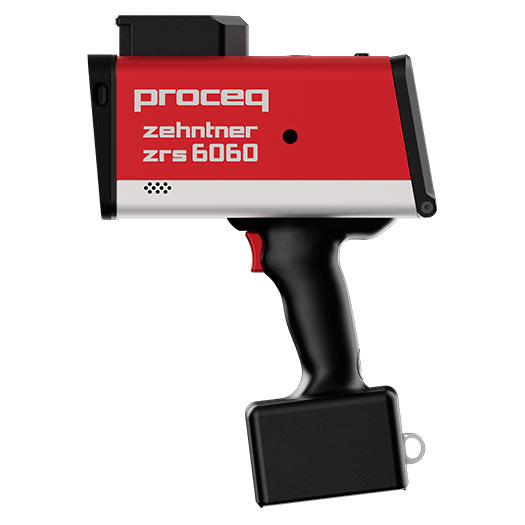

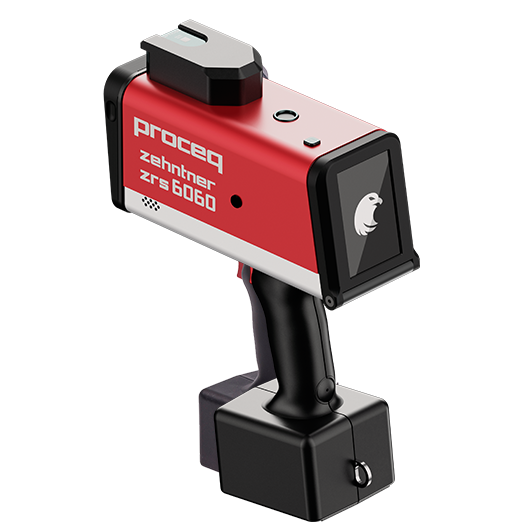

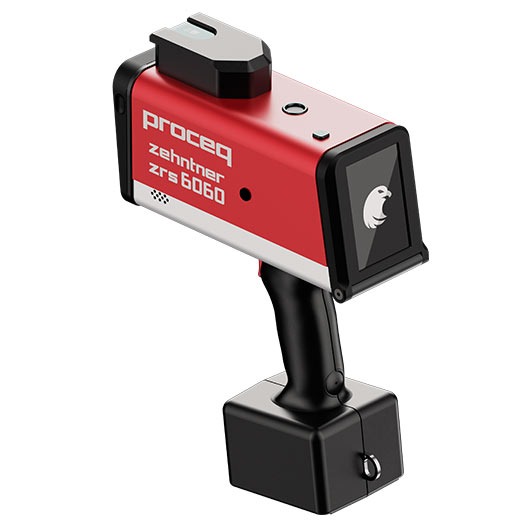

Zehntner ZRS6060 is the new generation of ergonomic Road Sign Retroreflectometer for determination of night visibility (coefficient of retroreflection RA and R') of traffic signs, safety garments and other reflective materials with measurement of three different observation angles at the same time.
The use of road sign retroreflectomers is necessary for ensuring road safety.

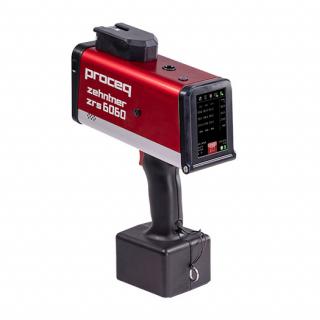

The ZRS6060 is the very first portable road sign retroreflectometer with LED illumination system and with a 3.5” high-resolution color touchscreen with adjustable display inclination for excellent visibility under all light conditions also in bright sunlight.
Comes with Internal flash memory of 1 GB, the handheld retroreflectometer allows storage of 1‘000‘000 measurements without pictures.
ZRS6060 Traffic sign retroreflectometer also provides various Innovative options to customize the reflectometer to personal requirements: integrated 5-megapixel camera, WAAS GPS-unit, holster and handles and many more.
The portable retroreflectometer , if configured with the options offers measurements with precise geolocation and high-resolution images. The user-friendly software makes comprehensive reports quickly and with ease.
Optional handles include a 1.6 to 3 meter extendable handle including fork And an option for a longer 2.2meter to 4.0 meter extendable handle including fork, to allow use the retro reflectometer where road signs are not accessible.
|
Measuring Sensor Adaption |
V(λ) |
|
Measuring Area |
Ø 25 mm (0.98“) |
|
Measuring Range |
0 - 2‘000 cd•lx-¹•m-² |
|
Measuring Time |
≈ 3 s |
|
Display |
3.5“ colour TFT (LCD), LED backlight, HVGA resolution |
|
Memory |
Internal flash memory of 1 GB ≈ 1‘000‘000 measurements without pictures |
|
Interface |
Host USB (type A / Typ A), Client Mini USB (type B / Typ B) |
|
Battery |
Li-Ion 14.4 V / 6.5 Ah |
|
Material Housing |
anodised aluminium / Aluminium, eloxiert |
|
Dimensions (LxWxH) |
220 mm x 85 mm x 290 mm |
|
Weight |
1.9 kg (4.19 lbs) net without options |
|
Operating Temperature |
-10 to +50°C , non condensing |
|
Reporting Software |
Includes mapping and data analysis software MappingTools |
|
Supply Includes |
Retroreflectometer, calibration standard / front plate , battery charger, mapping and data |
|
Technology Options |
LED illumination system 3.5” colour touchscreen with adjustable display inclination for |
|
Warranty |
2 years |
Yes, It has 1 GB internal built-in flash memory to store data.
1.9 kg net without options
The ZRS 6060 features a 3.5” colour TFT LCD display with LED backlight and HVGA resolution for clear visibility of measurement results.
It comes with 2 years warranty.
Retroreflection, also called night visibility, is a specific type of light reflection when the light rays goes on a surface and comes back to the source of light. This principle is a pillar in road safety. Indeed, the vehicles lamps during the night enable to see the road markings, road signs and conspicuity tapes. A retroreflectometer is used to measure the retroreflection performance of the surface. The retroreflection (often written “Râ€) is measured in mcd. m-2. lx-1.
0 - 2‘000 cd•lx-¹•m-²
The Zehntner ZRS 6060 is used for measuring the retroreflectivity and visibility performance of traffic signs and road safety signboards to ensure compliance with international standards.
The device measures the retroreflection coefficient (RA) of traffic signs and reflective materials used in road safety applications.
Proper retroreflection ensures road signs remain clearly visible to drivers at night when illuminated by vehicle headlights, improving road safety.
The ZRS 6060 provides high-precision retroreflection measurement suitable for low, medium, and high-intensity reflective traffic signs.
The device supports standard observation geometries compliant with international traffic sign retroreflection testing standards.
The system uses internationally standardized illumination geometry for accurate and repeatable retroreflection measurements.
The ZRS 6060 complies with international standards such as ASTM E1709, EN standards, and other global traffic sign testing specifications.
Yes, it is suitable for testing engineering-grade, high-intensity, and diamond-grade reflective materials used in traffic signs.
Yes, the device is designed for highly accurate and repeatable retroreflection measurements required for professional road safety inspections.
The ZRS 6060 features a high-resolution digital display for clear viewing of retroreflection measurement values and testing parameters.
Yes, the intuitive touchscreen interface enables fast and user-friendly field operation.
Yes, the device supports internal memory for storing measurement data, inspection records, and test results.
Yes, data can be exported through USB and digital communication interfaces for reporting and analysis.
Yes, integrated GPS functionality enables georeferenced measurement recording and location tracking of inspected road signs.
GPS tagging helps maintain accurate inspection records, simplifies maintenance planning, and improves roadway asset management.
Yes, it is widely used for highways, expressways, municipal roads, airport signage, and industrial traffic sign inspections.
Yes, the device is suitable for testing retroreflective performance of airport guidance signs and industrial safety signage.
Yes, the lightweight ergonomic handheld design makes it suitable for on-site inspections and long-duration field operations.
The device features a compact handheld structure, intuitive controls, ergonomic grip, and field-friendly operation design.
Yes, the system is optimized for single-operator inspection and measurement workflows.
Yes, it is extensively used for manufacturing quality control, field inspection, acceptance testing, and maintenance evaluation of traffic signs.
Key advantages include high-accuracy retroreflection measurement, touchscreen display, GPS integration, internal data storage, USB export, ergonomic portable design, and compliance with international traffic sign testing standards.
The device includes MappingTools software for mapping, reporting, and retroreflection data analysis.
