Fixed Thermal Imaging Camera Product Matrix
|
|
STAN ONE Part Nos
|

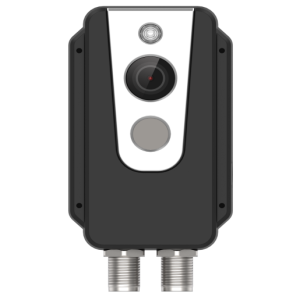

STP1
|
SIAT
|
SIFT
|

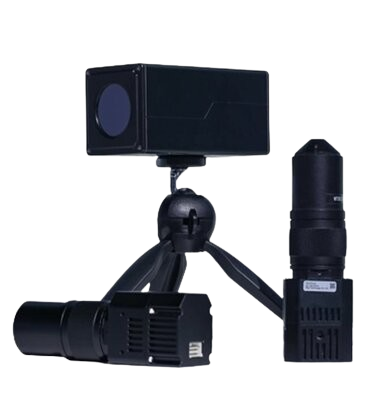

SIFTU
|
SECT1
|
|
Camera Type
|
Non focusing
|
Auto Focus
(electric focusing lens)
|
Fixed Focus lens
|
Fixed Focus lens
|
Bullet
|
|
Primary application
|
Electrical
|
Industrial
|
Industrial
|
Industrial
|
Security
|
|
Detector Type
|
VOx Uncooled infrared FPA detector
|
|
Detector Resolution
|
256*192
|
SIAT 30 : 384 X 288
SIAT 60 : 640 X 512
|
SIFT 30 : 384 X 288
SIFT 60 : 640 X 512
|
384*288
|
256*192
|
|
Thermal Sensitivity(NETD)
|
<40mk
|
<50mk (40mk optional)
|
<40mk
|
|
Frame Rate (In Hz)
|
30
|
25
|
SIFT30 : 50
SIFT60 : 25
|
50
|
30
|
|
FOV
|
56°*42°
|
Depending on LENS configured
|
|
Pixel
|
|
14um
|
12um
|
17um
|
12um
|
|
Focusing Mode
|
Free Focus
|
Auto Focus (electric focusing lens)
|
Fixed Focus lens
|
Fixed Focus lens
|
Fixed Focus lens
|
|
Temp. Range
|
‘-20℃ to 550℃
|
‘-20℃ to 550℃
|
‘-20℃ to 550℃
|
‘0℃ to 1500℃
|
‘-20℃ to 550℃
|
|
Accuracy
|
±2% or ±2℃
|
±2% or ±2℃
|
±2% or ±2℃
|
±2% or ±2℃
|
±2% or ±2℃
|
|
Color Palettes
|
18
|
20
|
|
Visible Camera (MegaPixel)
|
2MP
|
N/A
|
N/A
|
N/A
|
5MP
|
|
Visible Camera resolution
|
1080 (1024 X 768)
|
N/A
|
N/A
|
N/A
|
2560X1920
|
|
Image Modes
|
Thermal imaging, Dual spectrum fusion, DDE , Visible image
|
Thermal imaging，DDE
|
Thermal imaging,DDE
|
Thermal imaging，DDE
|
Thermal imaging, Visible image
|
|
Fixed point monitoring
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Line & Area Monitoring
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Others
|
N/A
|
Full screen max./min. temperature capture, Center point
|
Full screen max./min. temperature capture, Center point
|
Full screen max./min. temperature capture, Center point
|
Full screen max./min. temperature capture
|
|
Manual setting
|
N/A
|
Choose temperature widths
|
Perimeter intrusion , set line, polygon, circle
|
|
Perimeter intrusion
|
N/A
|
Yes
|
|
Images captured
|
Yes, Both Thermal & Visible
|
Thermal image
|
Thermal image
|
Thermal image
|
Yes, on alarm
|
|
Video captured
|
|
Yes
|
Yes
|
|
Video format
|
mp4
|
mp4, mov
|
mp4, mov
|
mp4, mov
|
mp4
|
|
Data transmission
|
Online, real time
|
|
Alarm Mode
|
I/O Alarms
|
|
Alarm output
|
I/O output, image/video storage, file sending (FTP), E-mail (SMTP), flashing light alarm
|
I/O output, log, save image, file sending (FTP), email (SMTP), notification
|
email +physical alarm output to light / hooter
|
|
Online viewing
|
web management interface via device hotspot http
|
web management interface
|
web management interface
|
web management interface
|
web management interface
|
|
Memory
|
Internal & External(NVR*)
|
External(NVR*)
|
|
Memory storage, if applicable
|
32GB
|
N/A
|
|
Connectivity Protocol
|
ONVIF, GB28181, Modbus, TCP
|
ONVIF, RTSP, Pelco
|
ONVIF, RTSP, Modbus TCP
|
ONVIF, RTSP, Modbus TCP
|
ONVIF, TCP
|
|
LAN Protocols
|
TCP, UDP, RTSP, HTTP, SMTP
|
TCP, UDP, ICMP, DHCP
|
TCP, UDP, RTSP, HTTP, SMTP
|
TCP, UDP, RTSP, HTTP, SMTP, DHCP, PPPOE
|
TCP, HTTP, RTSP, SMTP, DHCP
|
|
Network Output
|
|
RJ45 10M/100M/1000M adaptive
|
RJ45 10M/100M/1000M adaptive
|
RJ45 10M/100M/1000M adaptive
|
RJ45 10M/100M adaptive
|
|
Serial communication
|
N/A
|
RS-485(customized)
|
RS-485(control PT)
RS-232(network data)
|
RS-485(control PT)
RS-232(network data)
|
N/A
|
|
Protocol
|
1 X M12 8 Pin RJ45 GB Ethernet to Switch or PC, 1 x M12 12 pin contains 1 x DC, 1 x alarm input, 1 x alarm output
|
1 X M12 8 Pin RJ45 GB Ethernet to Switch or PC, 1 1x RS422, analogue video output, 1 x RS485(Optional)
|
1 x RJ45, 1 x DC, 1 x Alarm In, 1 x Alarm output, 1 x RS485, 1 x RS232
|
1 x RJ45, 1 x DC, 1 x Alarm In, 1 x Alarm output, 1 x RS485
|
1 x RJ45, 1 x DC, 1 x Alarm In, 1 x Alarm output, 1 x RS485
|
|
Operating Temperature range
|
is -20° to +60°C
|
-40° to +70°C
|
|
Ingress Protection
|
IP67
|
IP54
|
IP54
|
IP54 or customised
|
IP66
|
|
Housing Material
|
Front shell : Plastic
Rear shell : Aluminum
|
Aluminum
|
|
Power Supply
|
12~30V DC, <=2W
|
10-36VDC, <= 3 Watts
|
9-26VDC, <=3 Watts
|
DC12V±25% or POE
|
|
Fixing
|
Using adaptor bracket, with 4 x M2 Screws
|
Using adaptor bracket, with 6 x M2 Screws
|
with 2 x M2 Screws
|
with 4 x M2 Screws
|
With bracket
|
|
PC Software Support for Analysis
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Applications
|
Monitoring electrical cabinets
|
laser processing monitoring, warehousing safety, monitoring of factory assembly lines, Process control, Quality control, R&D
|
Metallurgy, Petroleum and petrochemical high temperature processing industries.
|
Security , Warehousing, Perimeter intrusion
|
| |
|
|
|
|
|
