What is NDT MyMo used for?
NDT MyMo is used for structural health monitoring (SHM) of bridges, buildings, slopes, and infrastructure by measuring vibrations and displacements without physical contact.
OTDR
Fiber Optic Splicing Machine
Optical Loss Test
Optical Power Meters
Optical Light Source
TDR Cable Fault Locator
Fiber Optic Visual Fault Locators
Network Analyzer
Lan Testers
Fiber Tools
Fiber Cleavers
Optical Fiber Identifier
Fiber Optical Attenuator
Tone & Probe Kit
Fiber Optical Talk Set
Rocoil Rail Current Transducer
Bit Error Rate Tester

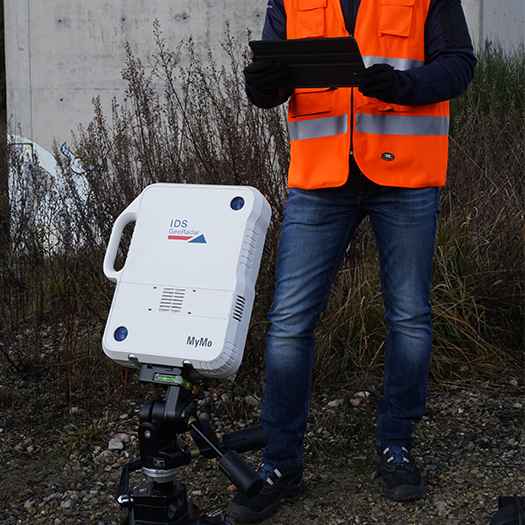

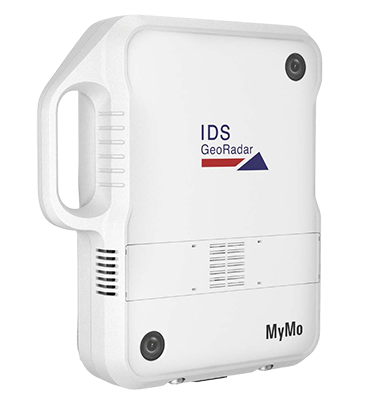

NDT MyMo by IDS GeoRadar is a cutting-edge, portable solution for fast, non-contact structural health monitoring (SHM) that combines interferometric radar and photogrammetry into a single compact device. It delivers real-time insights into structural vibrations and displacements with sub-millimetric accuracy, enabling engineers and infrastructure owners to assess more structures, more frequently and with greater confidence.

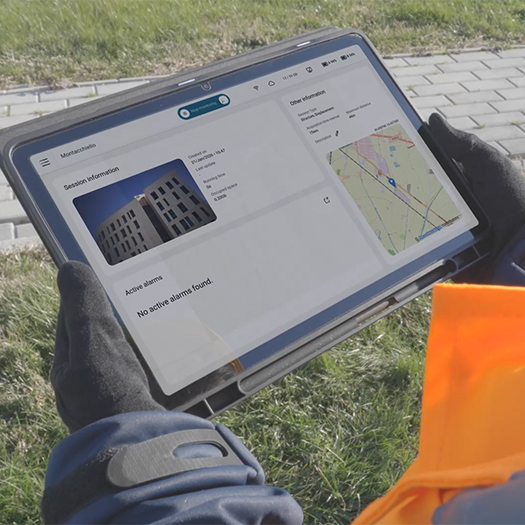

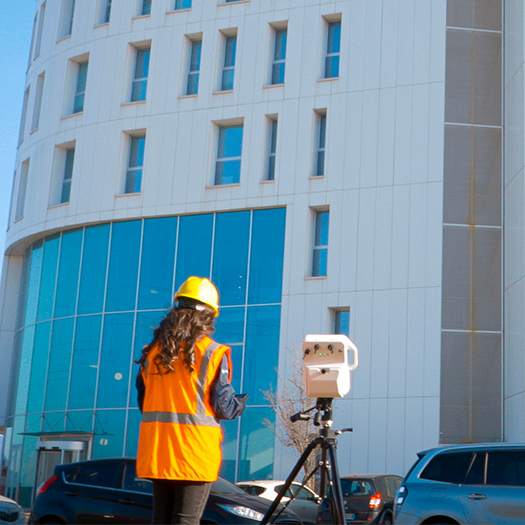

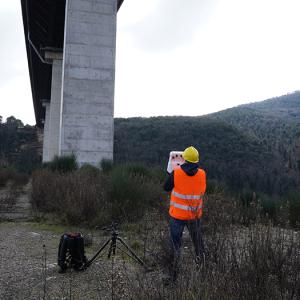

Designed as a grab-and-go system, MyMo can be deployed by a single operator within minutes, eliminating the need for complex installations, heavy equipment or direct access to structures. Its non-contact operation enhances safety while reducing time, cost, and manpower required for inspections. The system’s intuitive web-based interface collects, processes and visualizes data instantly, allowing users to make faster, data-driven decisions and detect structural issues at an early stage.
By simplifying monitoring workflows and enabling seamless integration with advanced SHM ecosystems, MyMo improves overall efficiency and scalability of structural assessments. It empowers teams to optimize maintenance planning, reduce operational risks, and ensure long-term infrastructure safety, making structural monitoring more accessible, reliable, and cost-effective.
Its flexible mounting options—
Key Advantages:
|
Feature |
MyMo |
Traditional Methods |
|
Contactless |
✅ |
❌ |
|
No reflectors/prisms |
✅ |
❌ |
|
Traffic disruption |
❌ |
✅ |
|
Setup time |
Fast |
Slow |
|
Area coverage |
Large |
Limited |
Applications:
 1.jpg)
|
Parameter |
Details |
|
Max Measurement Distance |
400 m |
|
Displacement Accuracy |
0.1 mm (sub-millimetric) |
|

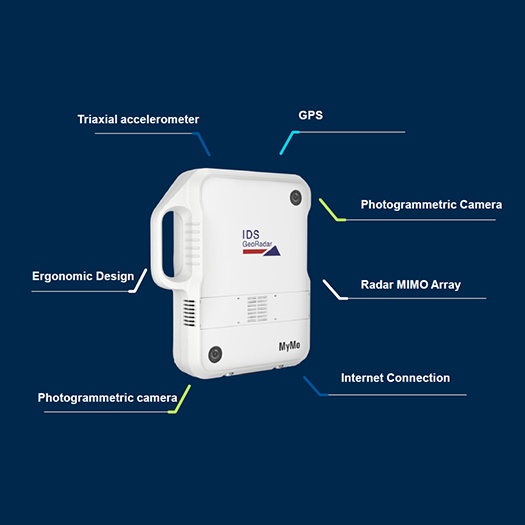

Sensors |
GPS + Triaxial Accelerometer |
|
Acquisition Rate |
Up to 400 Hz (Dynamic), 15 sec (Static) |
|
Spatial Resolution |
0.2 × 1.8 m (at 100 m) / 0.8 × 7.2 m (at 400 m) |
|
Field of View |
30° (H) × 30° (V) |
|
Operating Temperature |
-20°C to +50°C |
|
Technologies Used |
Interferometric Radar + Photogrammetry |
|
Connectivity |
Ethernet, SIM Slot |
|
Power Consumption |
28 W |
|
Battery Autonomy |
~5 hours (hot swappable) |
|
Power Supply |
220 / 110 V AC |
|
Environmental Protection |
IP65 |
|
Dimensions (L*W*H) |
32 × 27 × 11 cm |
|
Weight (in kg) |
4.3 |
NDT MyMo is used for structural health monitoring (SHM) of bridges, buildings, slopes, and infrastructure by measuring vibrations and displacements without physical contact.
It combines interferometric radar and photogrammetry to remotely measure structural movements and generate real-time displacement data.
NDT MyMo provides sub-millimetric accuracy (up to 0.1 mm), making it ideal for precise structural monitoring.

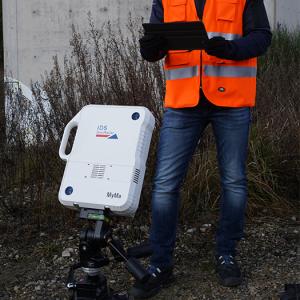

Yes, MyMo is a lightweight (4.3 kg), portable system that can be deployed by a single operator within minutes.

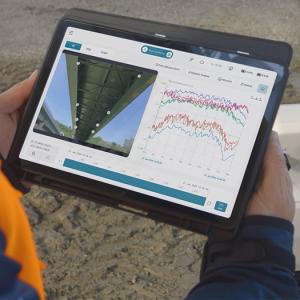

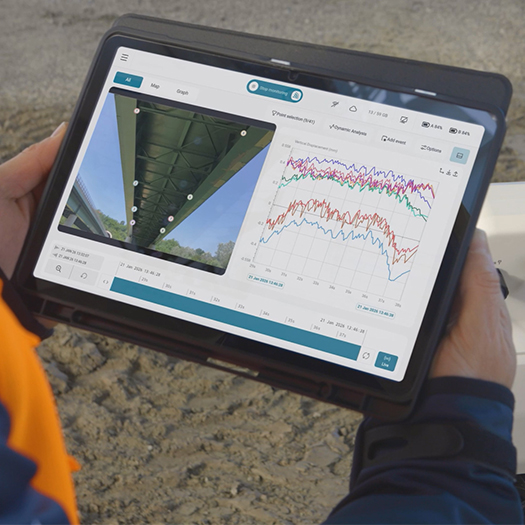

Yes, it provides real-time monitoring and visualization through an intuitive web-based interface.

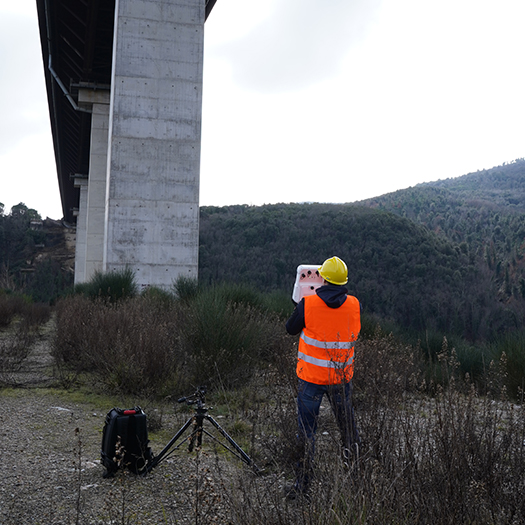

It can monitor bridges, buildings, dams, slopes, towers, and wind turbines.
No, it is a non-contact solution, meaning no sensors need to be installed on the structure.
Yes, it supports data export and integration with advanced SHM and GIS systems.
NDT MyMo can monitor structures up to 400 meters away.
Yes, with IP65 protection, it is designed for outdoor and challenging field conditions.
