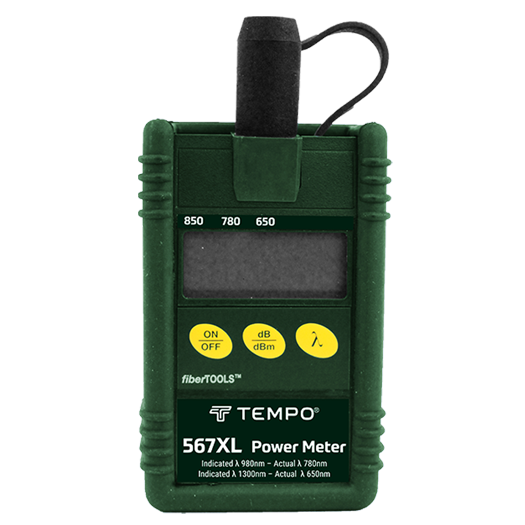

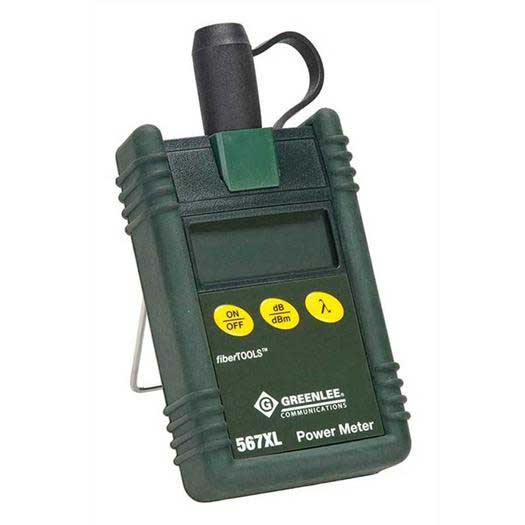

567XL Silicon Fiber Optic Power Meter



567XL Silicon Fiber Optic power Meter designed for the technician to perform installation and maintenance measurements on fiber optic cabling networks.

The instrument family consists of individual instruments (optical power meters, 850/1300nm LED sources, 1310/1550nm Laser sources, Visual Fault Locator) and complete Insertion Loss Test Sets. Designed to accurately measure optical power levels and link loss on multimode and single mode cabling networks. These full feature general purpose fiber optic instruments are easy to operate and economically priced to outfit all technicians performing fiber optic installation and maintenance.



Specifications
Product Specification
Detector Type 3 x 3.5 mm Silicon
Calibration Wavelengths 635nm, 780nm, and 850nm
Power Range +3 dBm to -60 dBm
Accuracy ±0.25dB
Linearity at: +3dBm to -3dBm ±0.5dB
-3dBm to -50dBm ±0.05dB
50dBm to -60dBm ±0.5dB
Resolution 0.01dB
Power Requirements Two AA size 1.5V batteries (approx. 100 hours continuous operation)
Connector Interface SOC
Features
Features
    • Easy to use - three buttons control all functions
    • Long battery life
    • Loss measurements in (dB); power measurements in (dBm)
    • 0.01dB measurement resolution
    • Snap-on connector interface adapts to FC, SC, and ST connectors.
    • User-selectable auto shut-off
    • Rugged and splash-proof
    • Economically priced


FAQ
FAQ


Product Info Downloads
Product Info Downloads

Product Information files contain the essential technical detail you need to make informed decisions on any particular product. Simply click on a title to download a PDF copy of that file. If you wish a hard copy of a brochure, technical advice on any product or a demonstration then please contact us. We're always happy to help!

Title
File Type
File Size
Last Uploaded
Product Datasheet
application/pdf
1.15 MB
May 27 2019 14:03:53
User Manual
application/pdf
2.99 MB
May 27 2019 10:40:37
