Sound Level Meter

Professional hand held sound meter for testing & inspection of noisy machinery, noise pollution checks, DG sets, air conditioning noise, industries, automotive etc.

The product is feature packed and very easy to use. The user can select weighing i.e.  A & C; A for human ear and & C for mechanical noise. The meter also provides data logging of 63 sets of data. Backlit display with backlit display and analog bar.

Specifications

Product Specification

Total Range 30 to 130dB
Maximum Level 130dB
Accuracy ±1.5dB
Range Selections 30 to 80dB, 50 to 100dB, 60 to 110dB, 80 to 130dB
Frequency Range 31.5Hz to 8000Hz
Frequency Weighting A and C
Time Weighting Fast (125ms)
Slow (1 second)
Analogue Bar Graph 30~130dB
Warning Over-Range "OVER", Under-Range "UNDER"
Analogue Outputs AC : 0.707Vrms full scale; Output impedance : around 600Ω
  DC : 2Vrms full scale; 10mV/dB; Output impedance around 100Ω

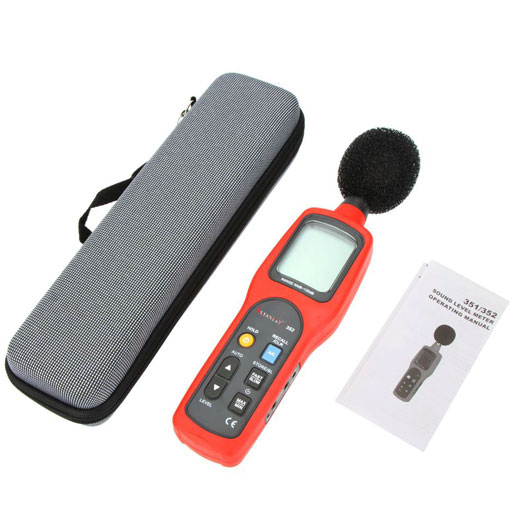

Product Supply Sound Level Meter Unit, 1.5V Battery, Manual & Carry Bag
Item Code ST-UT35

Features

Features

Data Hold
Display Backlight
Max/Min Mode
Sleep Mode
Low Battery Display : 4.8V
Data Logging : 63 data sets



Product Info Downloads

Product Info Downloads

Product Information files contain the essential technical detail you need to make informed decisions on any particular product. Simply click on a title to download a PDF copy of that file. If you wish a hard copy of a brochure, technical advice on any product or a demonstration then please contact us. We're always happy to help!

Title
File Type
File Size
Last Uploaded
application/pdf
616.3 KB
August 22 2014 02:03:32
application/pdf
590.38 KB
August 22 2014 02:02:38
