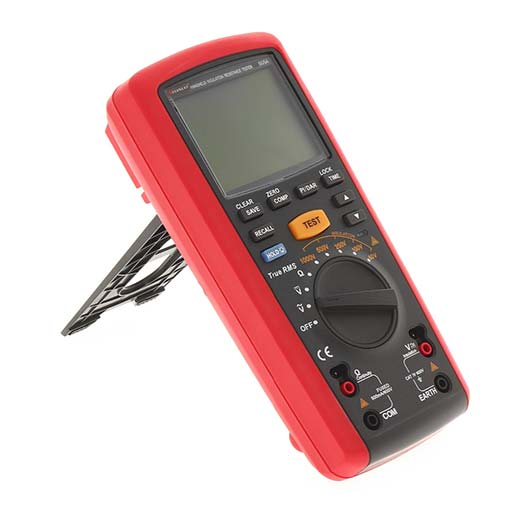

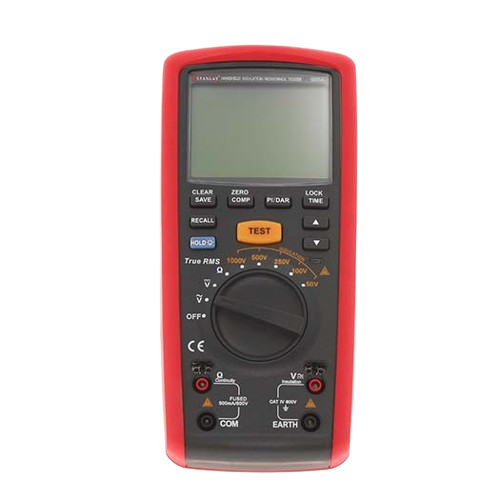

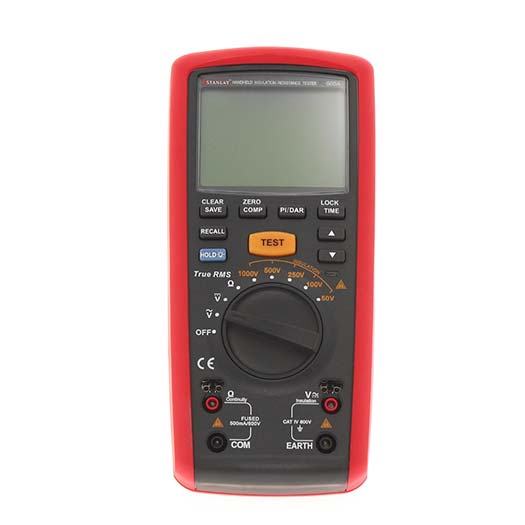

LV Handheld Insulation Tester cum Multimeter 505A

505A is a true RMS handheld insulation resistance tester with combined features of a digital multimeter and insulation tester. These testers can measure AC/DC voltage, frequency, resistance, capacitance, continuity, insulation resistance, PI, DAR, and automatically calculate resistance ratio to determine the insulation status. 505A can be used in insulation resistance testing of precision tool, including motors, cable, transformers, switches, electrical appliances, and insulated materials.

Features

Auto power off
LCD backlight
High voltage output alarm
99-group data storage
Data hold
Meets IEC 61557: 61557-1:2007; 61557-2:2007; 61557-4:2007

Specification

Auto Range	√
True RMS	√
Measurements		Range	Accuracy
Insulation Resistance (Ω)	50V	50V/100V/250V/500V/1000V	0%~10%
		0.01MΩ~50MΩ	± (3%+5)
	100V	0.01MΩ~100MΩ	± (3%+5)
	250V	0.01MΩ~200MΩ	± (1.5%+5)
	500V	0.01MΩ~500MΩ	± (1.5%+5)
	1000V	0.1MΩ~2000MΩ	± (1.5%+5)
		2GΩ~9.9GΩ	± (10%+3)
		10GΩ~20GΩ	± (20%+10)
	Load Current	50V (R=50kΩ) 1mA	0%~10%
		100V (R=100kΩ) 1mA	0%~10%
		250V (R=250kΩ) 1mA	0%~10%
		500V (R=500kΩ) 1mA	0%~10%
		1000V (R=1MΩ) 1mA	0%~10%
	Short Circuit Current	-	0%~10%
Low Resistance (Ω)	0.01Ω~20kΩ (About 5V/>200mA)		±(1.5%+3
DC Voltage (V)	0V~600V		±(2%+3)
AC Voltage (V)	0V~600V		±(2%+3)
Other Features
Step Voltage	10% Steps at 50%~120% of Range		√
DAR	60s/15s and 60s/30s		√
PI/Timing Measurement	√
Auto Discharge	√
Analog Bar Graph	√
Continuity Buzzer	√
Comparison Measurement	√
Low Battery Indication	√
Data Storage	99 Data sets
Category Safety Ratings	CAT IV 600V
General Characteristics

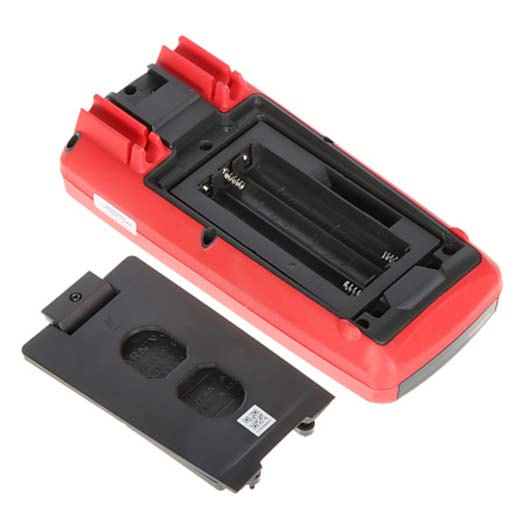

Power	1.5V Battery (LR6) x 6
Display	78mm x 59mm
Product Net Weight	630g
Product Size	103mm x 225mm x 59mm

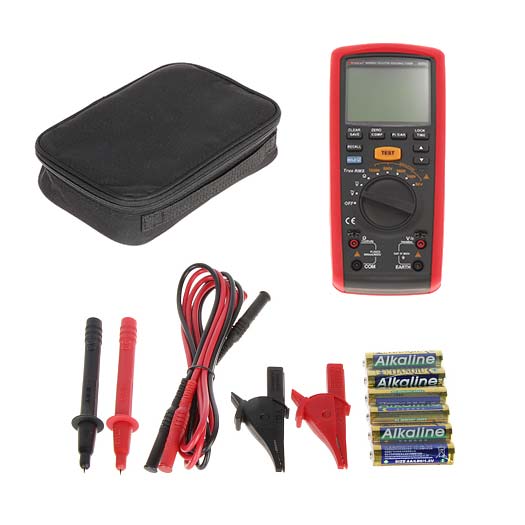

Standard Accessories	Batteries, Test Leads, Test Probes, Alligator Clips
