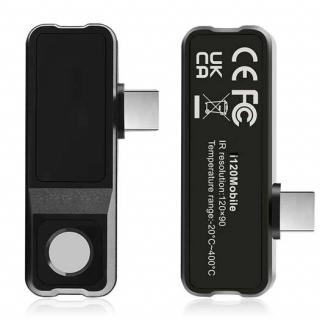

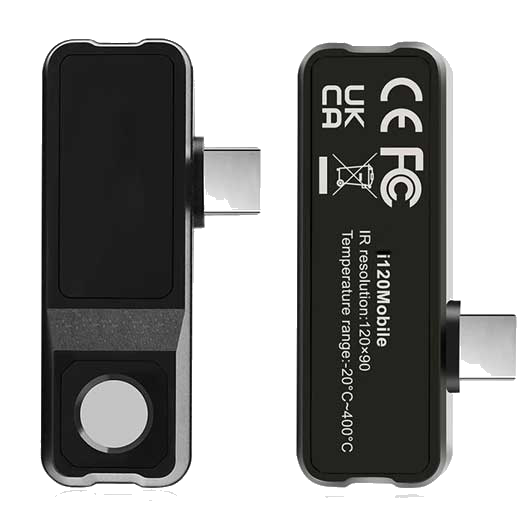

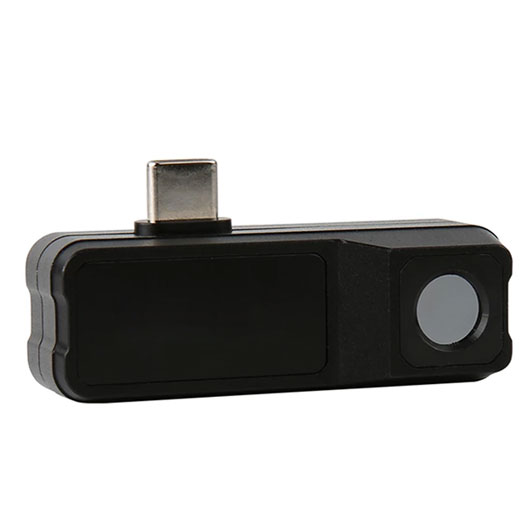

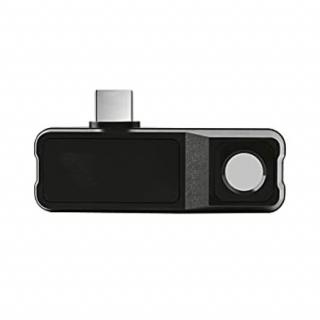

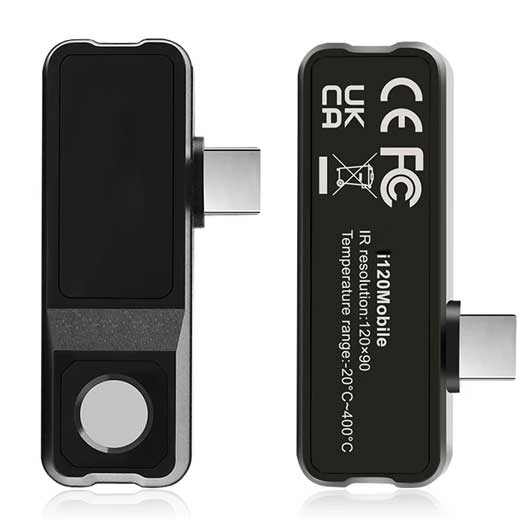

Mobile Thermal Imaging Camera ST-120

ST-120 Mobile Thermal Imaging Camera

ST 120 is a tiny sized Mobile thermal imager that plugs directly into your smartphone. This product is small in size, easy to operate & easy to carry in even pocket. Users can use it to detect problems faster and easier. Using the dedicated 120Mobile App, operator can get the real-time thermal video as well as images on smartphones. ST 120 Mobile Thermal camera provides clear images, faster response, and detects temperatures up to 400°C.

The 2m drop proof pocket thermal camera has 7 plates options & 3 display modes: Thermal, blending (blend with image of mobile phone ) & PIP.

The ST120 Mobile Thermal Imaging Camera is an indispensable tool for checking switchboards, Power Distribution Inspection, PCB Inspection, troubleshooting HVAC problems, or troubleshooting hidden heat sources inside and outside the house.

Request Quote

Features

An extension camera for smartphone
Integrated with smartphone camera for image blending
Extension cable for various scenario
Very tiny size for carry-on support users at any time
Infrared resolution: 80x60 to 120x90
Temperature measurement range: -20℃~400℃

Specification

Specifications	ST120Mobile
Certifications	CE, FCC, RoHS
IR resolution	120×90 pixels
Field of view (FOV)	50°×38°
Thermal sensitivity (NETD)	＜60mk
Temperature range	-20~400℃
Emissivity	0.1-0.99(adjustable)
Frame rate	25Hz
Measurement accuracy	±2℃ or ±2% whichever is greater
Display modes	Thermal, blending (blend with image of mobile phone), PIP
Image capturing modes	Take photos or videos
Plate	Iron Red, Rainbow, Gray scale, Red hot, Black White, Lava, High-Contrast Rainbow
Image format	JPG
Data communication	Type-C USB
Drop proof	2m
General Characteristics
Product color	Black and grey
Product net weight	25g
Product size	53X18.2X18.5mm
Standard accessories	Type-C male to female extension cable, USB adapter
Standard individual packing	Gift box, English manual
Standard quantity per carton	20
Standard carton measurement	290×265×325mm

FAQ

Do you have a question which we can answer for you? Click here if Yes

Which mobile operating systems is the ST-120 thermal imager compatible with?

Compatible with Android phones. (not with iOs).
