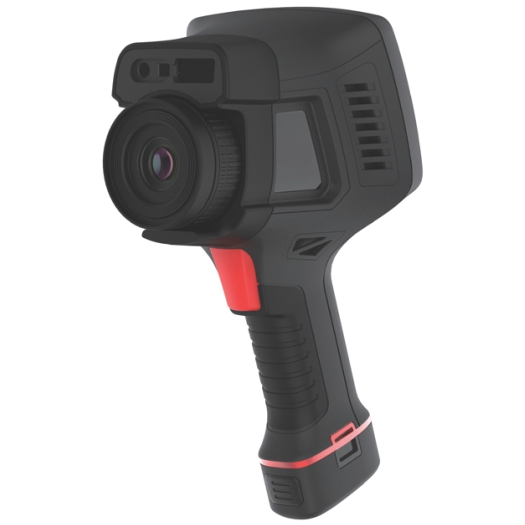

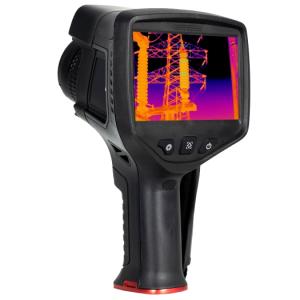

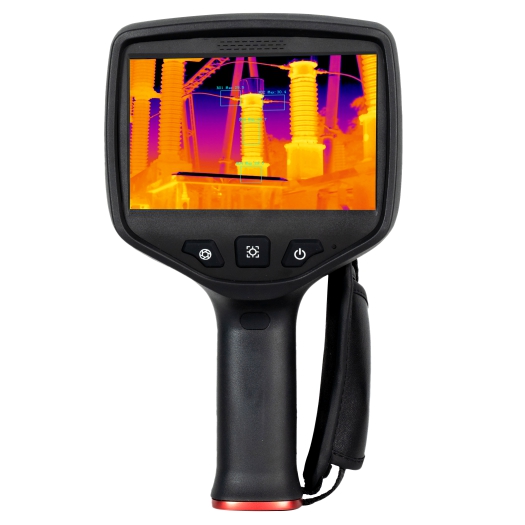

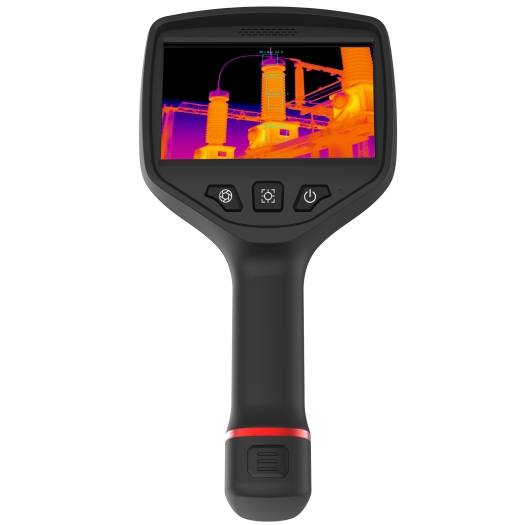

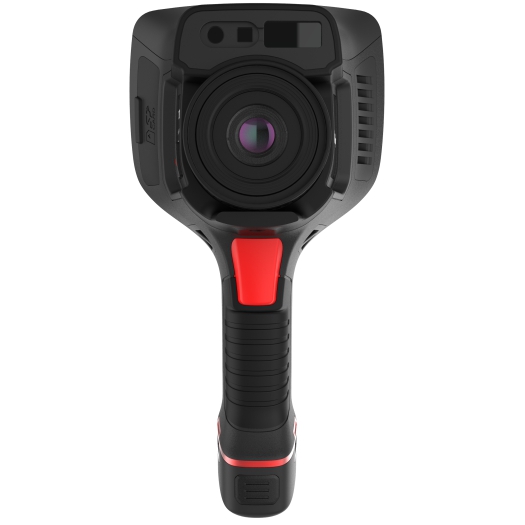

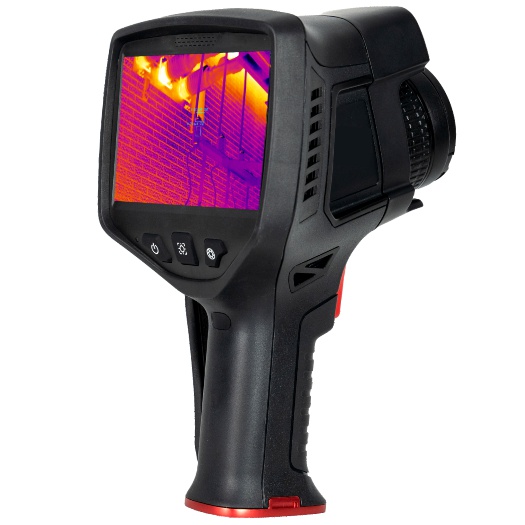

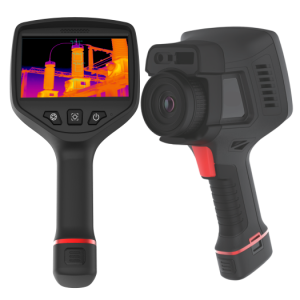

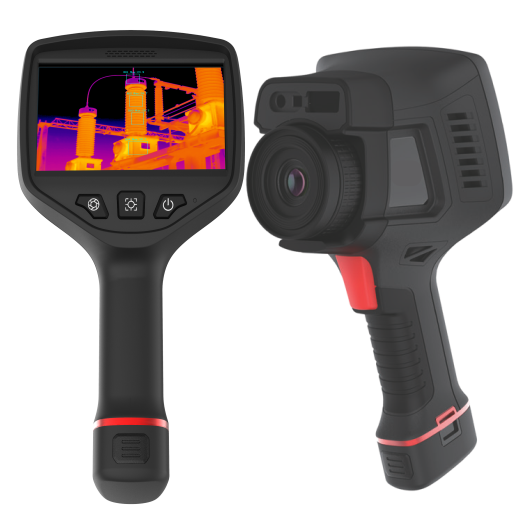

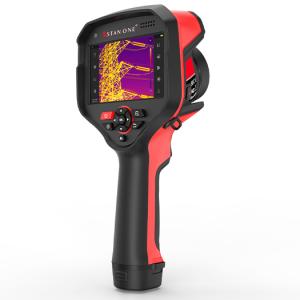

STX 300/600 Auto Focus Handheld Thermal Imaging Camera

The STX 300 & STX 600 are powerful Auto Focus handheld Thermal Imaging Cameras with “Interchangeable“ lens options to allow configure as per application & distance requirements.

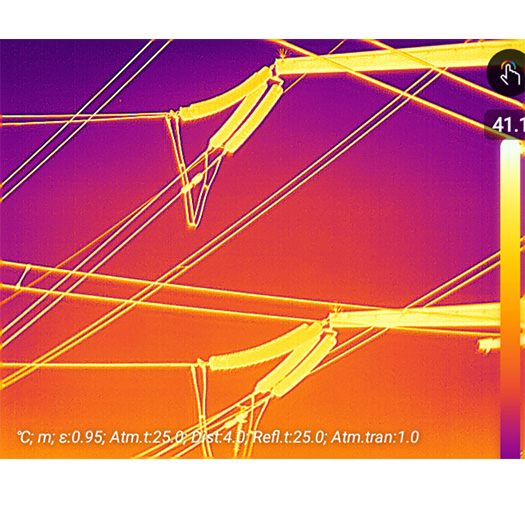

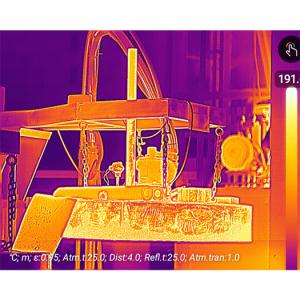

STX Series Thermal Imager also works as continuous temperature monitor device, detects temperature range of -20°C ~ 650°C (optional +2000°C) With Automatic focusing, Manual focusing & E Focusing options, the technician or operator will always capture high definition, high precision thermal & visual images meeting the need for intelligent inspection with database management, Image retrieval, comparison & analysis functions for defect diagnosis.

STX300 & STX600 IR thermal cameras automatically captures the highest to lowest temperature of the frame offered with Smart Temperature Control & Alarm system an operator can set the temperature range accordingly to their needs, if thresholds are reached or exceeded, the Alarm System will notify based on Audio & Visual alarm.

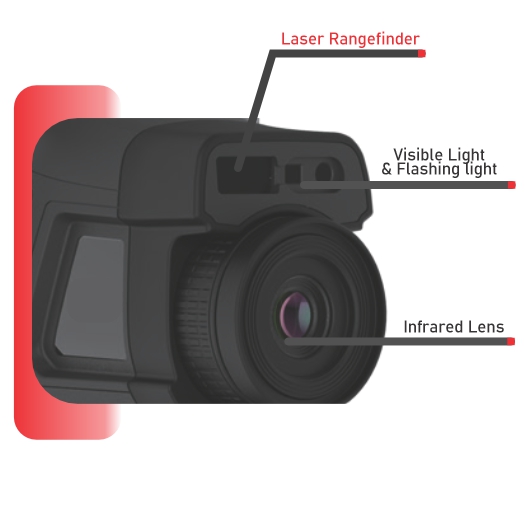

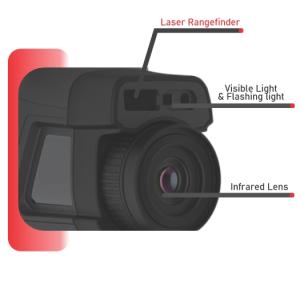

Integrated Laser Rangefinder is a Smart Distance Measurement Function till 40 meters. By combining the distance information with the thermal imaging data, a range finder can provide a more accurate temperature measurement of an object by compensating for any errors introduced by the distance between the camera and the object.

Key features include : 5” Touch screen display, 5MP digital camera with LEDs, 10 color palettes, 32GB in-built memory, 3 hours battery back up,

STX Series Thermal Imaging Cameras are available in two variants :
STX 300 : thermal resolution 384 x 288
STX 600 : thermal resolution 640 x 512

Interchangeable Lens include Wide-angle to Long-focus options.

Features

Interchangeable lens options, configure at time of order per application equirement.
5” Touch Screen
5MP Digital camera
Wifi connectivity & USB interface
HDMI connectivity to external display
Built in GPS
Bluetooth Connectivity
Advanced analysis software

Specification

Product		STX300			STX600
Detector type		Uncooled VOx IRFPA
Detector resolution		384 x 288			640 x 512
Spectral band		8~14μm +/- 0.5mm
Frame rate		50Hz
Thermal sensitivity		35mK
FOV		Standard 24°×18° Optional: 12°, 6°, 48			Standard 24°×19.3° Optional: 12°, 6.0°, 48°
IFOV		Depending on lens configured
Focusing mode		Automatic/Manual/Electric
Imaging distance		0.3m~∞(with 48°lens); 0.5m~∞(with 24°lens), 1m~∞(with 12°lens) 4m~∞(with 6°lens)
Laser pointer/range finder		Distance：0.3m~40m, ranging accuracy：±(1.5cm+5% of reading)
Measurement range		-20℃~150℃, 0℃~410℃, 300℃~650℃ (2000°C optional)
Measurement accuracy		±2℃ or ±2%
Measurement mode		Automatically capture the highest & lowest temperature of the frame
Color palettes		10 color palettes
Visible camera resolution		Built-in 5MP digital camera, with LED lamp
Display		5” Touch screen, 640 x 480 display pixels
Imaging viewing modes		Thermal, dual-spectrum fusion, visible light, PIP
Isotherm		Available
Digital zoom		1x, 2x, 4x, 8x
Connectivity		Wifi, HDMI, USB
Bluetooth		Listen to audio information through bluetooth headset
GPS		Built-in GPS, 4G for remote data transmission
Voice & text annotation		Yes, upto 60 seconds voice annotation
Alarm system		Audible & visible alarm
Alarm method		Sound & light alarm for the temperature value, higher or lower.
Storage		32GB, upgradable to 128GB
IR image format		JPG including temperature data
Visual image format		JPG/PNG
IR video format		H.264/IRV radiometric IR video
Battery type/power supply		Rechargeable and detachable Lithium battery / DC12V
Battery operating time		Upto 3 hours (single battery) at 25°C (Note : 2 batteries supplied per unit)
Charging system		Two-bay charger or 12V car charger
Operating/storage temp		-20°C~55°C / -40°C~70°C
Ingress protection		IP54
Certificates		UN38.3/SDS/CE/FCC/RoHS
Dimension/size		260x135x136mm / 1.3Kg
Table 2 : Camera lens options
Product	Resolution		FOV	Lens		Target size	Effective distance
STX600	640 x 512		6.0°	72.5mm		100 x 100mm	4m ~121m
			12°	36mm			1m~60m
			24°	18mm			0.5m~30m
			48°	9mm			0.3m~15m
STX300	384 x 288		6°	50mm			4m~59m
			12°	25mm			1m~29.5m
			24°	13mm			0.5m~15m
			48°	6.5mm			0.3m~7.5m
