AOR-500 OTDR

Palm OTDR

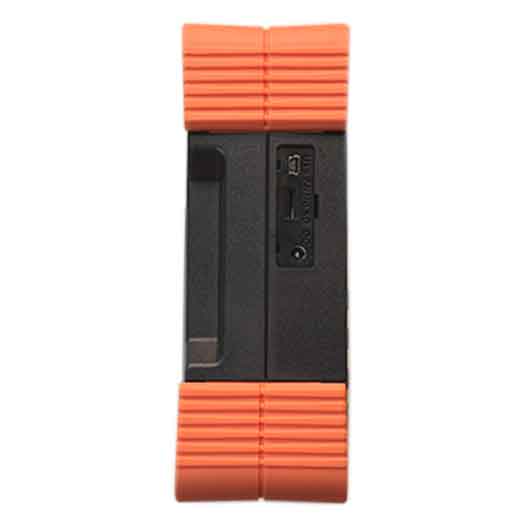

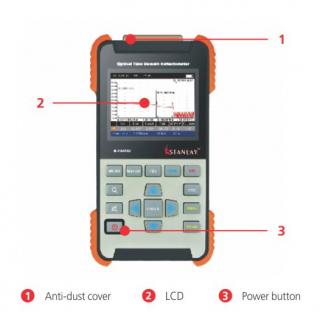

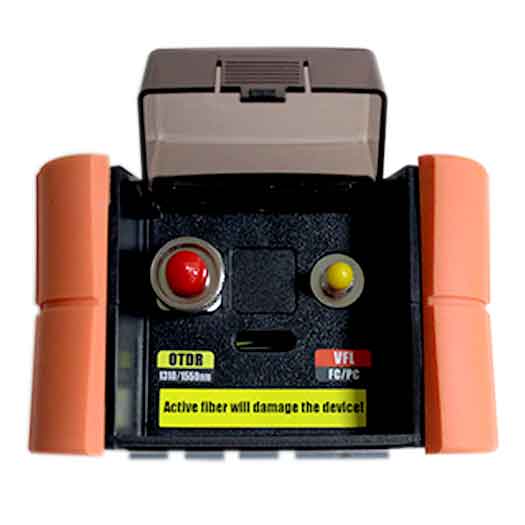

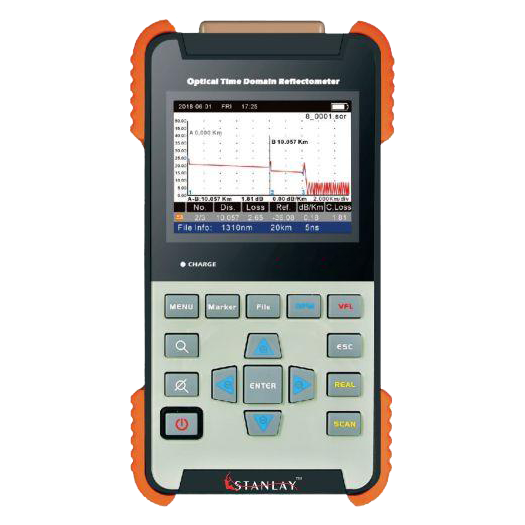

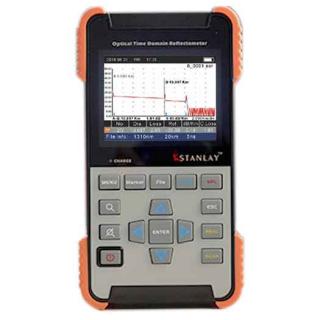

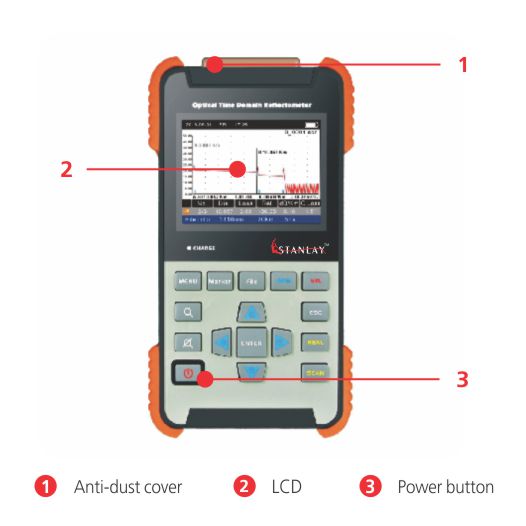

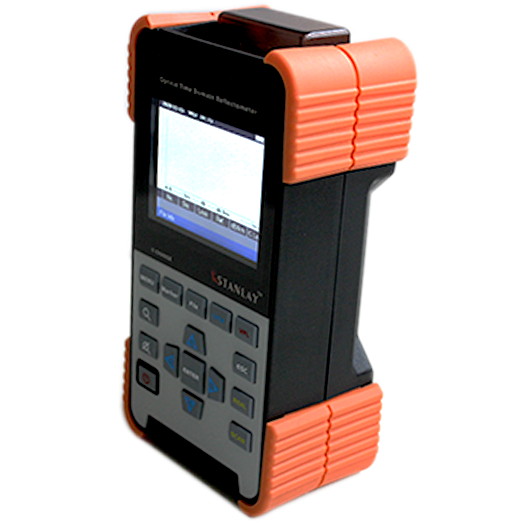

AOR500 OTDR is palm rugged, handheld and easy to operate OTDR provided with a 3.5-inch TFT color screen mainly for use in FTTx projects or CATV networks to help technicians measure the fiber length and attenuation loss.

Multi – wavelength capability: AOR500 OTDR is a modular OTDR which can include 2 to 3 test wavelengths based on user selection. Module options include options for Multimode optical fiber, Single mode optical fiber and PON networks.

The AOR500 module can be configured accordingly to have operating wavelengths options of 850nm, 1310nm, 1310nm, 1490nm, 1550nm and 1625nm and is provided with a very capable user friendly OTDR simulation software which shows details of events.

AOR500 OTDR is an economy OTDR with built-in Visual fault locator 1mW as standard feature.





Specifications
Product Specification

Module Options | AOR500+

S

A

B

PB

MM-A

Type of Fiber

Single Mode

Single Mode PON

Multi-Mode

Dynamic Range

24/22dB

28/26dB

32/30dB

35/34/34dB

22/24dB

Wavelength (nm)

1310/1550

1310/1550/1625

850/1300

Dual/Triple Wavelength Options

Dual

Triple

Dual

Pulse Width

5ns-10μs

5ns-20μs

5ns-1μs

Display

3.5inch color LCD, Touch Screen, Large color display

Event Dead Zone (EDZ)

1.5m

Attenuation Dead Zone (ADZ)

5.0m (4m/9m@850nm)

Distance Accuracy

(0.8+0.005% * Testing Distance + Resolution)

Resolution

0.001dB

Min. Distance Resolution

0.1m

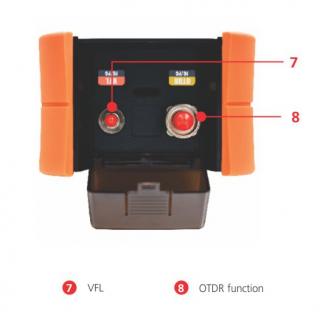

Visual Fault Locator (VFL)

1mW (0 dBm)

Optical Power Meter*

Optional Feature*

Connector Adaptor*

FC/PC (850/1300/1310/1550), FC/APC (1625) Or SC interchangeable adapter (Optional: ST, LC interchangeable adaptors)

Data Storage

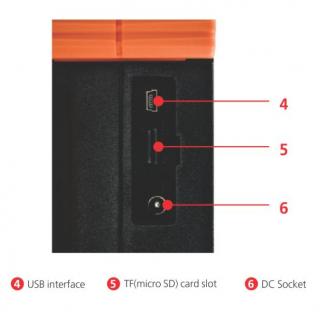

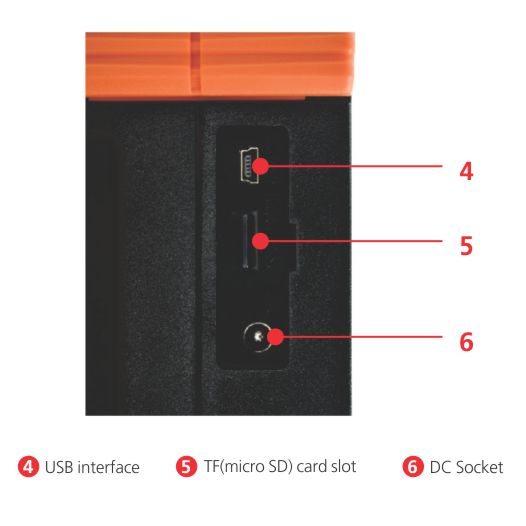

Micro SD Card

Communication Interface

USB

Stabilized Laser Source (SLS)

Standard built in SLS

Size (mm)

197 x 107 x 67

Weight (g)

About 750

Storage / Operating Temperature/

Relative Humidity

-20°C to +60°C / -10°C to +50°C / < 90%RH

Power Supply, Operating Time

Built-in rechargeable battery, ≥ 8hrs operation (15hrs standby)

Standard Accessories

Carrying bag, AC/DC adaptor, USB cable, calibration certificate, SD card, manual, (FC/UPC or SC/UPC) connector (connector to be specified at time of ordering)

Optional Accessories

Connector Adaptor: ST/LC/APC

*To be specified at time of ordering (separate purchase line item)

Features
Features
  • Built-in VFL
  • Automatic one-button testing
  • Wavelength options:
    850nm/1300nm/1310nm/1550nm/1625nm
  • Integrated PALM design, small, light, easy to carry
  • High contrast color TFT LCD
  • Input laser signal auto detection and self-protection
  • Easy to operate for beginners and experts
  • User-friendly OTDR simulation software shows details of events
  • Three-year recommended calibration interval
