All-in-One Kit Contact 2 Ultrasonic Pulse Velocity Tester

Ultrasonic Concrete Tester

All-in One System is modular Ultrasonic pulse velocity test equipment kit for Non-destructive testing of checking homogeneity of concrete structures, masonary & rocks. The NDT instrument is designed for construction, building and geophysical research industry.

All-in One system serves the function of ideal field use instrument that is  :

- rugged and reliable Ultrasonic test equipment .
- with various dedicated piezoelectric sensors and probes
- with a multichannel controller and
- selectable sampling rates from 1OOHz – 10 MHz
- All acquired signals are displayed, computed and memorized directly on tablet pre-installed software. Connection between All-in One system and tablet is via Wi-Fi.

 All-in-One, manufactured by Solgeo Italy is available in two Kit options  for Ultrasonic and sonic testing :

All-In-ONE

Application

# of transducers used

Optional

Contact KIT 2

Ultrasonic Pulse Velocity test measurement Kit

1 transmitter, 1 receiver



Contact KIT 3

Ultrasonic and Sonic test measurement Kit

1 transmitter, 2 receivers

Instrumented hammer for Sonic test, Tomography software

Note: All-in-One is further scaleable, per user requirement for Cross Hole testing.

All-in-One Contact KIT 2: Ultrasonic Pulse Velocity test equipment is based on use of based on 2 nos 55 kHz or 20 kHz transducers for evaluating concrete homogeneity uniformity, cavities, cracks, delamination & deterioration for determining quality of concrete and other masonry materials of structures. Conforms to UNI EN 12504-4 ASTM D2845-08 and ASTM C597-02 standards

 KIT CONTACT 2: Ultrasonic Pulse Velocity Test KIT comprises of:

  • CONTACT-APP software for data storage

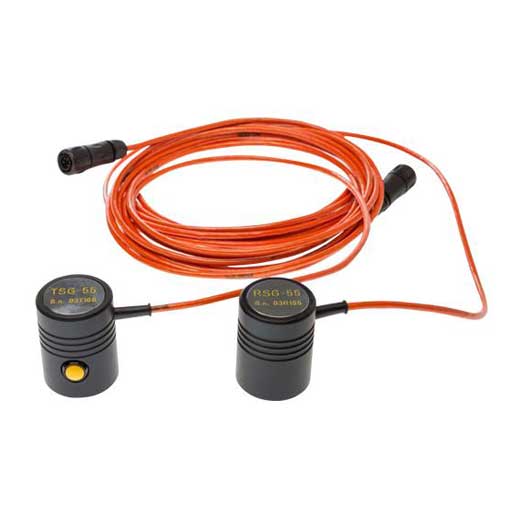

  • 2 nos transducers including 1 nos Ultrasonic transmitter T x 55 kHz with 5m cable length and 1nos Ultrasonic receiver R x 55 kHz with 5m cable length
  • Test sample, transport bag (item code KV-LL1.C2)

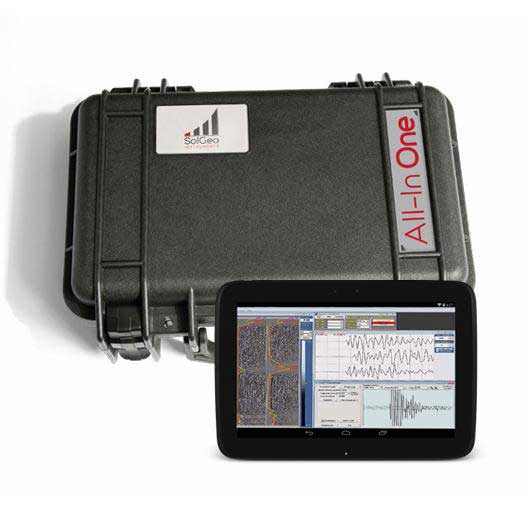

  • Android 10" TABLET

·       All-in-One Contact 2 is scalable , per user selection, in future to serve the following different types of tests :

Kit CONTACT3 for sonic and ultrasonic measurements on concrete specimens, walls, stone materials.
- Kit MCHA for checking posts and diaphragms.
- Kit  P.I.T for Pile Integrity Test through vibrational methods such as Echo test and admittance

Specifications
Product Specification

Channel

2 Channel Receiver input/ 1transmitter

Converter Type

2 A/D x 12 bit converter

Input Type

Differential/ Single ended/ IEPE

Input Voltage

± 5 Vpp

Amplifier

1 to 1024 software selectable

Pretrigger

Selectable, 0 to 80%

Time Base

50kHz to 10MHz (10MHz/1Ch - 5MHz/2Ch)

Sample Per Event

1K to 8 K for channel

Travel Time Resolution

100ns

Sample Resolution

12 bit@10MHz to >16 bit@ 50kHz (with oversampling)

Bandwidth

> 1MHz

Filter

Antialias, Digital custom filter selectable (DSP)

Trigger Type

Software

Voltage Out Transmitter

Selectable,100 V to 1200 V

Pulse Duration

Selectable,1 to 65000μS

Transmitter Pulse Repetition

> 20 measurement/second

I/O

USB 2.0/ WiFi 802.11 (100m)

Transducer Options

Piezoelectric-Type:

- Receiver Sensor (wall-type): 55 kHz

- Transmitter Sensor (wall-type): 55 kHz

- Transmitter Sensor (wall-type): 20 kHz

- Hammer with accelerometer

- Accelerometer Dytran

- Hole-Probe: Transmitter/ Receiver Diameter 26 mm; Length 150 mm;

50 kHz or 80 kHz

Recharging Time

4hours

Power Consumption

0.8W Standby / 1.6W Ultrasonic active

IP Rating

IP65

Automony

> 35hours

Power

Internal battery LiFePO4 (6Ah)

Temperature

0-60°C

Size

Length 32cm, size 21 x 21 x 9 cm

Weight (kg)

2.5

Features
Features
  • IP65 Protection: rugged and reliable Ultrasonic test equipment , instrument provided in a hard casing.
  • multichannel controller , allows use of multiple probes in future for reduced time of survey
  • selectable sampling rates from 1OOHz – 10 MHz.
  • All acquired signals are displayed, computed and memorized directly on tablet pre-installed software. Connection between All-in One system and tablet is via WiFi.
  • 2 probe system, 55kHz transducers as default, 20kHz (optional).
  • Active probes with pre-amplification and generation devices integrated
  • Suitable for distance up to 3m
  • Acquisition unit with high dynamic range and low electronic noise.
