196 1700V DC True RMS Solar Multimeter

196 1700V DC True RMS Solar Multimeter

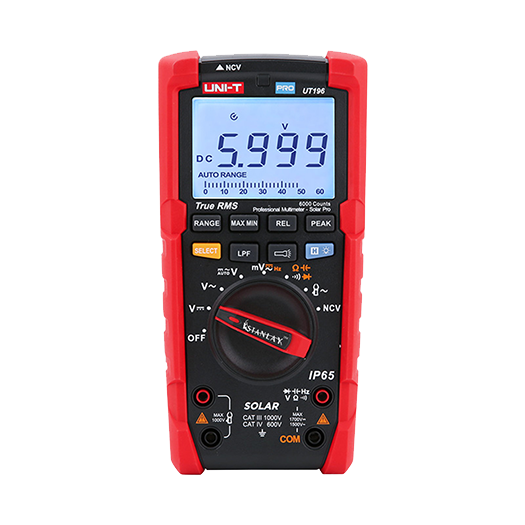

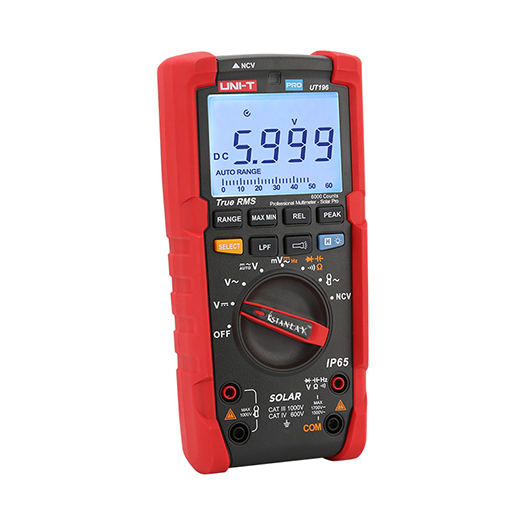

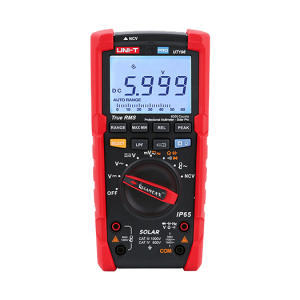

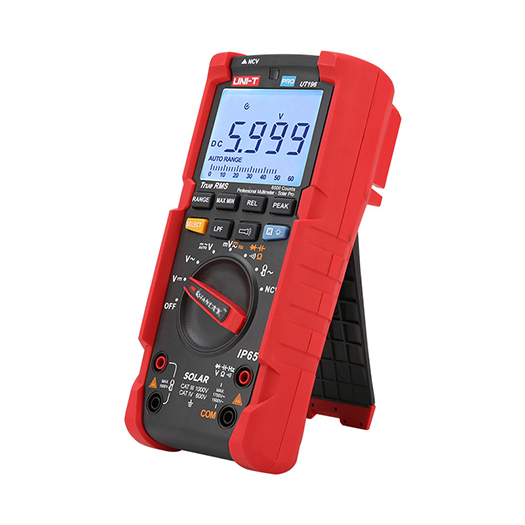

ST196 is a professional 6000 count True RMS solar digital multimeter for solar power system maintenance. The rugged multimeter is designed for technicians who work in rugged outdoor environments.

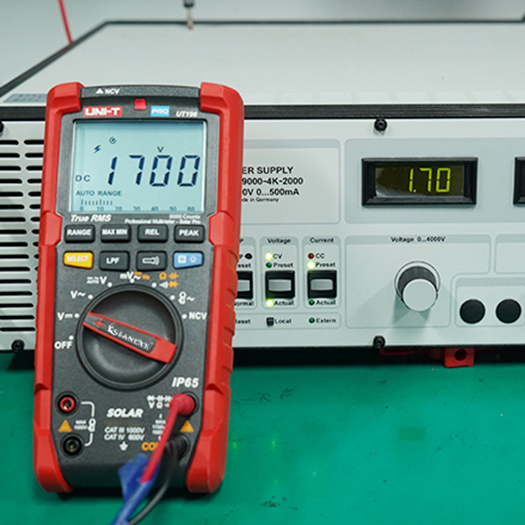

Enabled with measuring capacity up to 1700V DC & 1500V AC voltages, this digital solar meter offers IP65 protection and able to withstand 2m drop as well.

CAT III 1000V, CAT IV 600V safety-rated digital solar multimeter can be used to used to measure Battery capacitance within seconds and can filter out signals above 1kHz.

The Photovoltaic multimeter has multiple functions such as data hold, relative measurement, peak measurement, low pass filtering,  low voltage indication, backlight, auto power-off & more.

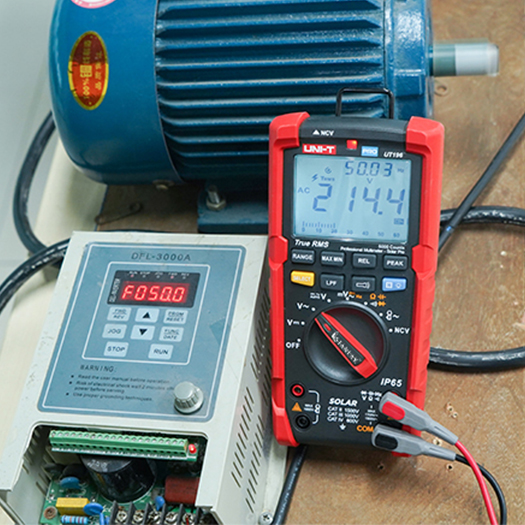

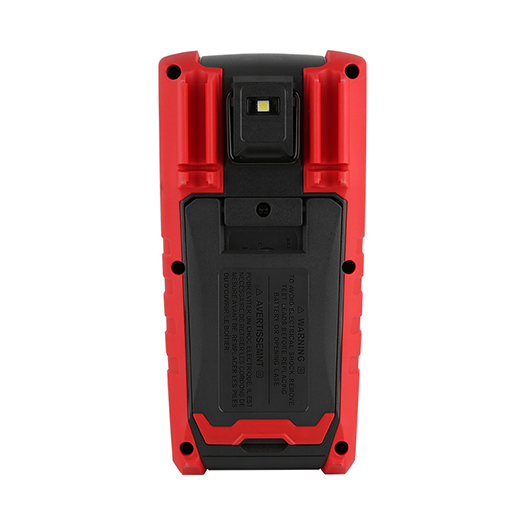

The 196 True RMS multimeter offers Automatic Identification of AC or DC voltage &  allows simultaneous display of frequency with AC Voltage or AC Current. Equipped with Built-in Flashlight & Backlight the solar multimeter helps an operator to work in Dark Environment.
