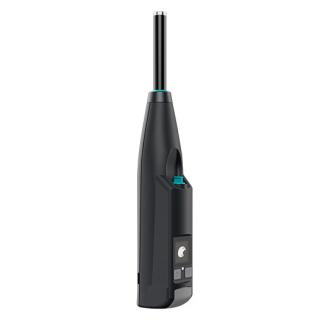

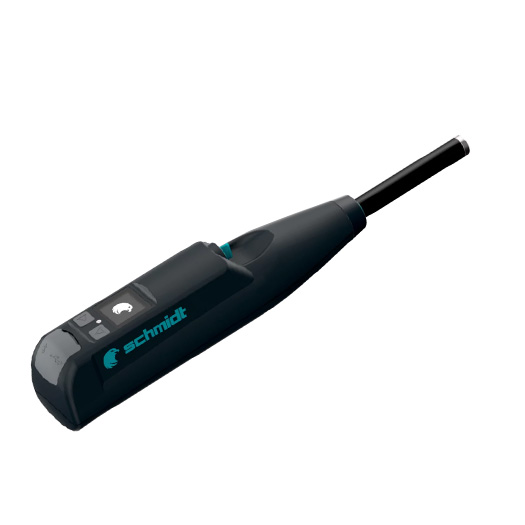

OS8200 Original Schmidt Hammer

Original Schmidt Hammer

OS8200 concrete test hammer is a rebound hammer which has  long been the global benchmark for non-destructive compressive strength testing of concrete.

Rebound Hammer test on concrete is a Non-destructive testing method of concrete which provides a convenient and rapid indication of the compressive strength of the concrete.

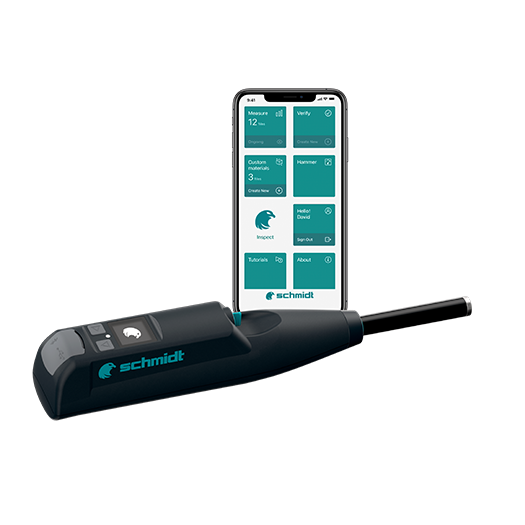

The OS8200 Proceq Rebound hammer is integrated through a Schmidt mobile app that lets you annotate measurements with voice, photos and comments & generate reports instantly. One can easily share the generated report in a second. The Digital hammer can wirelessly connect to a bluetooth printer for direct print-out of test results.

In OS 8200, the output Q value brings greater accuracy at higher strengths as it is proven that  Q-value delivers more accurate correlations for custom material curves.

The Silver Schmidt hammer acquires the Q-value by measuring the velocity (V) of impact and of rebound immediately before and after the impact, Q-value need not be corrected for impact direction. Hence, no mechanical loss due to friction, of gauge , gravity etc occurs & it gives high accuracy output.

Specifications
Product Specification

Software / Workspace App
Tech Specs

Workflow features

Voice read-out of each impact (only on iOS®)
Logbook with geolocation, audio, image and text annotations
Series statistics Single series reporting: PDF, CSV Test-region reporting (multiple series)
: PDF, CSV, uniformity report, EN13791 characteristic strength report

Display

Any compatible Apple® iOS device
(please see App Store for details)
Any supported Android™ device
(please see Google Play Store for details)

Measurements

Test region reporting
Select units, form factor and correlation curves
Create your own custom curves
Create custom curves databases for your own mixes

Verification features

Options: EN12504-2, Manufacturer's recommendation, JGJ-T23

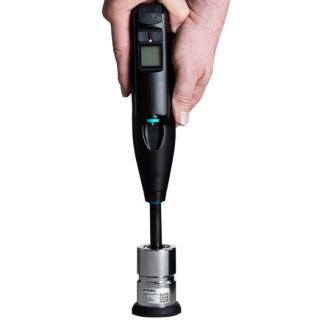

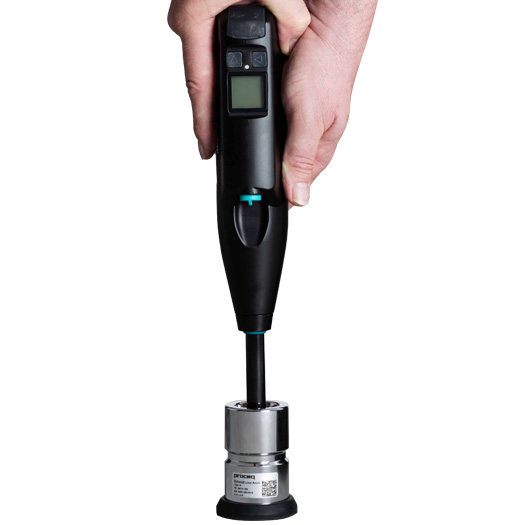

User reminder when verification check on the anvil is required
User guidance for verification procedure

Cloud features

Cloud synchronization
Cloud-enabled Logbook
Cloud-based report generation

Report Generation

Single, multiple series, test region (uniformity, EN13791)

Languages

English, German, Japanese, Chinese, Korean, Spanish, Portuguese, Italian, French, Russian









Sensor
Tech Specs

Instrument Firmware


Automatic calculation of rebound value according to international standards

Memory


Instrument memory > 20,000 impacts
Display memory - Memory of iOS or Android device

Impact Energy

2.207 Nm (N), 0.735 Nm (L)

Compressive Strength Range

10 to >100 N/mm2 (1,450 to>14,500 psi)
L-Hammer with optional mushroom plunger: 5 to 10 MPa (725 to 1,450 psi)

Display

Analog & backlit digital (100 x 100 pixels, graphic)

Connections


Low energy Bluetooth®, USB for charging and updates

Measurements

Impact angle independent
Displays the series on-screen as you work
Series validity checked automatically
Review an entire series
Delete impacts

Battery

Standard AAA, alkaline or rechargeable

Battery Lifetime

> 20,000 impacts between charges

Operating Temperature

0° to 50°C

Languages

English, German, Japanese, Chinese, Korean, Spanish, Portuguese, Italian, French, Russian

Features
Features
  • Instant report generation on the go
  • Best-in-class strength correlation
  • Fully assess an entire test region in less than 10 minutes
  • Versatility- Accurately test the widest range of concrete strength classes
  • Accuracy- Output Q value gives highly accurate output at higher strength


FAQ
FAQ
Frequently Asked Questions (6 answered questions)
More than 20000 Impacts

Person name: Asian

Yes, Instant report generation possible in the instrument.

Person name: Asian

Yes, Hammer can be connected to Bluetooth printer for direct print-out of test results.

Person name: Asian

0° to 50°C

Person name: Asian

The Output Q- value is highly accurate & calculated by the ratio of inbound velocity & outbound velocity. It is virtually free of all mechanical errors.

Person name: Asian

10 to >100 N/mm2 (1,450 to>14,500 psi)

Person name: Asian



Product Info Downloads
Product Info Downloads

Product Information files contain the essential technical detail you need to make informed decisions on any particular product. Simply click on a title to download a PDF copy of that file. If you wish a hard copy of a brochure, technical advice on any product or a demonstration then please contact us. We're always happy to help!

Title
File Type
File Size
Last Uploaded
application/pdf
1.04 MB
October 18 2021 17:58:41
