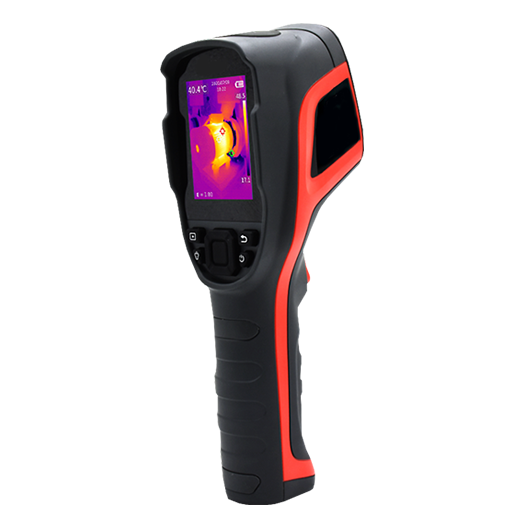

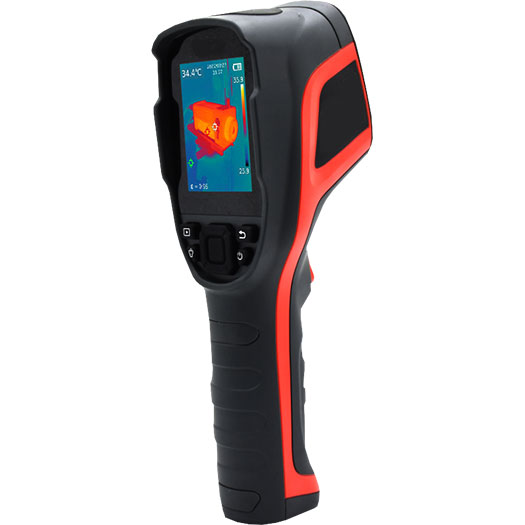

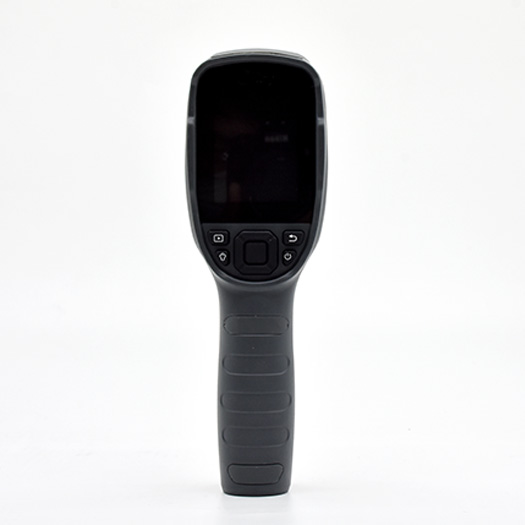

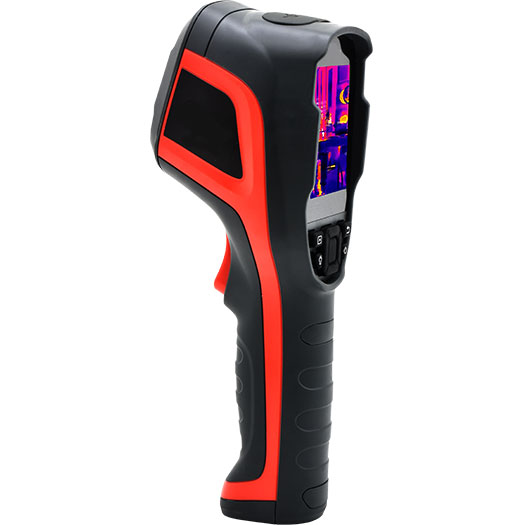

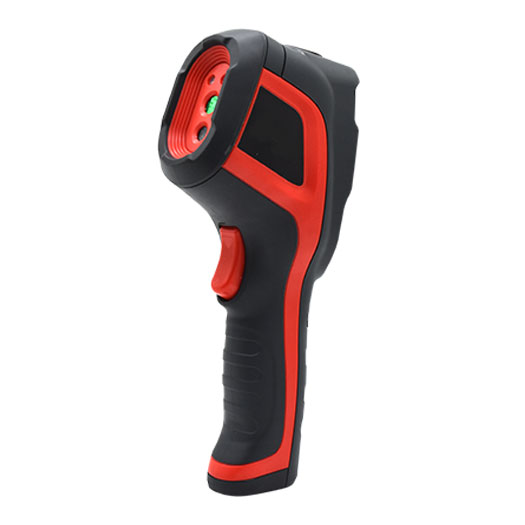

S280 Handheld Thermal Imaging Camera

S280 is a high performance handheld thermal imaging camera at an economical price point with 256×192 resolution that provides clearer object images & allows small target observation.

Enabled with Type-C charging interface, it can be fully charged in 4h. With 11h battery life, it is ready to use for a full day.

The S280 Thermal camera offers Dual-spectrum vision which can better adapt to different observation scenes.

Focus-free design of Thermal Imager brings large FOV at the same distance. It can cover the entire electric cabinet at 1m distance and scan 10m² indoor floor in one glance.

Inspection in a narrow space has never been easier.

The S280 IR thermal camera has 4 images modes Thermal imaging, Thermal fusion, PIP, visible imaging & 7 pallete available that can easily locate hot spot and enhance detection efficiency.

Wider temperature range covers wider application areas; comes with -20C~+550ºC temperature range, the Thermographic Camera is enough From HVAC to automotive maintenance.

Good thermal sensitivity (NEDT <50mK) of S280 offers smallest temperature difference detection & makes it also suitable for inspection of building quality, material defect, and precision devices.

Request Quote

Features

Resolution- 256X192
Thermal Sensitivity (NETD)- <50mK
Dual-spectrum Vision
4 Imaging modes- Thermal imaging, Thermal fusion, PIP, visible imaging
7 color Pallets
11h Ultra-long Battery Life
Temperature measurement range: -20℃~550℃

Specification

Model	S280
Detector Type	VOx uncooled infrared detector
Resolution	256×192
Spectral Band	8~14 μm
Pixel Size	12μm
Thermal Sensitivity (NETD)	<40mK
Frame Rate (in Hz)	25
FOV	56°×42.2°
IFOV	3.8mrad
Focal Length (in mm)	3.2
Focusing Mode	Focus-free
Measurement Range	Range 1: -20 to +150 ℃ ; Range 2: 100 to 550 ºC
Measurement Accuracy	±2% or ±2°C of the reading (the larger one shall prevail)
Measurement Resolution	0.1 ℃
Measurement Unit	℃, °F, K
Distance Setting	0.25 to 5m
Measurement Tools	Center temperature measurement/Hotspot and cold spot tracing
Image Modes	Thermal imaging, fusion, PIP visible imaging,
Palettes	7 palettes
Alarm Mode / Temperature Alarm	Full frame high/low-temperature alarm
Visible Camera Resolution	0.3 MP
Photo Function	Support, with temperature data
Secondary Analysis	Provide PC analysis software for secondary analysis of data
Display Screen Size (Inch), Resolution	2.8LCD (320×240)
Lighting	LED fill-in light
Data Storage	Standard 16GB SD card, supporting expansion
Battery Type	Rechargeable Li-ion battery
Power Supply	USB direct charging types C
Battery Operation Time (Hours)	11h, @25 ℃ indoor
Tripod support	Support, at the bottom of the handle
Operating Temperature \| Storage \| RH%	-10 ℃~+50 ℃ \| -20 ℃ to +60℃\| RH 10% to 95%
Charging Time	About 4h, @25℃ indoor
Drop Protection	2m
IP Grade	IP54
Dimension (L × W × H)	237×75×92 (mm)
Weight	520g

FAQ

Do you have a question which we can answer for you? Click here if Yes

What is the screen size of S280?

2.8”LCD
What is the field of View (FOV) of the instrument?

56°×42.2°
What is the temperature range of S280?

The temperature range of the S280 thermal camera is -20~550℃
What is the IR resolution of the device?

256×192 pixels
Is the instrument drop proof?

Yes, This device is 2m drop proof.
What is thermal sensitivity of S280?

<50mK
How many image modes are available?

4 Image Modes- Thermal imaging, fusion, PIP visible imaging

Downloads

Title	File Type	File Size	Downloads	View	Last Uploaded
Product Datasheet	application/pdf	2.68 MB			July 25 2022 16:29:40

S280 Handheld Thermal Imaging Camera

S280 Handheld Thermal Imaging Camera

What is the screen size of S280?

What is the field of View (FOV) of the instrument?

What is the temperature range of S280?

What is the IR resolution of the device?

Is the instrument drop proof?

What is thermal sensitivity of S280?

How many image modes are available?
