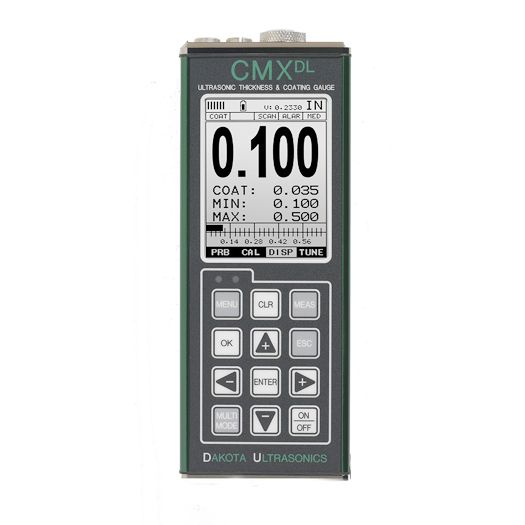

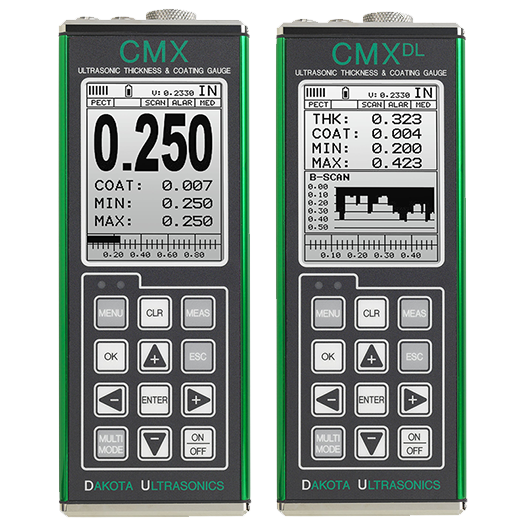

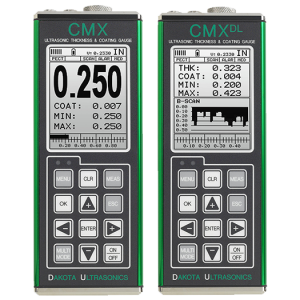

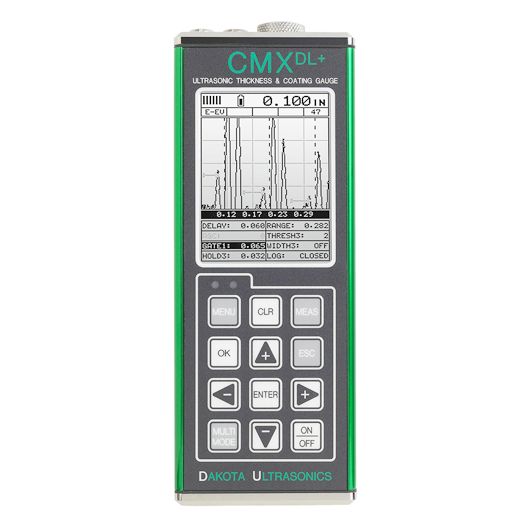

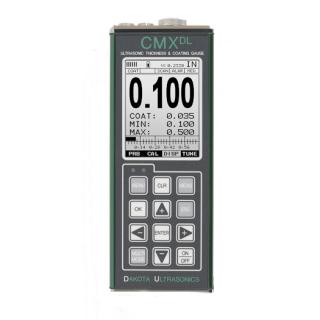

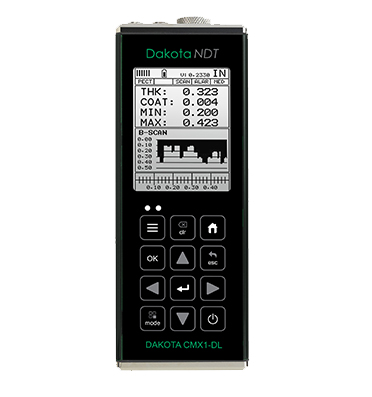

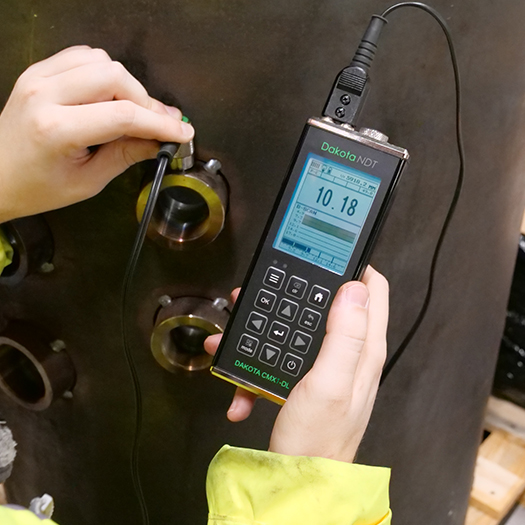

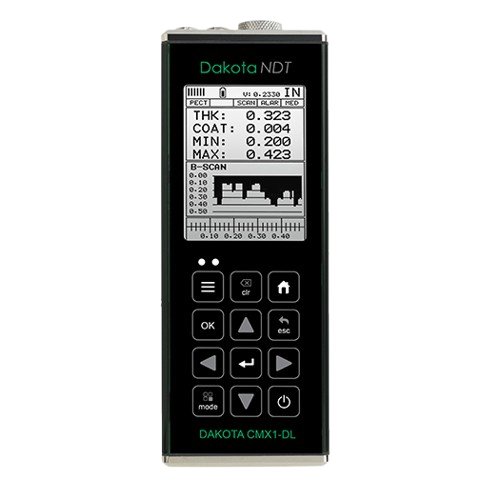

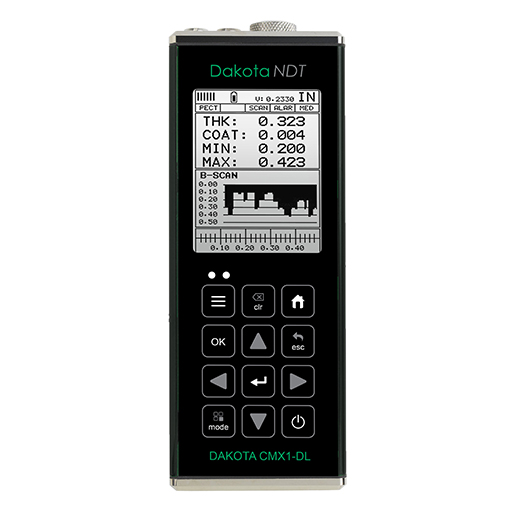

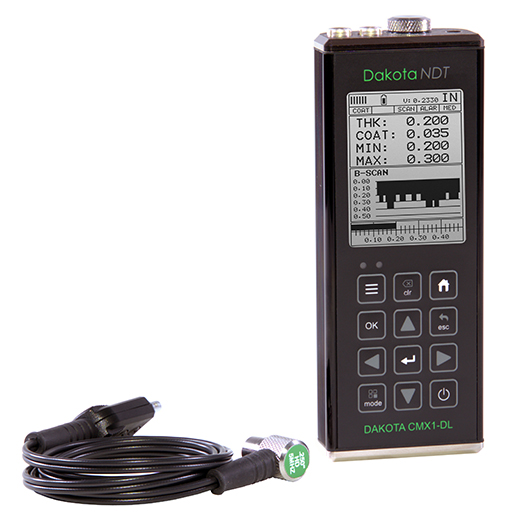

CMX : Material Coating & Thickness Gauge

  • Product Description
  • Specifications
  • Features

The CMX is an advanced thickness gauge that provides both material & coating thickness based on 100 MHz DSP platform using FPGA technology providing the highest capability.

The CMX is one of the most advanced thickness gauges, provides the best        combination power, performance & perfection.

The CMX material coating and thickness gauge has an advanced software menu functionality providing automatic probe recognition & probe zero multiple thickness measurement options P-E mode (coating off), PECT (coating on), PETP (Temperature Comperation), E-E mode (Measure Through Paint), CT (coating only) at the touch of a button, pre-fed material velocities to perform faster thickness measurements, B scan display option for cross section & high speed scanning.

Measurement Range Specification : Range :
Measurement Modes
Coating Off Pulse-Echo (P-E) 0.63 to 508mm
Coating On Pulse-Echo Coating (PECT) 0.63 to 508mm(Material)
    0.01 to 2.54mm(Coating)
Temp Comp Pulse-Echo Temp Comp (PETP) 0.63 to 508mm
Thru-Paint Echo-Echo (E-E) 1.27 to 102mm
Thru-Paint Verify Echo-Echo Verify (E-EV) 1.27 to 25.4mm
Coating Only Coating (CT) 0.0127 to 2.54mm
Coating Only Coating (CT) 0.0127 to 2.54mm
Pulser Dual square wave pulsers. ---
Receiver Dual receivers - manual or AGC gain control with 110dB range (Limited). ---
Resolution 0.01mm ---
Velocity Range 1250 to 13995 m/s ---
Transducer : Dual element (1 to 10 MHz), Locking quick disconnect "00" Lemo connectors. 4 foot cable. ---
Data Output:  Bi-directional RS232 serial port. Windows® PC interface software. ---
Display : 1/8 in. VGA grayscale display (240 x 160 pixels). Viewable area 62 x 45.7mm. (On/off/auto). ---
Case : Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed). ---
Keypad : Membrane switch with twelve tactile keys. ---
Power Source : Three 1.5V alkaline or 1.2V NiCad AA cells. Typically operates for 150 hours on alkaline and 100
hours on NiCad (charger not included). Auto power off if idle 5 min. Battery status icon.
---
Operating Temperature : -10° to 60°C ---
Size : 63.5 x 165 x 31.5mm ---
Weight : 382.75g (with batteries). ---
Item Code : ST-CMX ---
Measure material thickness. Material & Coating Thickness Gauges : CMX
Measure coating thickness.
Detects pits & flaws in a single mode (PECT).

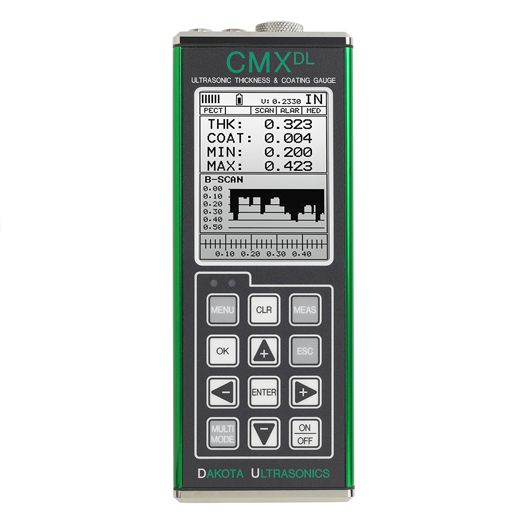

B Scan Display option for viewing material cross section.
Multimode feature for measuring material thickness through/eliminate paint thickness of material.
Measure thickness of material with or without paint or just measure coating thickness.
Adjust to material types by menu driven user selection of prefed material options.
Automatic probe recognition & temp compensation.
Auto Probe zero.
No need for manual probe zero.
High speed scan of 50 readings per second.
Audio/Visual Hi/lo Alarm setup option.
