KI6680 Mini Fiber Inspection

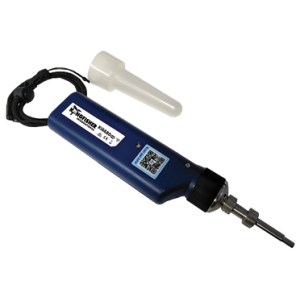

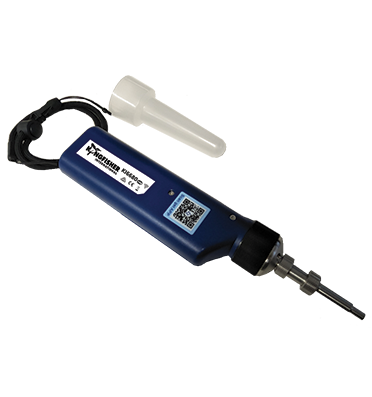

KI6680 Mini Fiber Inspection Probe

The Kingfisher (Now a Tempo Company) KI6680 Mini Fiber Inspection Probe is a handy tool to check and analyze fiber optic connector end faces for dirt, condition, and quality as per IEC61300-3-35 requirements.

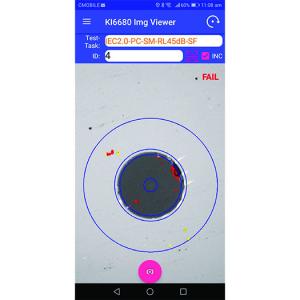

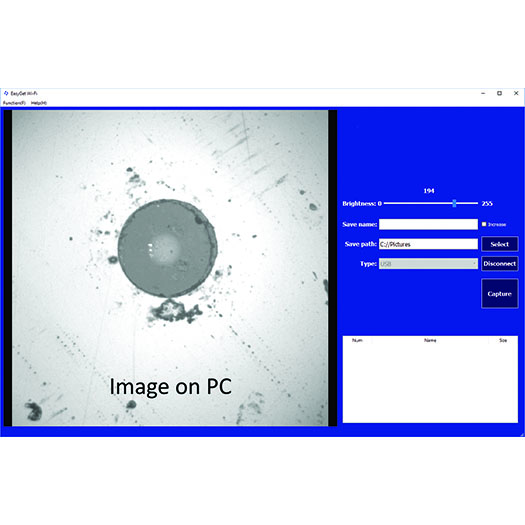

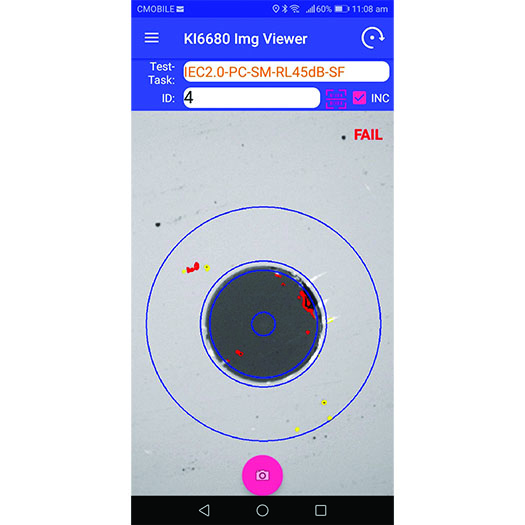

The imaging software for Android and iOS smart devices, features IEC61300-3-35 compliant pass/fail analysis with the resultant image/data/report saved automatically with just a push of a button. Whereas with the imaging apps for Window, high-quality images can be viewed and stored via a Wi-Fi or a USB connection.

The physical button on the probe allows user to capture image and/or start pass/fail analysis conveniently without having the need to release one hand to reach the relevant touch pad on PC or smart device.

The probe features an illumination LED that can be switched on to assist work under dark or low light conditions.

Request Quote

Features

Simple, compact and reliable fiber inspector
Android & iOS 61300-3-35 compliant pass/fail analysis software
Captive dust/protective cap
Long operation from built-in rechargeable battery with charging via USB-C cable

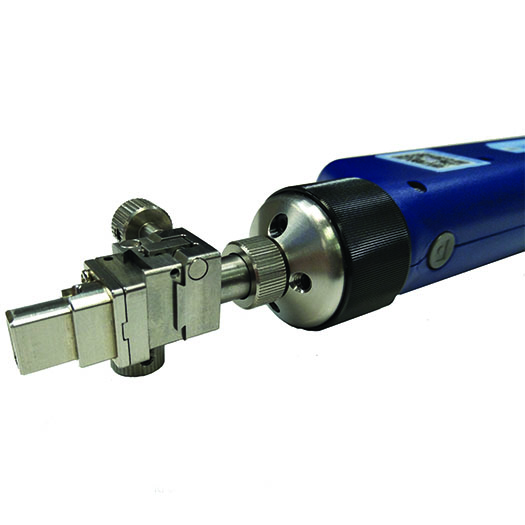

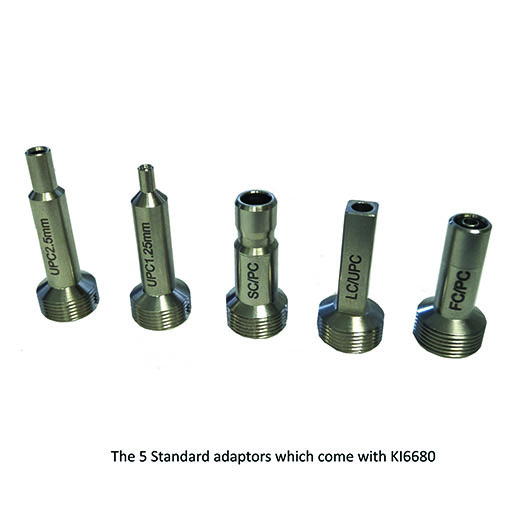

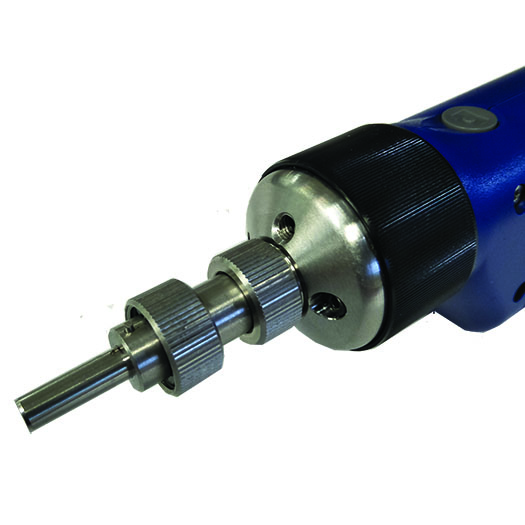

Quick-change adaptors for male/female connectors LC, LC/APC, SC, SC/APC, FC, FC/APC, ST, universal 1.25 & 2.5 mm. Also MPO/MTP SM & MM
Good image quality with easy focus
Image can be centered and expanded
On-probe image capture button
LED torch for work in low light conditions

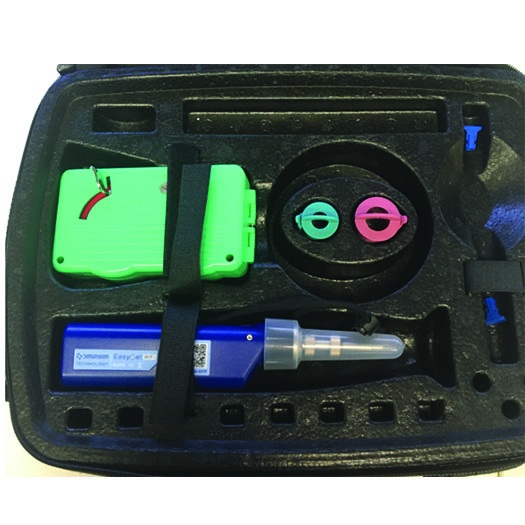

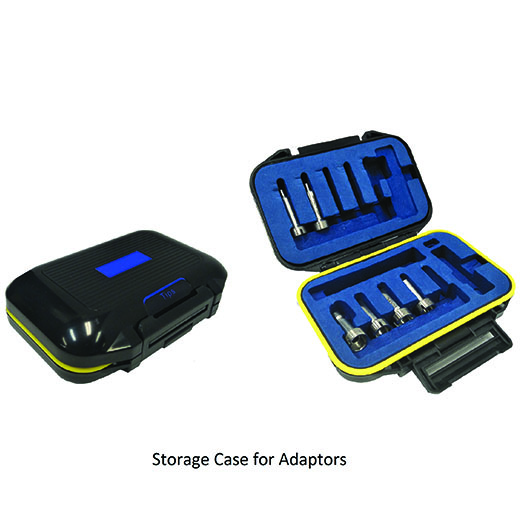

Handy storage case for inspection adaptors
Alternative scope option for our FiberTester Kits

Specification

Magnification	10x
Resolving power	< 1 µm
Field of View	512 x 384 µm
Focus method	Manual
Communication interface	WiFi802.11 / USB2.0
Imaging apps compatibility	Window, Android
Imaging apps feature	IEC61300-3-35 compliant auto pass/fail analysis (Android & iOS devices only)
Imaging apps compatibility	Smart devices (via WiFi only): Android 5.0 and above / iOS 13.0 and above / Window (via USB or WiFi): Win7 and above
Power	Built-in Lithium battery rechargeable via USB-C, 2.5hrs charging time (from 0 charge)
Relative humidity	95%
Size	211 mm x 44 mm x 33 mm
Unit weight	188 g (including battery)
Operating / Storage temperature	-10 to +50 °C / -20 to + 50 °C
