Smart RFID Electronic Cable Marker India

Smart RFID Electronic Cable Marker & Marker Locator

The RFID electronic marking system uses digital technology to provide accurate location of buried infrastructure and site-specific data also known as underground utility marker, buried cable marker, pipe marker

Smart Radio Frequency Identification System for permanent marking & tracing of underground utility assets & generation of maps of cable/pipe utilities being installed.

A Smart RFID Marker System contains 3 parts for creating a permanent record of WHERE utilities are buried.

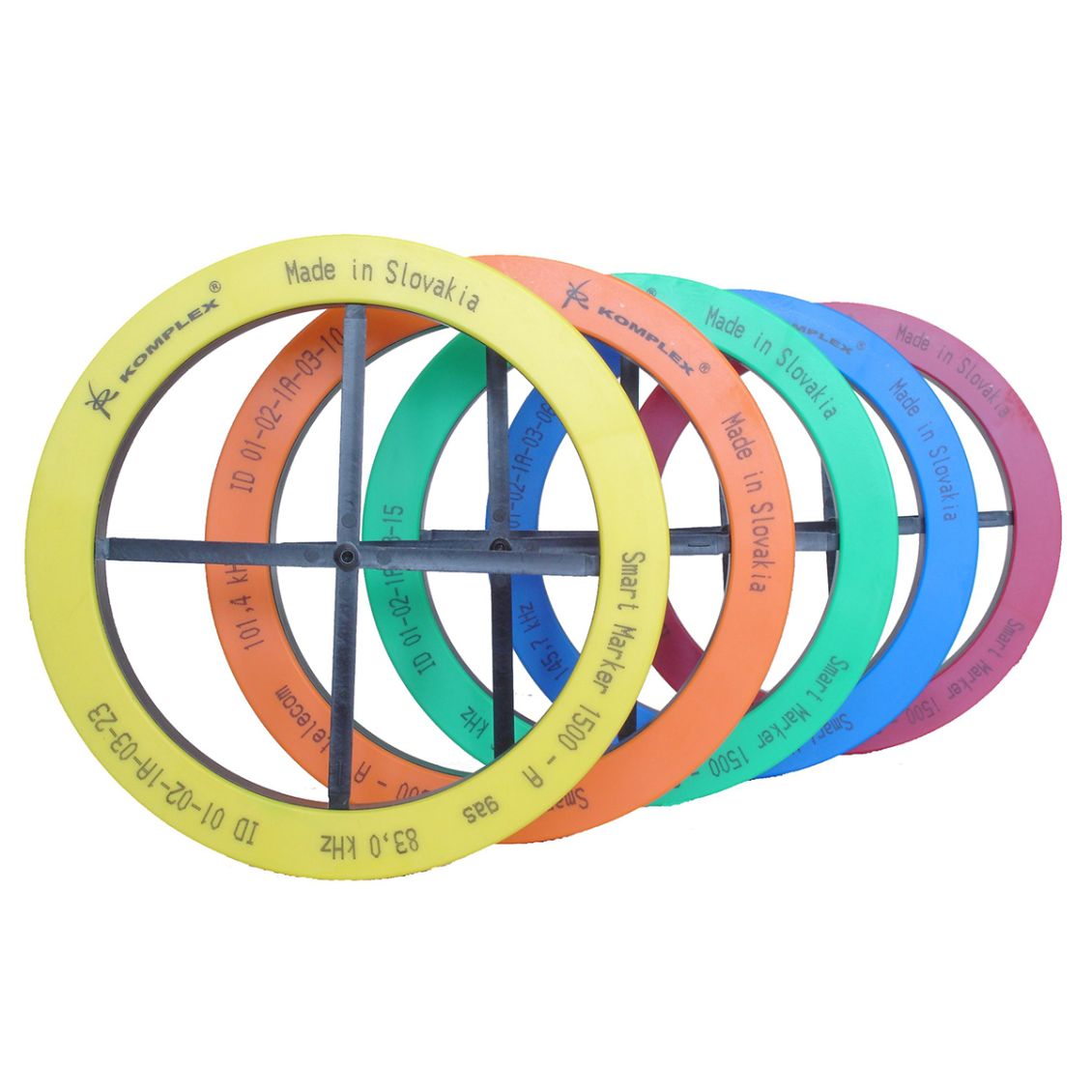

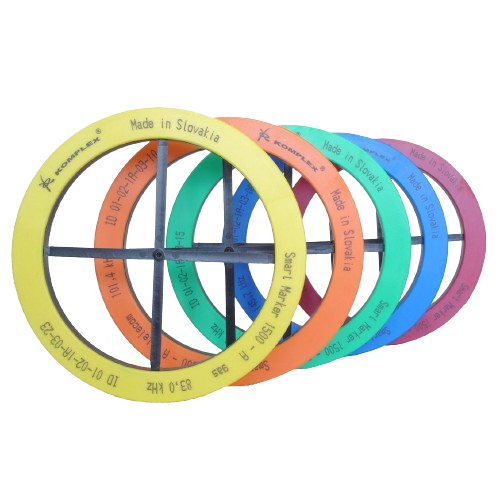

Smart RFID Markers SM1500

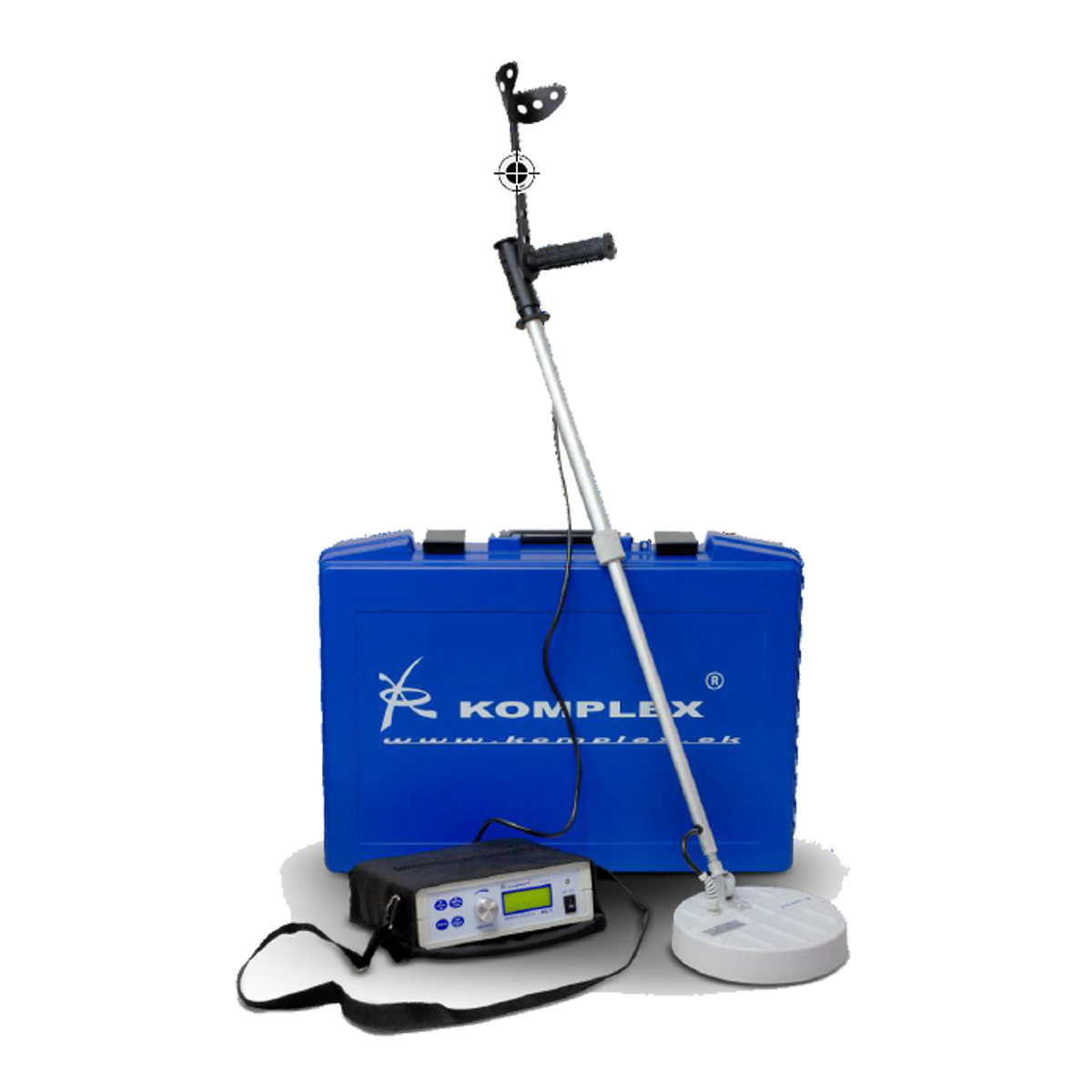

Smart Marker locator SML (with Built in GPS)
Marker Database Software

The Smart Marker SM1500 is an electronic passive marker with built in RFID chip with a unique 10 digit hexadecimal ID number ensuring that every RFID marker buried with a cable or pipe is unique. It allows permanent marking of buried pipes or cables along its route or specific selected points under the ground.

Smart Marker SM1500 are buried “over” the buried utility or key facilities during construction or maintenance. The pre-programmed unique serial number of each Smart Marker SM1500 provides precise and clear marking of the route or each important point of the buried facility (joints, connections, change of direction etc.).

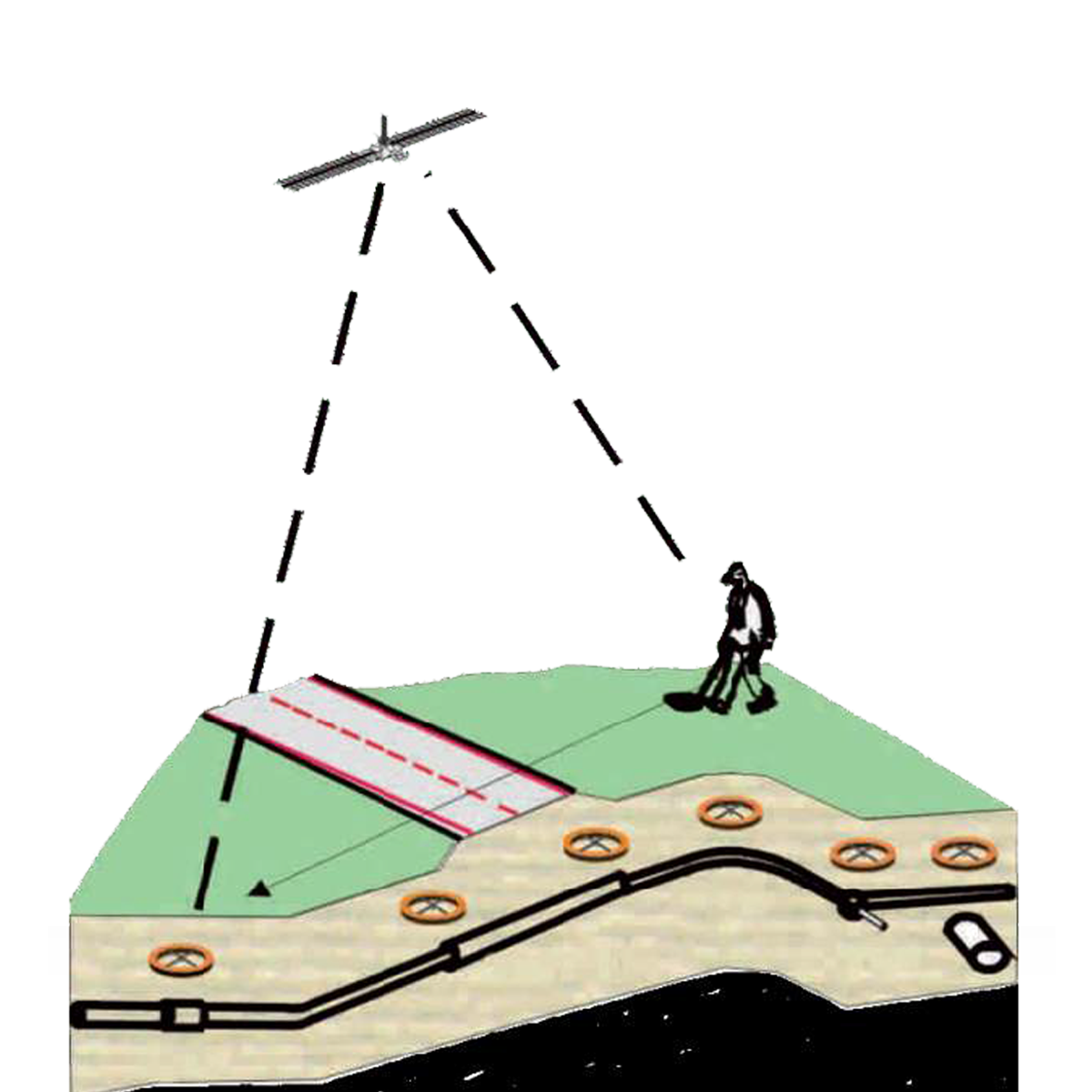

SML is a portable RFID smart marker locator with built in GPS designed for:
a. Logging RFID 10 digit code, attributes & GPS locator of markers being installed.
b. Fast localization & detection of buried markers.

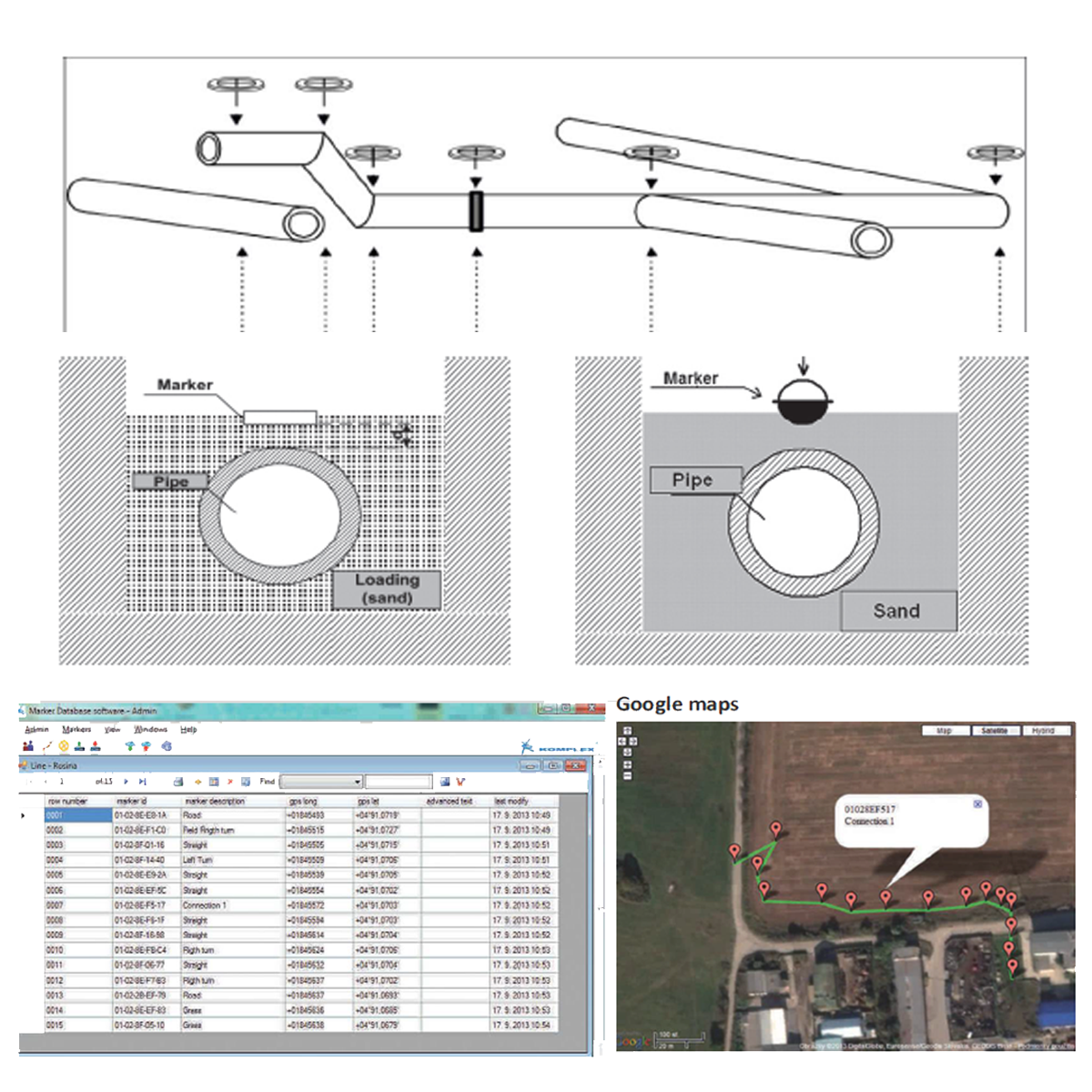

Marker Database software is a unique software for database management of installed markers. It provides convenience to manage data about your buried facilities including display of installed maker locations on Google maps & easy access to marker attribute information (& therefore information of your utilities).

Smart Marker SM 1500 provides the most accurate method to precisely mark and locate your buried facilities such as:

Optical fiber telecom cables
Power cables
Gas Pipelines
CATV
Water pipelines
Sewage pipelines
Non drinkable water pipelines
Manholes
Buried Valves
Hazardous Area

Request Quote

Features

When installed with your pipes or cables, the system will provide the following benefits:

Each marker is “Unique” with its own RF-ID 10 digit hexadecimal code.
“Lifetime marking” of Buried utilities with information about the utility.
Lifetime storage of data inside the Smart Marker - 50 years.
Creation of user text information for each Smart Marker Inbuilt GPS module inside each Smart Marker Locator allows GPS Coordinates of each RFID marker to be logged.
Acoustic GPS navigation (of buried markers) allows navigation back to “Specific” RFID markers.
Mapping of your Smart Markers in Google maps.
Detailed archiving & managing of data about your underground networks in unique Marker Database Software.
Archiving of the data in Cloud database. Share - later - if you require with partners.

Specification

Technical Specification Of Smart RFID Marker SM 1500
Operating frequency (kHz)	83.0, 101.1, 121.6, 134.0, 145.7, 169.8
Material of cover	High Density PS
Dimensions	Diameter x height 225 x 28 mm
Weight	max. 300 g
Identification number ID	10 digits in hexadecimal code
Marker read range	1,5 m (4,9 ft)
Operating temperature	-20 to +60 °C
Lifetime	50 years

TYPES OF OPERATING FREQUENCY
Operating frequency	Type of device	Color of marker	Type of Marker Locator
83,0 kHz	Gas pipelines	Yellow	SML G
101,4 kHz	Optical cables	Orange	SML T
121,6 kHz	Sewage pipelines	Green	SML S
145,7 kHz	Water pipelines	Blue	SML W
134,0 kHz, 169,8 kHz	Energetics cables	Red	SML E

Technical Specification Of Smart RFID Marker Locator - Model SML
Operating frequency	SML G1 – 83,0 kHz SML T1 – 101,4 kHz SML S1 – 121,6 kHz SML E1 – 134,0 kHz, 169, 8 kHz SML W1 – 145,7 kHz
GPS navigation	YES, inbuilt GPS module
Depth measurement	Yes
Marker depth measurement accuracy	+/- 10 % up to marker specification
Memory capacity (Rewritable memory)	8000 marker records
Display type	Backlight LCD screen, 4 x 20 digits
Communication with PC	USB cable
Dimensions (height x width x depth)	225 x 240 x 210 mm
Weight of device with antenna	Max. 4 kg
Battery life	45 working hours
Primary battery cells, voltage 1,5 V	10 pcs.
Operating temperature	-20 ºC to +60 ºC
Storage temperature	-20 ºC to +60 ºC

Experience

Smart RFID Marker application under Central Vista Project for permanent marking
The RFID electronic marking system uses digital technology to provide accurate location of buried infrastructure and site-specific data also known as underground utility marker, buried cable marker, pipe marker. Smart Radio Frequency Identification System for permanent marking & tracing of underground utility assets & generation of maps of cable/pipe utilities being installed.Central Vista is an ongoing premium redevelopment project, scheduled between 2020 and 2024 for the Central Vista region located near Raisina Hill, New Delhi. The Central Vista Redevelopment Project aims to revamp some premium locations such as a 3 km long Rajpath between Rashtrapati Bhawan and India Gate, convert North and South Blocks to publicly accessible museums by creating a new common Central Secretariat to house all ministries, a new Parliament building near the present one with increased seating capacity for future expansion, new residence and office for the Vice-President and the Prime Minister near the North Block and South Block and convert some of the older structures into museums. Under this development project, a bunch of underground utilities is being laid down across the Central Vista Region, it stands to reason that identifying the unique characteristics of a single asset may be a challenge. In order to detect the accurate route along ...

Read More

Stop Before You Dig
The civic layout of India based on the growing need for housing and roads has changed beyond recognition. As a result As-built maps of underground utility assets, if existing , have been rendered redundant and cannot be used for reference for the presence of buried utility assets. JCB Excavators or manual labour at work in the country are digging in the blind at most times, at the peril of significant safety concerns of digging directly into live high voltage cables. Such cuts of buried cables can lead to , in order of priority, fatality to the person excavating and serious losses to the company who has taken the work contract. Not to mention the relative inconvenience to the citizens. The underground space is a jungle of energized power cables, dead power cables, water pipes, jelly filled telephone cables and optical fiber cables. The detection of these assets is an absolute must before undertaking any excavation activity. Detection of buried utility services requires utilization of specialised proven pipe and cable locator equipments also referred by some as cable route tracers and others as cable avoidance tools. While the use of these equipment is mandatory in most developed countries, the equipment find acceptance by ...

Read More

Faq

Do you have a question which we can answer for you? Click here if Yes

What is the difference between Normal Electronic marker and RFID marker

An electronic marker is based on resonance principle with a coil tuned to a frequency , defined based on international standard such as 101.4kHz (For telecom), 83.0 kHz (for Gas) etc. When an electronic marker locator is used at a corresponding frequency, the marker buried with a cable or pipe resonates and sends a signal back to the receiver confirming its presence making the utility locatable.
In case of an RFID Marker, a chip with a 10 digit unique hexadecimal code is embededed in the marker , making each marker one in a billion, uniquely identifiable. In addition, when used with a correponding RFID Marker locator, at the time of installation of marker which is buried with a cable or pipe, the marker locator also acquires the GPS coordinates of the marker and overlays on the RFID unique code to create a GIS of the markers installed, complete with attributes providing capability to the utility for network data to be available through database on PC or use with a mobile app .
How does is work

This RFID marker works on the principle of resonance.
What is the typical life of a marker

50 years.
Detection range

Detection range upto 1.8 meters, Read range upto 1.5 meter
