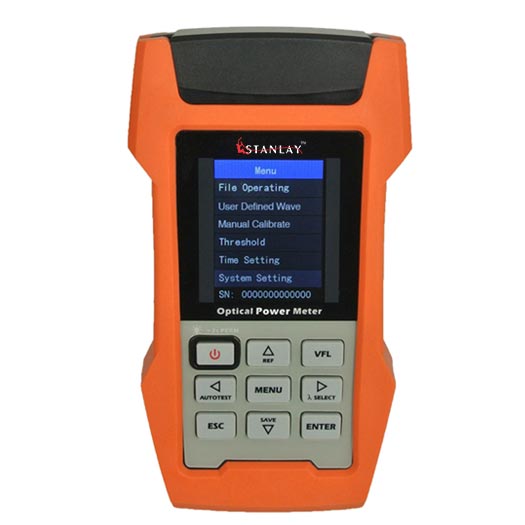

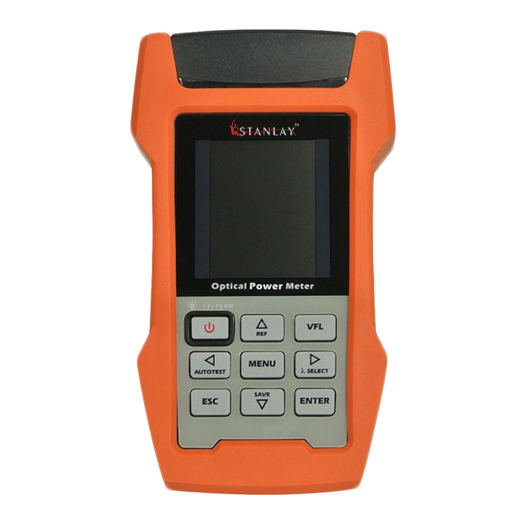

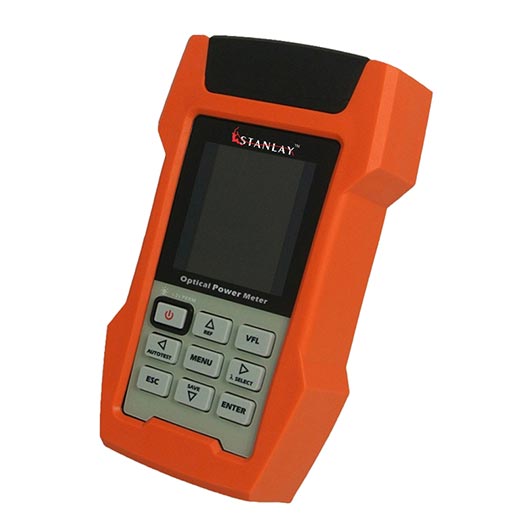

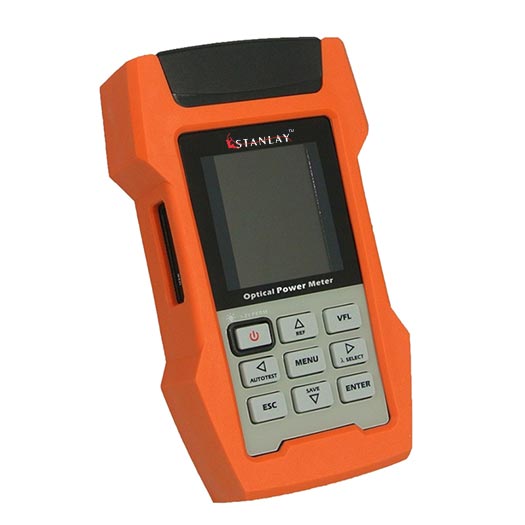

AOP110 Optical Power Meter

AOP110 Optical Power Meter is an advanced multi-wavelength display Optical Power Meter with wave response range of 700nm~1700nm, providing normal and Auto test modes.

AOP110 Optical Power Meter is available in two model variants with Range T: +8~-70dBm for Telecom Range C: +26~-50dBm for cable tv users.

Multi–wavelength display in Auto Test mode: Auto test(Auto wave ID mode, when used with AOS210 Optical Laser Source) ensures fast multi wavelength optical testing by a single person, on one screen, for real time measurement of optical transmission power of multiple wavelengths received, displayed on a bright color LCD display.

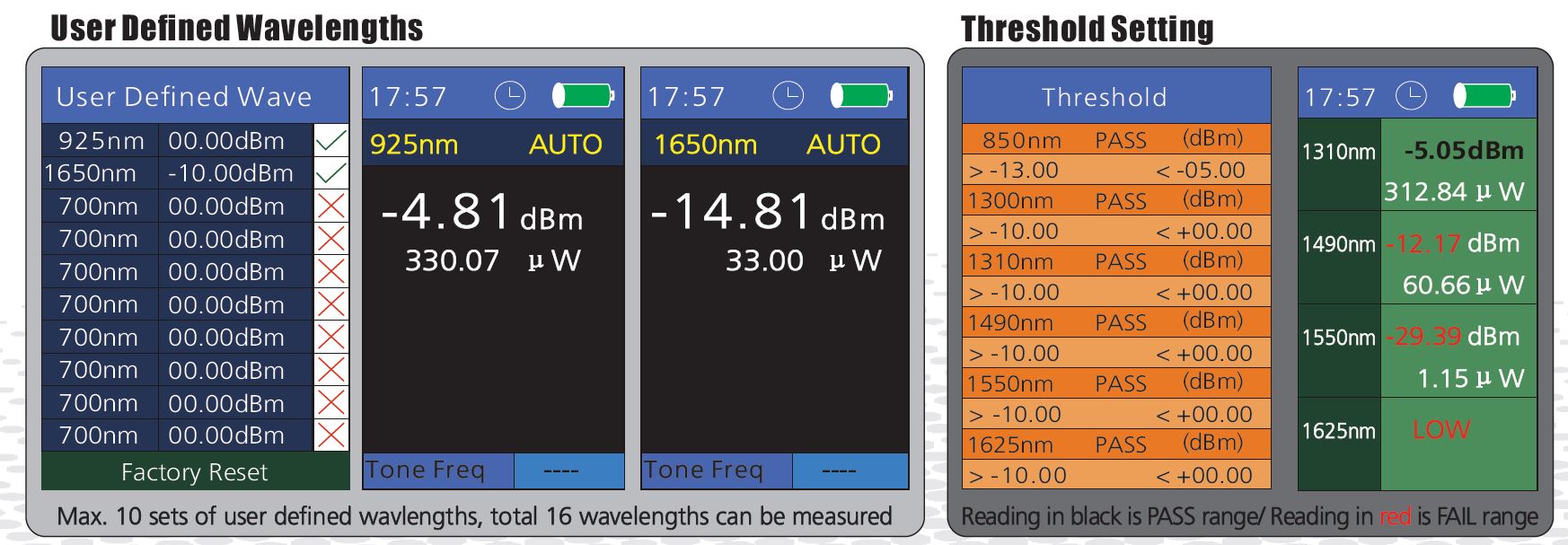

AOP110 Optical Power Meter offers threshold setting feature providing value for fast measurement of the optical power received by displaying PASS/ FAIL prompts.

AOP110 Optical Power Meter offers 1000 traces Data storage with a USB connection and 7 x 24 real-time test possible on PC.

AOP110 Optical Power Meter is an advanced Optical Power Meter compatible with FC (& SC) adaptor 2.5mm UPP connectors.

AOP110 Optical Power Meter is customisable with 10mW Visual fault locator as an optional feature.



Specifications
Product Specification

Module Options | AOP110+

T

C

Display Range

1310/1490/1550/1625: +10 ~ -70dBm
850/1300: +10 ~ -60dBm

1310/1490/1550/1625: +26 ~ -50dBm
850/1300: +26 ~ -40dBm


Accuracy

 ±0.2 dB

Wavelength(nm)

850 / 1300/ 1310/ 1490/ 1550/ 1625

Resolution

0.01dB / 0.001μw (1nw)

Linearity

 2%

Sensor Type

InGaAs

Connector Adaptor *

FC & 2.5mm UPP (Optional: SC, ST) *

REF

Yes

Display

Color LCD display, Backlit

Automatic Power Off

Yes (Settable 1 to 10 minutes)

Data Storage

1000 traces

Threshold Setting

10 sets (Pass/Fail)

Calibration

Auto Test

Multi-Wavelengths Display in
Auto Wave ID Mode

Yes

Auto Wave ID Detect

Yes (when used with AOS210 laser source)

Communication Interface

USB

Real Time Monitoring

10 minutes to 360 days, interval: 0.5s, 2s, 15s, 60s, 180s, 600s

Optical Fiber Type

SM 9/125μm

Visual Fault Locator (Optional)*

Output Power: 10mW (8-10km)

Size (mm)

170 x 97 x 38

Weight (g)

About 380

Storage / Operating Temperature/Relative Humidity

-20°C to +60°C / -10°C to +50°C / <90%RH

Power Supply

AA*3 Batteries or AC/DC power supply by USB cable (*Additional cost)

Standard Accessories

Carrying bag, USB cable, calibration certificate, manual, FC/UPC or SC/UPC connector (connector to be specified at time of ordering)

 Optional Accessories

Connector Adaptor: SC, ST and AC/ DC Adaptor

* To be specified at time of ordering
Features
Features
  • Normal OPM mode and AUTO TEST OPM mode
  • AUTO WAVE ID mode (when used with AOS210 Optical Laser Source)ensures fast multi wavelength optical testing by a single person, on one screen
  • Multi-wavelengths display in AUTO TEST mode
  • Threshold setting (Pass/Fail)
  • Auto Test calibration
  • USB connection and 7 x 24 real-time test possible on PC
  • 1000 traces Data storage
  • 10mW VFL (optional, to be specified at time of ordering)
  • 850/1300/1310/1490/1550/1625nm operating wavelengths
  • Three-year recommended calibration interval
