APL2+ Long Haul OTDR

APL 2 Plus OTDR is a multi touch screen platform OTDR, feature rich with built in optical light source, optical power meter & visual fault locator, for testing of terrestrial, long distance or datacom optical fiber networks.

APL 2 Plus is available in Single mode, Multimode and PON model variant with the option to customize the OTDR for availability of up to 5 wavelengths (by configuring up to 2 distinct OTDR modules in the same OTDR unit). APL 2 Plus offers 40 dB, 43 dB & 45 dB dynamic range options for long distance terrestrial fiber network testing.

Product Specification
Module Options | APL2 + AOR502A AOR502B AOR502C AOR502P1 AOR502P3 AOR502P4 AOR502M1 AOR502A-M1 AOR502B-M1 AOR502C-M1
Type of Fiber Single mode OTDR PON OTDR (live fiber) Multimode OTDR Single + Multi Mode OTDR
Dynamic Range (dB) 40/38 43/41 45/43 40/38/36 43/41/40 45/43/43 26/26 40/38/26/26 43/41/26/26 45/43/26/26
Wavelength (nm) 1310/1550 1310/1550/1625 with filter for PON 1310/1550/850/1300 1310/1550/850/1300
Dual/ Triple /Quad Wavelength Options Dual Triple Dual Quad
Display 7 inch color LCD, Multi-touch screen
Event Dead Zone (EDZ) 1.0 m 0.5 m 0.5 m 1.0 m 0.5 m 0.5 m 1.5 m SM: 1.0 m SM: 0.5 m SM: 0.5 m
MM: 1.5 m MM: 1.5 m MM: 1.5 m
Attenuation Dead Zone (ADZ) 6.0 m 3.0 m 3.0 m 6.0 m 3.0 m 3.0 m 7.0 m SM: 6.0 m SM: 3.0 m SM: 3.0 m
MM: 7.0 m MM: 7.0 m MM: 7.0 m
Distance Range 100m, 500m, 1km, 2.5km, 5km, 10km, 20km, 40km, 60km, 80km, 100km, 150km, 200km, 300km 0.1 TO 40 kms Single Mode : 100m, 500m, 1km, 2.5km, 5km, 10km, 20km, 40km, 60km, 80km, 100km, 150km, 200km, 300km ; Multi Mode : 0.1 to 40kms
Pulse Width 5ns - 20μs 3ns - 20μs 5ns - 20μs 3ns - 20μs 5ns~1s/5ns~5s SM : 5ns - 20μs SM : 3ns - 20μs
MM:5ns~1s/5ns~5s MM: 5ns~1s/5ns~5s
Distance Accuracy ±(0.79m+0.005% * Testing Distance + Resolution)
Loss Resolution 0.001
Loss Threshold (dB) 0.01
Min. Distance Resolution 0.1m
Sampling Points 256000
Measurement Time Yes
Refractive Index Refractive index settable from 1.00000 to 2.00000 (Adjustable in steps of 0.00001)
Averaging Time Update ≤180s
Event Capture M Type event analysis
Software output .sor, pdf
Visual Fault Locator(VFL) 10mW
Optical light source wave length (nm) Operating wavelengths will be same as OTDR module chosen, ex: standard OTDR will provide OLS wavelengths of 1310 &1550nm
OLS, Power >= -6dBm
Optical Power Meter (OPM) Measurement Range: +26~-50dBm (Default)
OPM Wavelength (nm) 850/1300/1310//1490/1550/1625
OPM Display Resolution 0.01dB
Other standard tests Built in Temperature, Humidity, Gradienter, Ping Test
Data Storage 6.3 GB Internal Flash Memory  , >50000 point

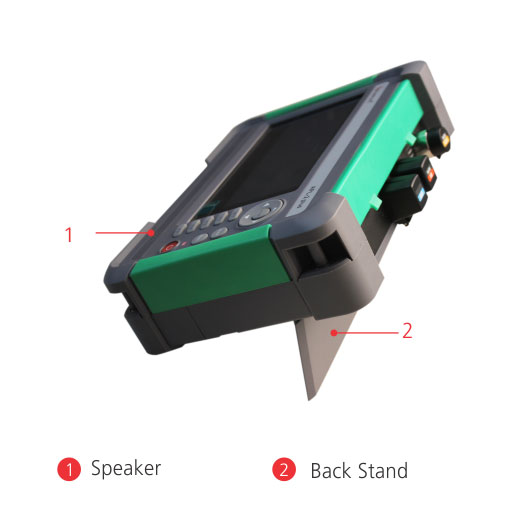

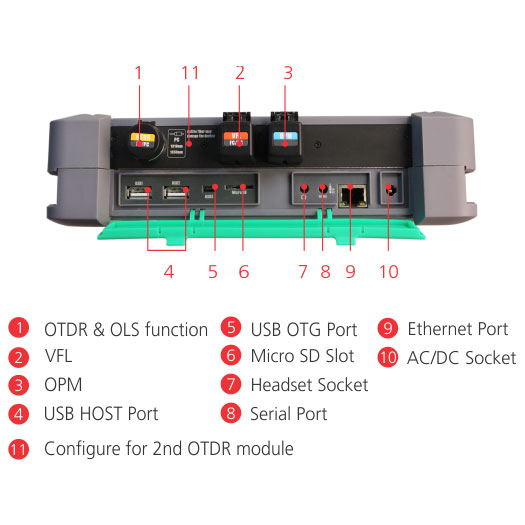

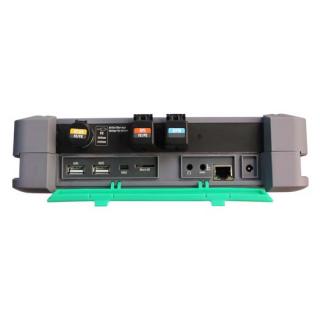

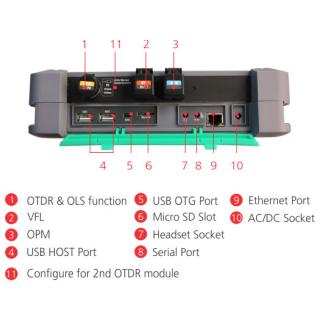

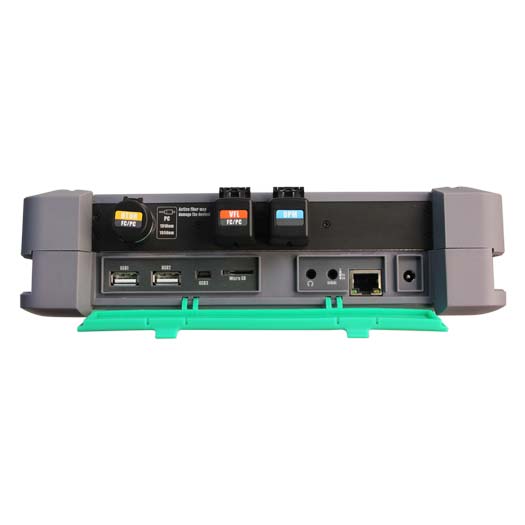

Output Ports/ Interface 2 x USB, 1 x Audiophone jack, RJ 45 10/100M, 1 x Serial Port, 1 x Micro USB
Size (H*W*D) (mm) 246.5mm*173.5mm*70mm
Weight (kg) Approx. 1.55 kg
Operating Temp/ RH% -20 -- +60 , < 90%
Power Supply 7.4V/4.6AH Rechargeable lithium-ion batteries
Certification CE
Electrical safety standards EN 55032:2015
EN 55024:2010+A1:2015
EN 61000-4-2:2009, EN61000-4-3:2006+A2:2010
Laser Class Safety Class 1M
Standard Accessories Carrying Bag, AC/DC Adapter, AC Cable, Instruction CD, Calibration Certificate
Optional Accessories Default: SC ; Optional Connector: ST/FC/LC ; Optional type  : APC
Optional Add on 1 Built in GPS with real time display on device and data storage on file
Optional Add on 2 splitter setting in iOLA : two splitters, 1x2 to 1x64

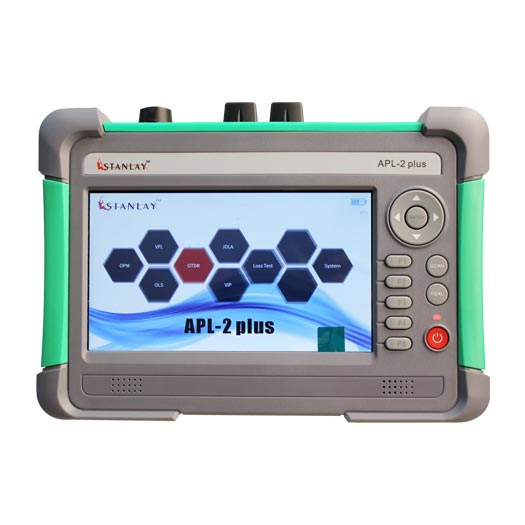

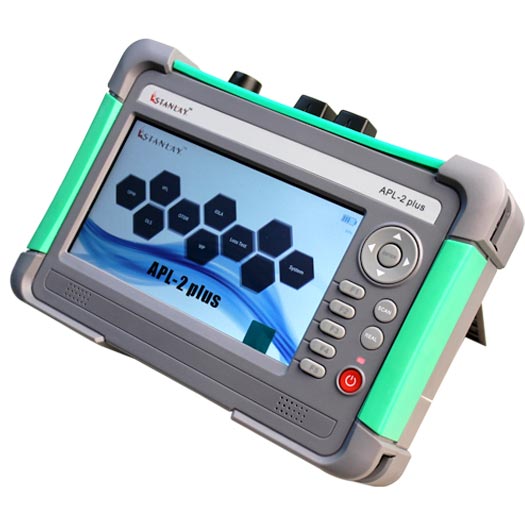

  • Multi touch screen LCD - 7inch
  • Built-in Optical light source and real-time monitoring Optical power meter, Built-in Visual fault locator
  • Built-in temperature test, humidity test, gradienter, ping test
  • Map link with pass/fail setting
  • OTDR self- test function
  • Multi-wavelength testing and display
  • Injection/receiving fiber settings
  • Optional : GPS
Frequently Asked Questions (5 answered questions)
40, 43, 45 dB for single mode and 26dB for multi mode. Model has to be selected based on dynamic requirement.

Person name: Asian

(+/-) 0.79 meter

Person name: Asian

For single mode 0.5 meter and 3 meter respectively and for multi mode 1.5 meter and 7 meter.

Person name: Asian

APL2PLus OTDR provides built in function of optical laser source, optical power meter and visual fault locator.

Person name: Asian

APL2Plus can be configured based on requirement for single mode, multi mode and PON.

Person name: Asian
