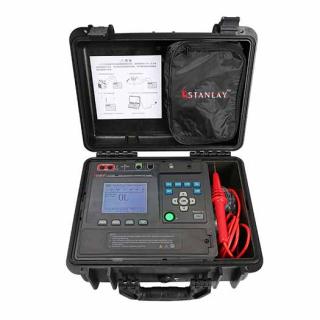

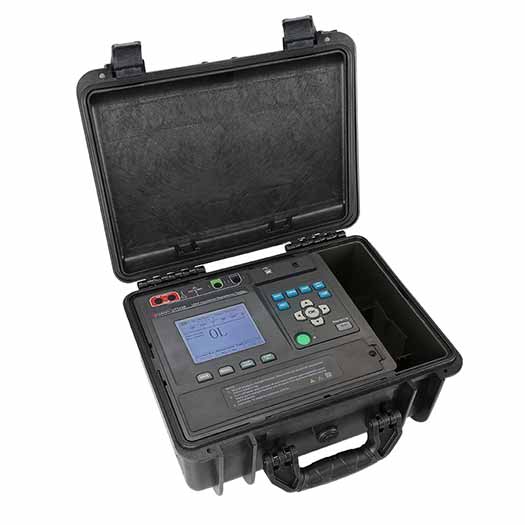

516 B 12 KV HV Insulation Testers

12 KV HV Insulation Testers

516 B is a 12 kV High Voltage Insulation resistance tester with 6 ranges; 500V, 1000V, 2500V, 5000V, 10000V & 12000V.Fine adjustment in 10% step of voltage is possible at each range except 12000 volts.High performance instrument for power supply circuits power equipment

The HV Insulation Tester measures insulation of high-voltage equipments such as transformers, cables, HV switchgears and motors. The equipment can be operated directly from AC power supply or batteries. The insulation Tester has data storage of 999 sets which is easily transferrable to PC via USB.

The Insulation Tester allows measurement of Polarization Index (PI) & Dielectric Absorption Ratio (DAR).

A well laid out 10 button key pad allows easy navigation & usage. The HV Insulation Resistance Tester used to measure insulation of high-voltage equipments such as transformers, cables, HV switchgears & motors. Operates directly from 220V AC mains or using batteries.

Specifications
Product Specification

Auto Range

516B

Measurements



Range

Accuracy















Insulation Resistance



500V

0.50MΩ~4.99G

±(5%+5)

5.00G-49.9GΩ

±(10%+10)

50.0GΩ-500GΩ

for reference only



1000V

1.00MΩ-9.99GΩ

±(5%+5)

10.0G-99.9GΩ

±(15%+10)

100GΩ-1000GΩ

for reference only



2500V

2.50MΩ-24.9GΩ

±(5%+5)

25.0G-249GΩ

±(15%+10)

250GΩ-2.5TΩ

for reference only



5000V

5.00MΩ-49.9GΩ

±(5%+5)

50G-499GΩ

±(15%+20)

50G-499GΩ

for reference only



10000V

10.0MΩ-99.9GΩ

±(10%+10)

100G-999GΩ

±(20%+20)

1000GΩ-10TΩ

for reference only



12000V

12.0MΩ-99.9GΩ

±(10%+10)

100G-999GΩ

±(20%+20)

1000GΩ-10TΩ

for reference only





Output Voltage

500V

0 ~ +10%

1000V

0 ~ +10%

2500V

0 ~ +10%

5000V

0 ~ +10%

10000V

(-5) ~ +10%

12000V

(-5) ~ +10%





Load Current

500V (R=500kΩ)1mA

0 ~20%

1000V (R=1mΩ)1mA

0 ~20%

2500V (R=2.5MΩ)1mA

0 ~20%

5000V (R=5MΩ)1mA

0 ~20%

10000V (R=10MΩ) 0.15 ~ 1.2mA

0 ~20%

12000V (R=12MΩ) 0.15 ~ 1.2mA

0 ~20%

DC Voltage

30V ~1000V

±(3%+5)

AC Voltage

30V~750V (50 ~60Hz)

±(3%+5)

Polarization Index (PI)

0.00~999

Dielectric Absorption Ratio (DAR)

0.00~999

Other Features

Low Battery Indication

Data Storage

999 sets of data

USB Interface

for Data download

Comparison Measurement

Analog Bar Graph

Emulated on Digital Display

LCD Backlight

Over- Range Warning

High Voltage Indication

Date & Time on Display

Software

For Data analysis

General Characteristics

Power

AC220V Power adapter or 1.5V Alkaline batteries

Display Size (mm)

71 x 34

Product Net Weight (kg)

6.6

Product Size (mm)

410 x 342 x 204

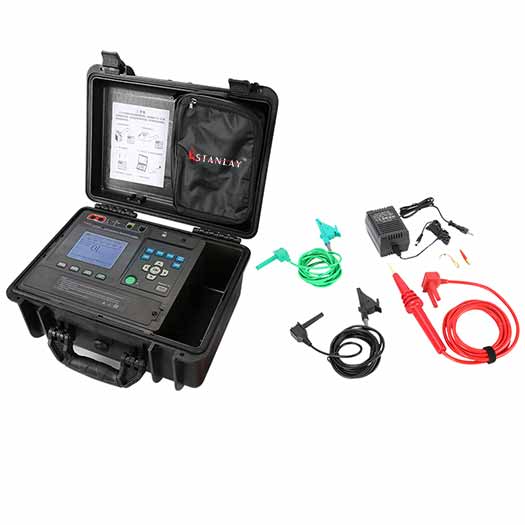

Standard Accessories

User manual, Test leads (red/ black/ green 1 each), USB cable, power adaptor, 1.5V alkaline batteries

Features
Features
  • Data logging, 999 sets
  • Transfer data to PC via USB cable
  • Polarization index (PI)
  • DAR
  • Measurement time selection
  • PC software for data analysis
  • Operate direct from AC power supply or batteries
