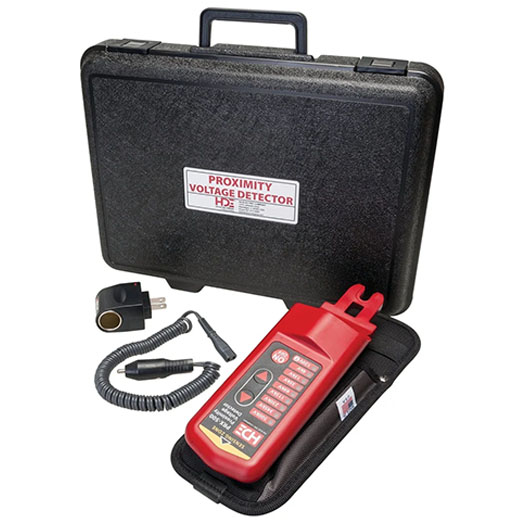

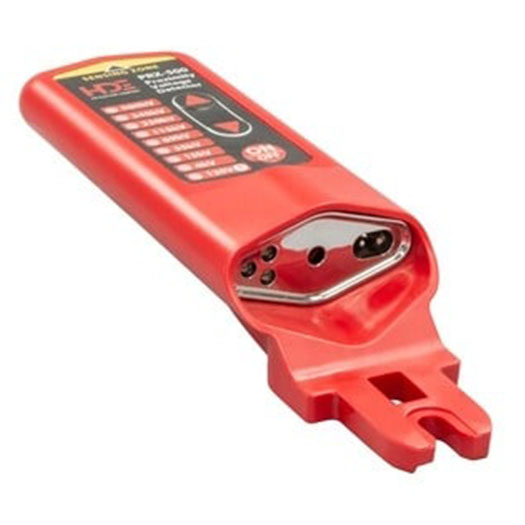

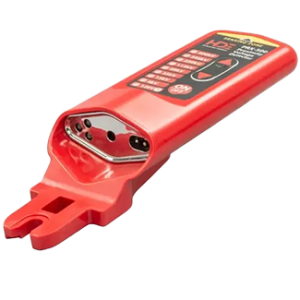

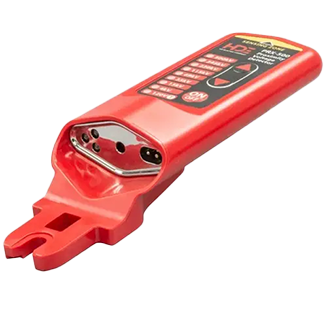

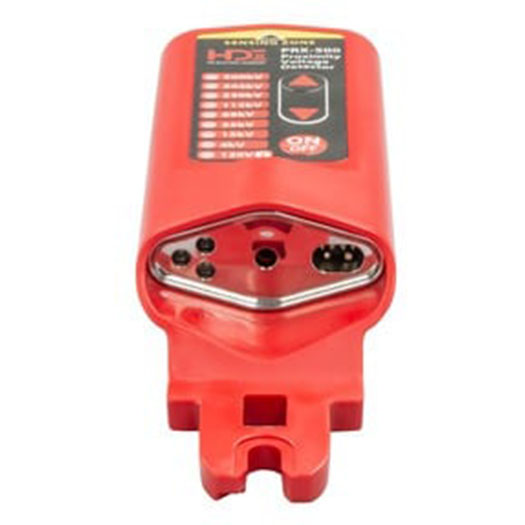

PRX-500 OHE High Voltage Proximity Detectors

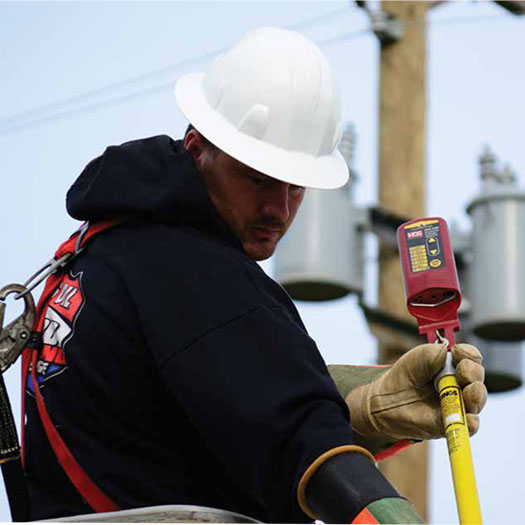

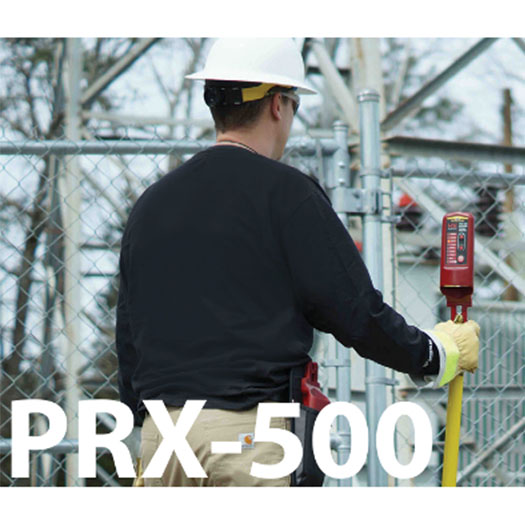

The PRX-500 OHE High Voltage Proximity Detectors are designed to identify voltage remotely from live, unshielded conductors in both overhead and underground power distribution & transmission systems and also detects induction voltage during shutdown or maintenance activity. These detectors are effective from 50V up to a voltage of 500kV, and are a necessary safety device to check that overhead line is not LIVE prior to earthing suitable for 11KV / 33KV / 132KV / 220KV / 440KV supply lines.

PRX-500 OHE High Voltage Proximity Detectors are advanced electrical safety equipment that play a vital role in preventing accidents and ensuring the safety of workers involved in power distribution and transmission systems.

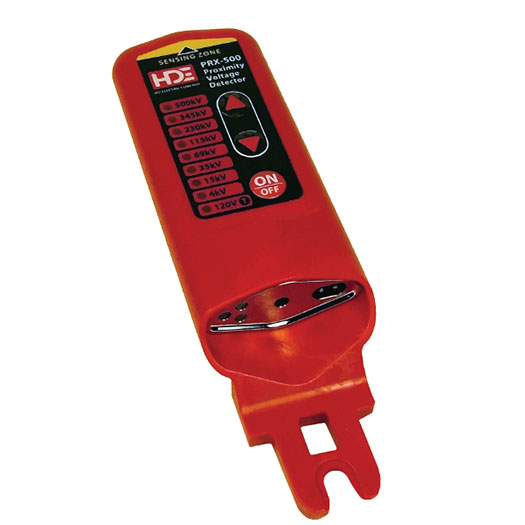

PRX Proximity Voltage Detectors offer up to nine selectable voltage ranges, encompassing secondary voltages to the highest transmission voltages. When voltage is detected, the PRX 500 gives an audio & visual indication powered by a rechargeable battery when within a detection distance of 10 inches.

Request Quote
PRX-500 OHE High Voltage Proximity Detectors
Features
  • Rechargeable battery with quick recharge – if battery is low, a quick 15-minute charge provides over one full day of use.
  • Models available with standard voltage ranges up to 500kV.
  • Have self-check function to ensure device healthiness.
  • Verify the presence of voltage without contacting the conductor.
  • Detects voltages from distance range 10” or greater from source.
  • Detects voltage on most elbow test points.
  • Dual hot stick connections – universal spline and shotgun stick.
  • Clear warning of voltage presence with bright flashing LED lights and loud audible alarm.
  • A full charge takes only 3 hours and gives 1 week of continuous use.
  • Easy to use electronic touch pad with large buttons.
  • Custom voltage ranges available upon request.
Specification

Operating Voltage Ranges

Nine standard voltage ranges from 120VAC to 500kVAC

Voltage Sensing Distance

6 inches at 120V

10 inches at all other ranges

Operating Frequency

25Hz-400Hz

Operating Temperature

-29°C to +60°C

Battery Life

One week of typical daily use after full charge

Dimension

28 cm x 7.6 cm x 5 cm

Weight

310 grams

Indication Type

Audible and visual alert
FAQ
Downloads
Title File Type File Size Downloads View Last Uploaded
Product Datasheet application/pdf 3.26 MB Download View January 18 2024 12:06:12
