SLS 500 Optical Light Source

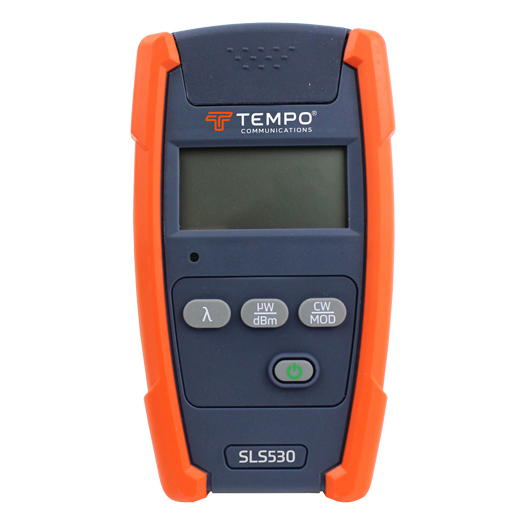

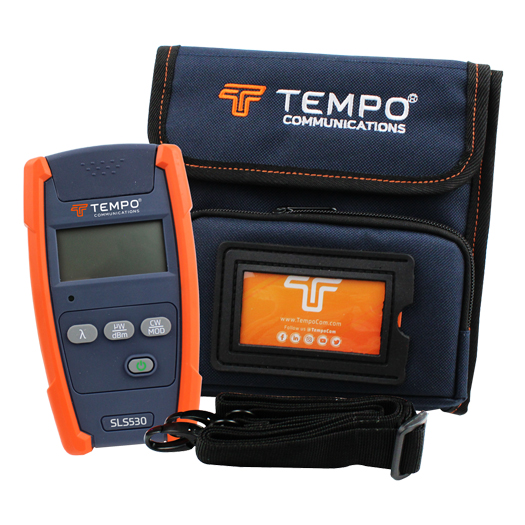

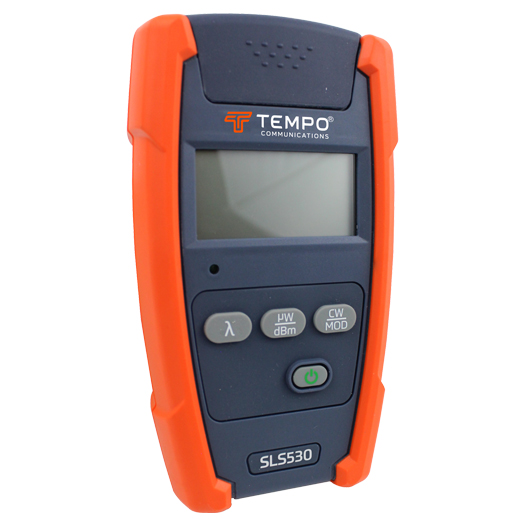

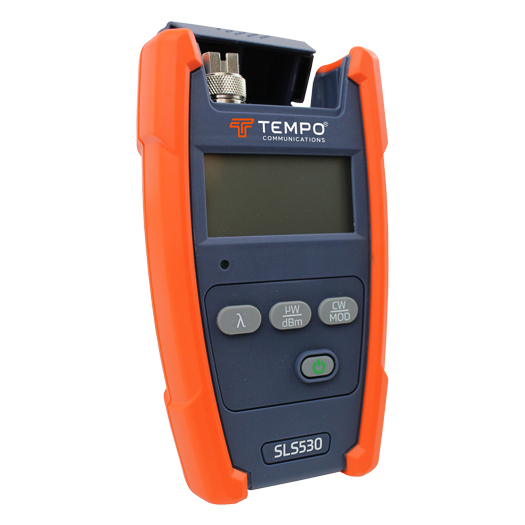

SLS 500 handheld stabilized light source from Tempo Communications, USA is a reliable device that can inject optical signal with dual /triple wavelength options.

Available with FP or LED emitter options, SLS 500 is also capable of out-of-band testing at 1625 nm and 1650 nm wavelengths.

SLS 500 is compatible with SC/PC (Interchangeable LC,ST, FC) adaptors making it suitable for various industry applications.

SLS500 is a ruggedized instrument with IP54 rating & a shock proof boot

Tempo SLS500 series optical light source are available in 5 options:

1. SLS520: 1310/1550 nm single mode optical light source

2. SLS525: 850/1300 nm multimode optical LED source

3. SLS530: 1310/1490/1550 nm triple wavelength optical light source

4. SLS535: 1310/1550/1625 nm triple wavelength single mode optical source with 1625 nm wavelength

5. SLS536: 1310/1550/1650 nm triple wavelength single mode optical source with 1650 nm wavelength

SLS500 series optical laser sources are CE, FCC, 21 CFR 1040 (laser) compliant

Request Quote

Features

Out of band testing at 1625nm and 1650nm
Dual and triple lasers available
270Hz,1kHz and 2kHz tone
PC flat polish interface
CE,FCC, 21 CFR (laser) compliant
IP54 ruggedixed optical laser & LED source
Auto-off/continous on operation
Use with battery or 120m 240 V AC operation (optional)

Specification

MODEL	SLS520	SLS525	SLS530	SLS535	SLS536
Wavelength (±20nm)	1310/1550	850/1300	1310/1490/1550	1310/1550/1625	1310/1550/1650
Range of Use	Singlemode	Multimode (62.5/125)	Singlemode
Emitter Type	FP	LED	FP
Spectrum Width (nm)	≤5	+/-40	≤5
Output Power (dBm)	≥0/-1	-20/-21	≥0/-1
Output Power Stability	±0.05dB/15 min ±0.10dB/8hr	±0.05dB/15 min ±0.10dB/8hr	±0.05dB/15 min ±0.10dB/8hr
MOD Frequency	270, 1kHz, 2kHz
Display	LCD
Battery life	60 Hours
Connector Type	SC/PC (Interchangeable LC,ST, FC)
Power Supply	9V Alkaline or 1000mAh Lithium Battery/ 9V AC adapter
Operating Temp.(ºC)	-10 to 50
Storage Temp.(ºC)	-20 to 70
Relative Humidity	0 to 95% (non-condensing)
Weight	0.71 lbs (300g)
Dimension (H×W×T)	6.1 × 3.5 × 1.3” (155 × 89 × 33mm)
IP Rating	IP54
Vibration	5Hz to 150Hz, Amplitude = 0.15mm
Shock	Peak acceleration 25g at a pulse duration of 6ms
Compliance	CE, FCC, 21 CFR 1040.10 (Laser)
