Proceq Original Schmidt Live

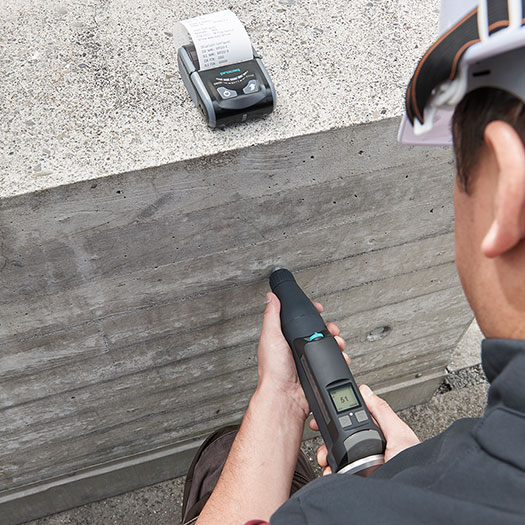

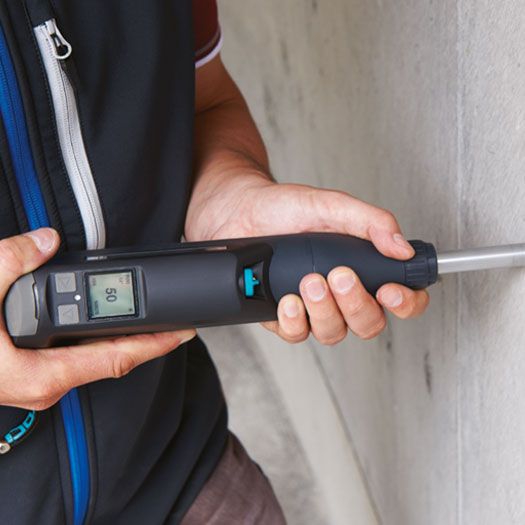

Proceq original schmidt Live is the latest generation Digital-Analog R-value hammer for non-destructive measurement of compressive strength of concrete. Original Schmidt Live provides a measurement range of 10 to 70 N/mm2 - Mean angle calculated, angle correction factor also applied automatically. Operates as a standalone analogue or as a digital hammer providing output results on an LCD Display or when connected to any smart phone with full productivity unleashed by the Schmidt Live app which significantly reduces the time required for testing and reporting.


Original Schmidt Live has multiple applications and is a favorite of the concrete and paper industries and in geology work.

  • Concrete: strength estimations, formwork removal and to complement core testing.
  • Paper: roll profiling in mills and converter plants.
  • Geology: strength testing, ageing, weathering (field and lab).

Product Specification

Impact energy Type N

2.207 Nm (1.63 ft lbf)

Impact energy Type L

0.735 Nm (0.54 ft lbf)

Housing dimensions

61 x 84 x 275 mm / 2.4 x 3.3 x 10.8 in

Weight (N-hammer)

1090 g / 2.4 lb

Weight (L-hammer)

850 g / 1.9 lb


2,000 measurement series

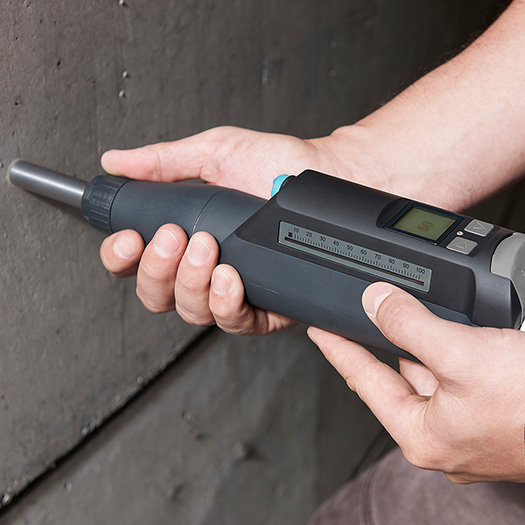

Analog & backlit digital (100 x 100 pixels, graphic)

Charger connection



Standard AAA, alkaline or rechargeable

IP classification




·        Any compatible Apple iOS device (please see App Store for details)

·        Any supported Android device (see Google Play Store for details)


2,000 measurement series

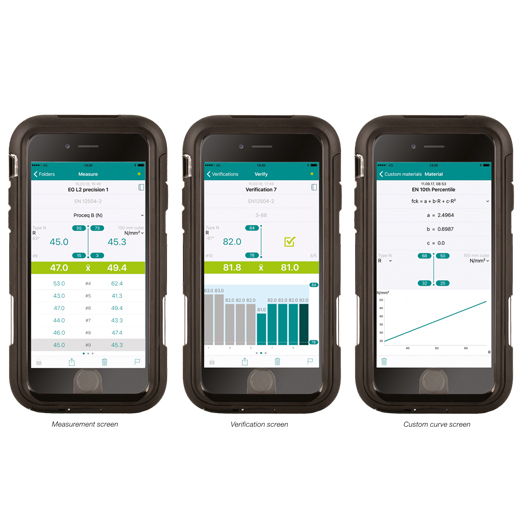

·        Automatically detects and corrects for impact angle

·        Displays the series on-screen as you work

·        Series validity checked automatically

·        Review an entire series

·        Delete impacts

·        Test region reporting

·        Select units, form factor and correlation curves

·        Create your own custom curves

·        Create custom curves databases for your own mixes

·        Make use of existing Original Schmidt custom curves


            Standard AAA, alkaline or rechargeable


·        USA: ASTM C805, ACI 228.1R

·        Europe: EN12504-2, EN13791

·        China: JGJ-T23

·        Japan: JCSE-G504

·        ISO 1920-7

·        JIS A1155

·        Russia: GOST 22690-2015

Frequently Asked Questions (1 answered questions)
There are predefined charts available to correlate rebound number with compressive strength , also we can define customize curves to obtain a relationship between rebound number and compressive strength.
Rebound number is required to calculate the compressive strength to verify the grade of concrete. Digital hammers are fed with predefined algorithms which directly converts the rebound value to compressive strength.
