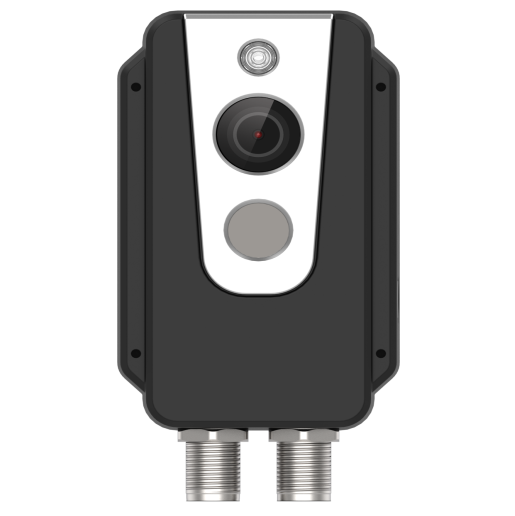

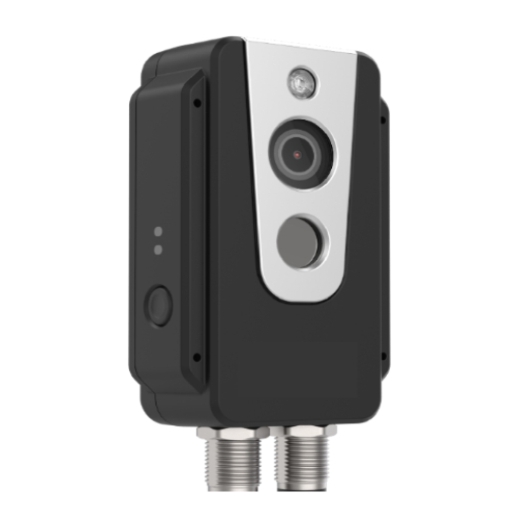

STP1 Compact Thermal Image + Visible Light Camera

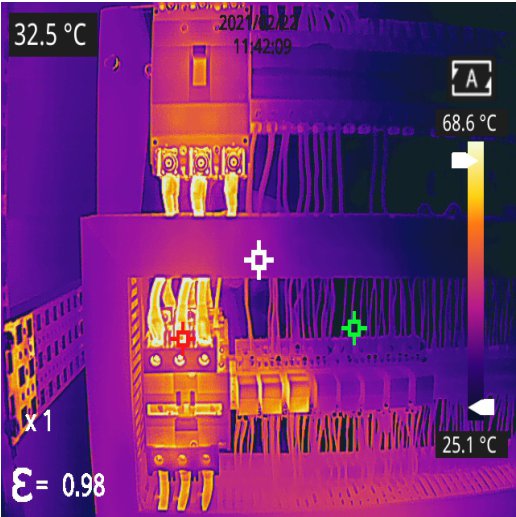

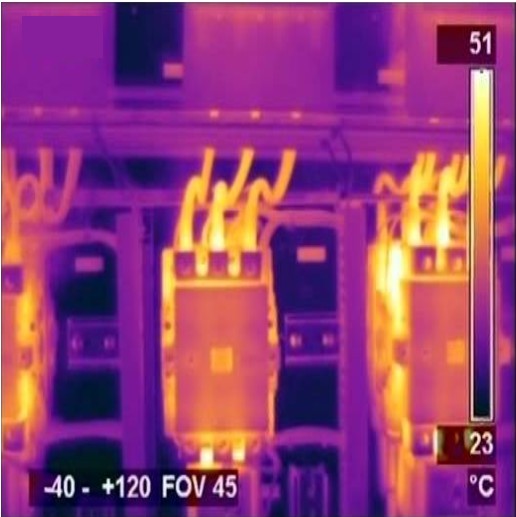

The STP1 Compact Thermal camera will detect the minutest in temperature variations as low as 0.04°C & present a thermal heat map on a display device with temp range of -20°C ~ 550°C which makes it useful in detecting electrical faults at an early stage, therefore serving as an ideal electrical diagnostics and preventive maintenance device.

The STP1 can help you discover overloads & overheating issues to accurately locate possible faults & send alarms for increasing temperatures to guard against outages & service interruptions.

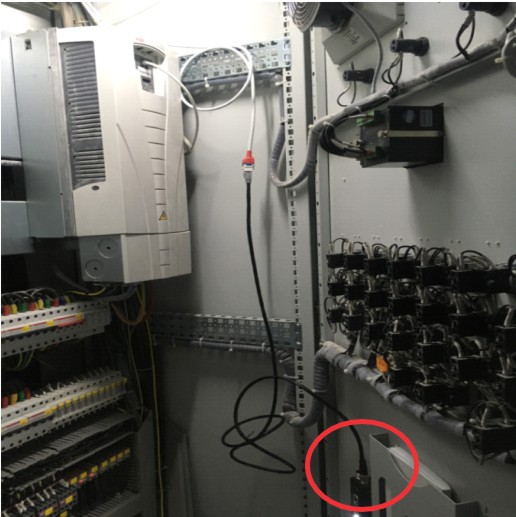

Installed inside an electrical panel or near a network equipment installation, The STP1 will monitor highest, lowest & average temperature of the entire frame/region monitored with separate alarm outputs set by an operator.

The STP1 Compact Thermal camera will detect the minutest in temperature variations as low as 0.04°C & present a thermal heat map on a display device with temp range of -20°C ~ 550°C which makes it useful in detecting electrical faults at an early stage, before its too late.

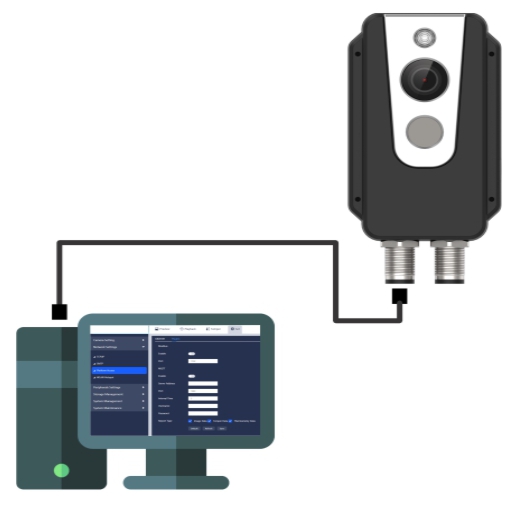

The STP1 can be accessed remotely by any smart device with the help of provided web terminal software. Supports multi protocol access to industrial or IOT systems. It is possible to connect up to 32 STP1 Camera devices for enhanced monitoring.

The STP1 is easy to install – Powered over ethernet (POE) and is provided with an additional cable for connectivity.

Read more »
Request Quote
STP1 Compact Thermal Image + Visible Light Camera
Features
  • The STP1 measures only 109 x 55.9 x 29.5mm, making it easy to install in space-constrained areas.
  • Able to capture temperature of 0.04°C
  • Resolution- 256X192
  • Thermal Sensitivity (NETD) <40mK
  • Dual-spectrum Vision Imaging modes- Thermal imaging, Dual spectrum fusion, PIP, visible imaging
  • 18 color Paletts
  • 11h Ultra-long Battery Life
  • Temperature measurement range: -20℃~550℃
Specification

Detector type

Vox, Uncooled FPA detector

Detector resolution

256 x 192

Spectral band

8~14μm

Pixel size

17μm

Thermal sensitivity (NETD)

40mK

Fov

56° x 42°

Frame rate

30Hz

Measurement range

-20°~+550°

Measurement accuracy/resolution

±2°C  or  ±2% /  0.1°C

Visible camera resolution

2MP, 1080P (1024x768)

Image viewing modes

Thermal image, visible image, dual-spectrum fusion, DDE, and parallel display of visible light images are supported

Online viewing

Web management interface

Internal memory

32GB, stores thermal & visible Images

LAN protocols

TCP, UDP, RTSP, HTTP, SMTP

Connectivitiy protocols

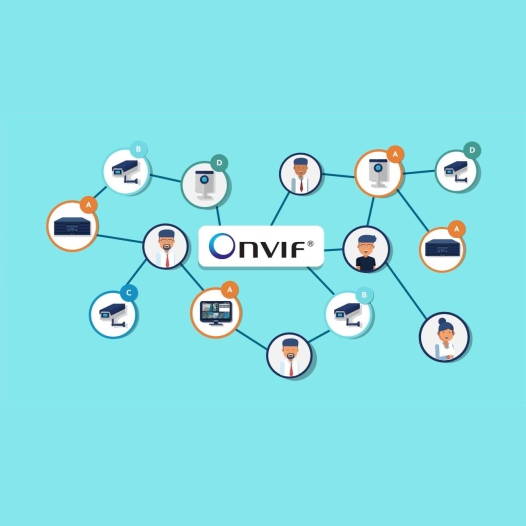

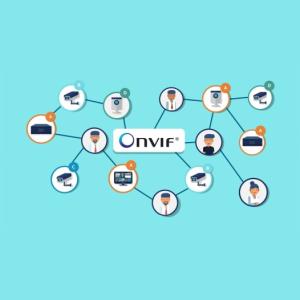

ONVIF, GB28181, Modbus, TCP, MQTT

Alarm mode

I/O Alarms

Alarm output

I/O output, image/video storage, file sending (FTP), E-mail (SMTP), flashing light alarm

Video/Image format

Mp4, JPG

Power supply

12 ~ 30VDC / POE supported

Internal interface

1 X M12 8 Pin RJ45 GBE to Switch or PC, 1 x M12 12 pin contains 1 x DC, 1x alarm input, 1 x alarm output, hotspot

Environmental

IP67 water/dust rated, 2G Vibration

Operating/storage temp range

-10°C ~ 50°C / -40°C ~ 70

EMC

IEC 61000-4-2(anti-interference)  IEC 61000-4-3(anti-radiation)

Shock/ vibrations

25G IEC68-2-29  ;  2G IEC68-2-6

Certifications

CE/FCC/RoHS

Dimension

109×55.9×29.5mm
FAQ
Downloads
Title File Type File Size Downloads View Last Uploaded
Product Datasheet application/pdf 533.28 KB Download View February 20 2023 17:38:35
