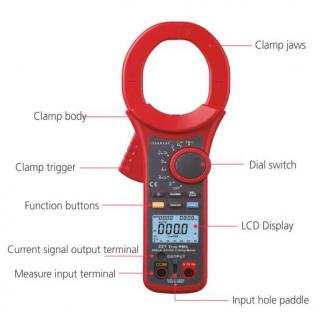

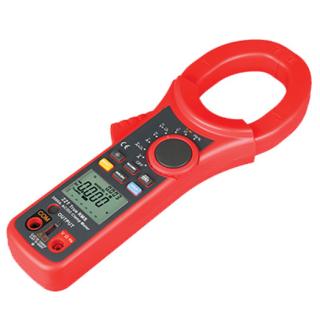

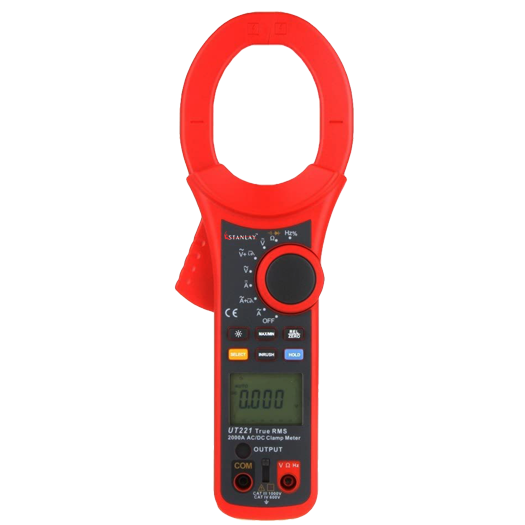

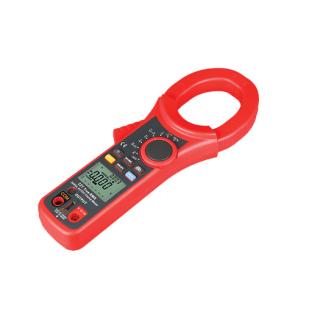

2000A AC/DC Clamp Meter 221

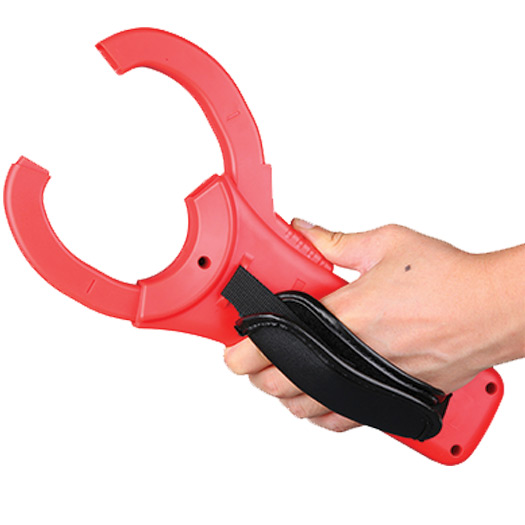

221 mid-range 2000A AC/DC digital clamp meter which ensures stable performance, safety and reliability for measuring up to 2000A AC and DC current. It is designed with over-load protection for all ranges, perfect for professionals measuring high currents. It sports a large jaw of 63mm to allow use on thicker wires.

Specifications
Product Specification

Auto Range

√

True RMS (AC Voltage/AC Current)

√

Display Count

6000

Jaw Size

63mm

Measurements

Range

Accuracy

AC Current (A)

2000A

± (2.5%+5)

DC Current (A)

2000A

± (2.5%+5)

AC Voltage (V)

750V

± (1.2%+5)

DC Voltage (V)

1000V

± (0.8%+1)

Resistance (Ω)

66MΩ

± (1%+2)

Frequency (Hz)

20MHz

± (0.1%+3)

Other Features

Duty Cycle

√

Diode Test

√

Continuity Buzzer

√

Low Pass Filter

√

Inrush Current

√

Relative Mode

√

Data Hold/Max

√

MIN/I-OUT Function

√

Analog Bar Graph

66 Data Sets

Full Icon Display

√

Low Battery Indication

√

Input Impedance ≥10mΩ

√

Category Safety Ratings

CAT III 1000V, CAT IV 600V

General Characteristics



Power

9V Battery (6F22)

Display

43mm x 30mm

Product Net Weight

726g

Product Size

298mm x 107mm x 47mm

Standard Accessories

Test Leads, Output Cable
Features
Features
  • AC/DC current measurement, Data hold, LCD backlight
  • True RMS, Auto range
  • MAX/MIN/REL modes, Zero mode
  • Inrush current Low pass filtering, Analog bar graph
  • The current signal can be converted to a voltage signal output signal


FAQ
FAQ
Frequently Asked Questions (3 answered questions)

up to 6000 display count.

Person name: Asian

2000A AC and 2000A DC.

Person name: Asian

(±2.5%+5)

Person name: Asian



Product Info Downloads
Product Info Downloads

Product Information files contain the essential technical detail you need to make informed decisions on any particular product. Simply click on a title to download a PDF copy of that file. If you wish a hard copy of a brochure, technical advice on any product or a demonstration then please contact us. We're always happy to help!

Title
File Type
File Size
Last Uploaded
Product Datasheet
application/pdf
485.24 KB
October 25 2019 11:04:58
